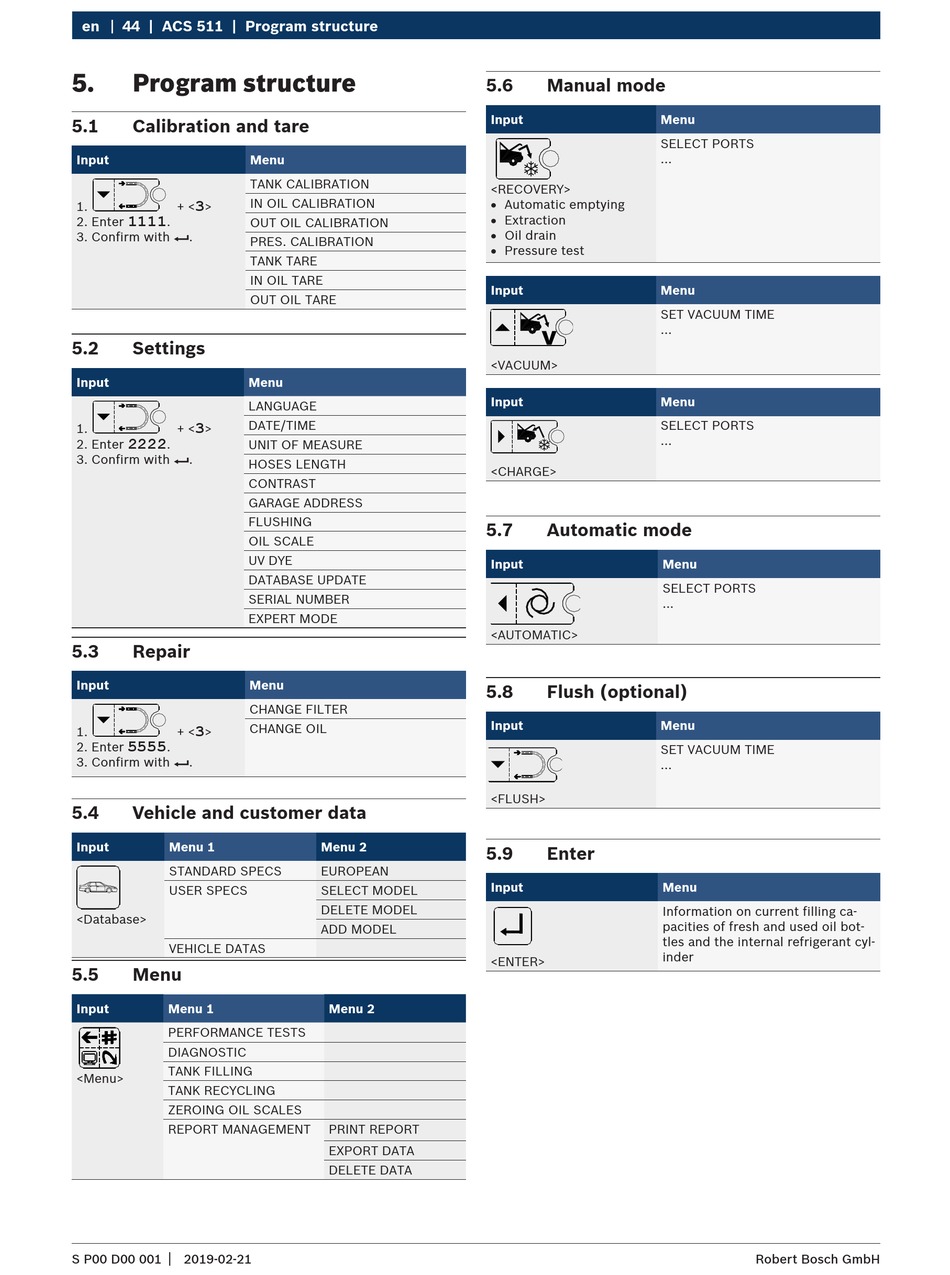

en 44 | ACS 511 | Program structure
5. Program structure
5.1 Calibration and tare
Input Menu
TANK CALIBRATION
3
IN OIL CALIBRATION
1. + < >
1111
2. Enter . OUT OIL CALIBRATION
3. Confirm with E.
PRES. CALIBRATION
TANK TARE
IN OIL TARE
OUT OIL TARE
5.2

Settings

Input Menu
LANGUAGE
3
DATE/TIME
1. + < >
2222
2. Enter . UNIT OF MEASURE
3. Confirm with E.
HOSES LENGTH
CONTRAST
GARAGE ADDRESS
FLUSHING
OIL SCALE
UV DYE
DATABASE UPDATE
SERIAL NUMBER
EXPERT MODE
5.3 Repair
Input Menu
CHANGE FILTER
3
CHANGE OIL
1. + < >
5555
2. Enter .
3. Confirm with E.
5.4 Vehicle and customer data
Input Menu 1
STANDARD SPECS
USER SPECS
<Database>
VEHICLE DATAS
5.5 Menu
Input Menu 1
PERFORMANCE TESTS
DIAGNOSTIC
TANK FILLING
<Menu>
TANK RECYCLING
ZEROING OIL SCALES
REPORT MANAGEMENT
|
S P00 D00 001 2019-02-21
5.6
Input
<RECOVERY>
R Automatic emptying
R Extraction
R Oil drain
R Pressure test
Input
<VACUUM>
Input
<CHARGE>
5.7
Input
<AUTOMATIC>
5.8
Input
<FLUSH>
Menu 2
5.9
EUROPEAN
Input
SELECT MODEL
DELETE MODEL
ADD MODEL
<ENTER>
Menu 2
PRINT REPORT
EXPORT DATA
DELETE DATA

Manual mode

Menu
SELECT PORTS
...
Menu
SET VACUUM TIME
...
Menu
SELECT PORTS
...
Automatic mode
Menu
SELECT PORTS
...
Flush (optional)
Menu
SET VACUUM TIME
...
Enter
Menu
Information on current filling ca-
pacities of fresh and used oil bot-
tles and the internal refrigerant cyl-
inder
