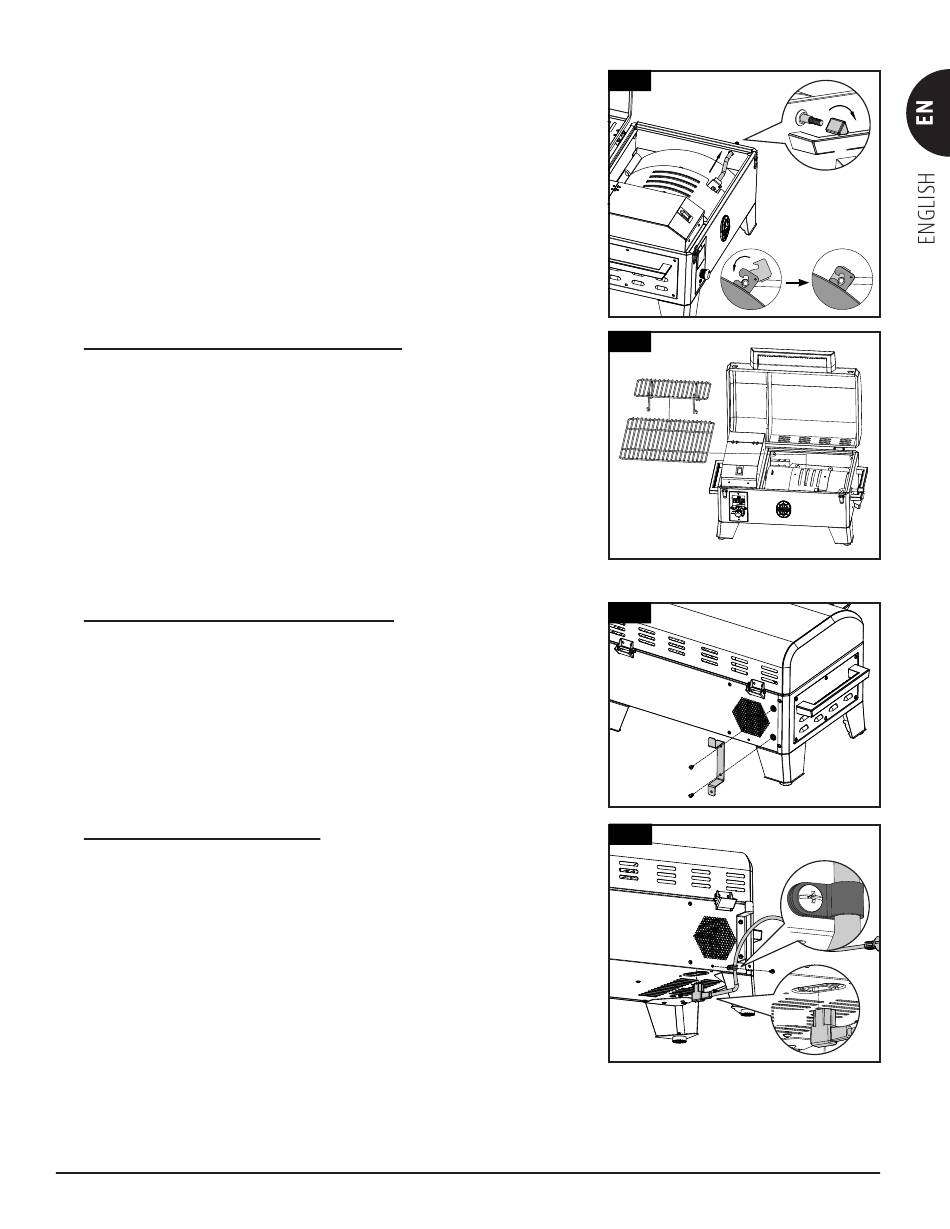

• Next, remove the Flame Broiler Adjusting Bar Handle from the Flame
Broiler Adjusting Bar. Insert the Flame Broiler Adjusting Bar through
the opening hole on the right side of the Main Barrel. Add the Flame
Broiler Adjusting Bar Handle back onto the end outside the barrel.
Next, slide the notched end of the Adjusting Bar into the locking tab
on the Flame Broiler Slider, giving you adjustable access to the Flame
Broiler Slider on the Main Plate. Note steps in 4C.
NOTE: When the Flame Broiler Slider is open and direct flame is used,
do not leave the grill unattended for any period of time.

5. INSTALLING THE COOKING COMPONENTS

Parts Required:
1 x Upper Cooking Rack (#1)
1 x Cooking Grid (#2)
Installation:
• Place the Cooking Grid on the ledge inside the Main Grill.
• Position the Upper Cooking Rack onto the Cooking Grid. The Upper
Cooking Rack can be placed as desired.
NOTE: To maintain the searing and grilling performance of your
cooking grids, regular care and maintenance Is required.

6. MOUNTING THE POWER CORD BRACKET

Parts Required:
1 x Power Cord Bracket (#10)
Installation:
• Remove the two pre-installed screws from the back panel of the unit.
Secure the Power Cord Bracket to the corner by using the two screws
previously removed.

7. INSTALLING THE POWER CORD

NOTE: There are two Power Cords supplied. Select the Power Cord that is
required for your region.
Parts Required:
1 x Power Cord Clip (#15)
1 x Power Cord (#16 or #17)
Installation:
• Place the Power Cord Clip on the Power Cord. Then, insert the Power
Cord into the groove at the bottom of the unit. Note 7A.
• Secure the Power Clip to the rear panel using the pre-installed screw
below the air vent. Note 7B.
4C
A
B
5
1
2
6
10
7
16/17
7A
6
5
7B
15
9
