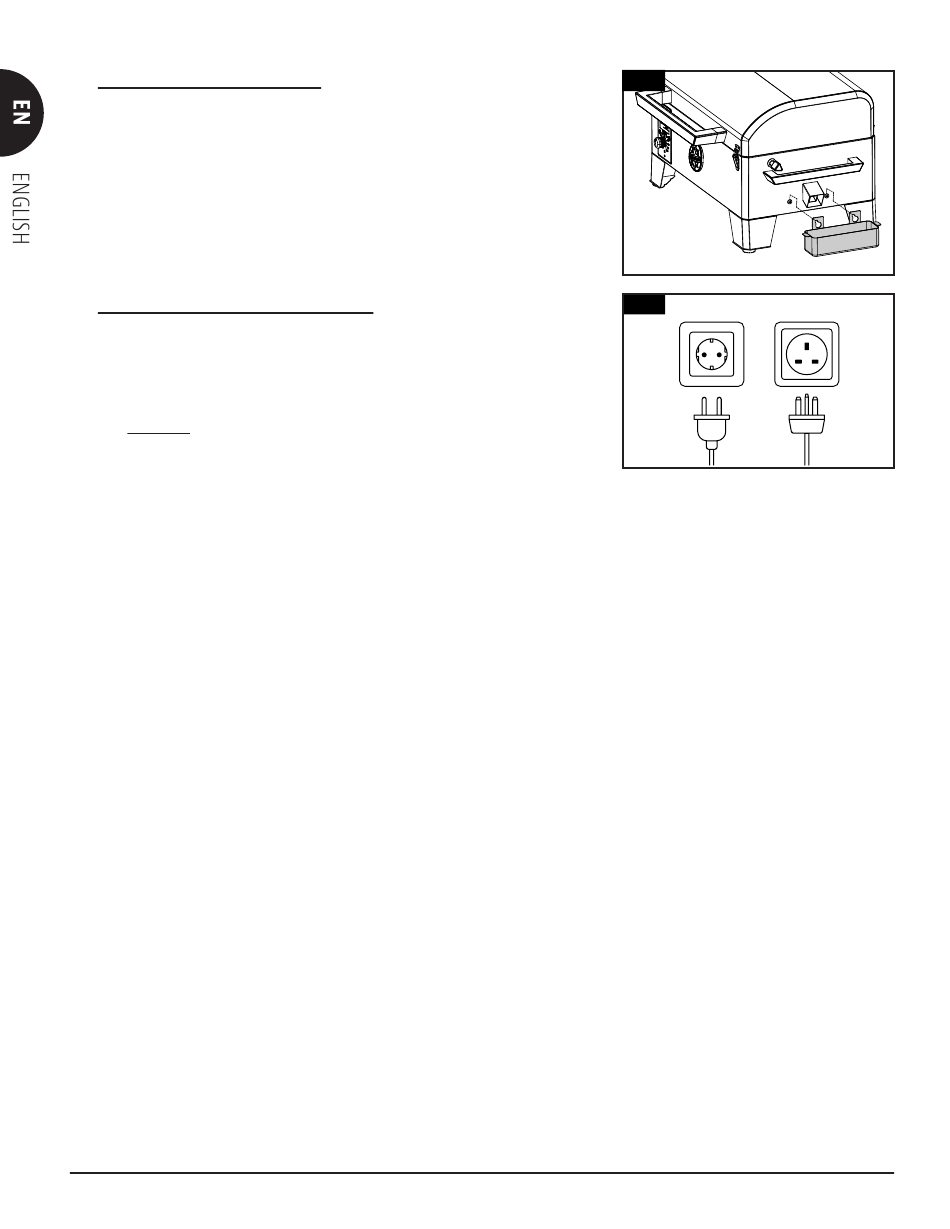

8. ATTACHING THE GREASE CUP

Parts Required:
1 x Grease Cup (#12)
Installation:
• Place the Grease Cup on the two screws of the pre-mounted screws of
the Main Barrel side panel. Press down firmly to ensure it is level on
the screws to avoid grease spills.
• The unit is now completely assembled.

9. CONNECTING TO A POWER SOURCE

NOTE: Before plugging your Pit Boss® into any electrical outlet,
ensure the temperature dial is in the OFF position.
STANDARD OUTLET
•
This appliance requires 220-240 volt, 50 hz, 220 w. It must be a 3-prong
grounded plug. Ensure grounded end is not broken off before use. The
control uses a 220-240 volt and fast-blow fuse to protect the board
from the ignitor.
ON THE ROAD
•
Disconnect the igniter from the main wiring harness. Use the manual
start-up procedure. A Pit Boss® unit can operate using a 12 volt,
100 watt inverter plugged into your automobile outlet. To use the
automatic igniter, it is recommended to use a minimum of a 1000 watt
inverter.
IMPORTANT: Disconnect unit from power source when not in use.
