Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister pack
after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the grill before
assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not attempt to
assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Customer Service for parts: Monday
through Sunday, 4am - 8pm PST (EN/FR/ES).
service@pitboss-grills.com | Toll-Free: 1-877-303-3134 | Toll-Free Fax: 1-877-303-3135
IMPORTANT: To ease installation, using two people is helpful (but not necessary) when assembling this unit.
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed.

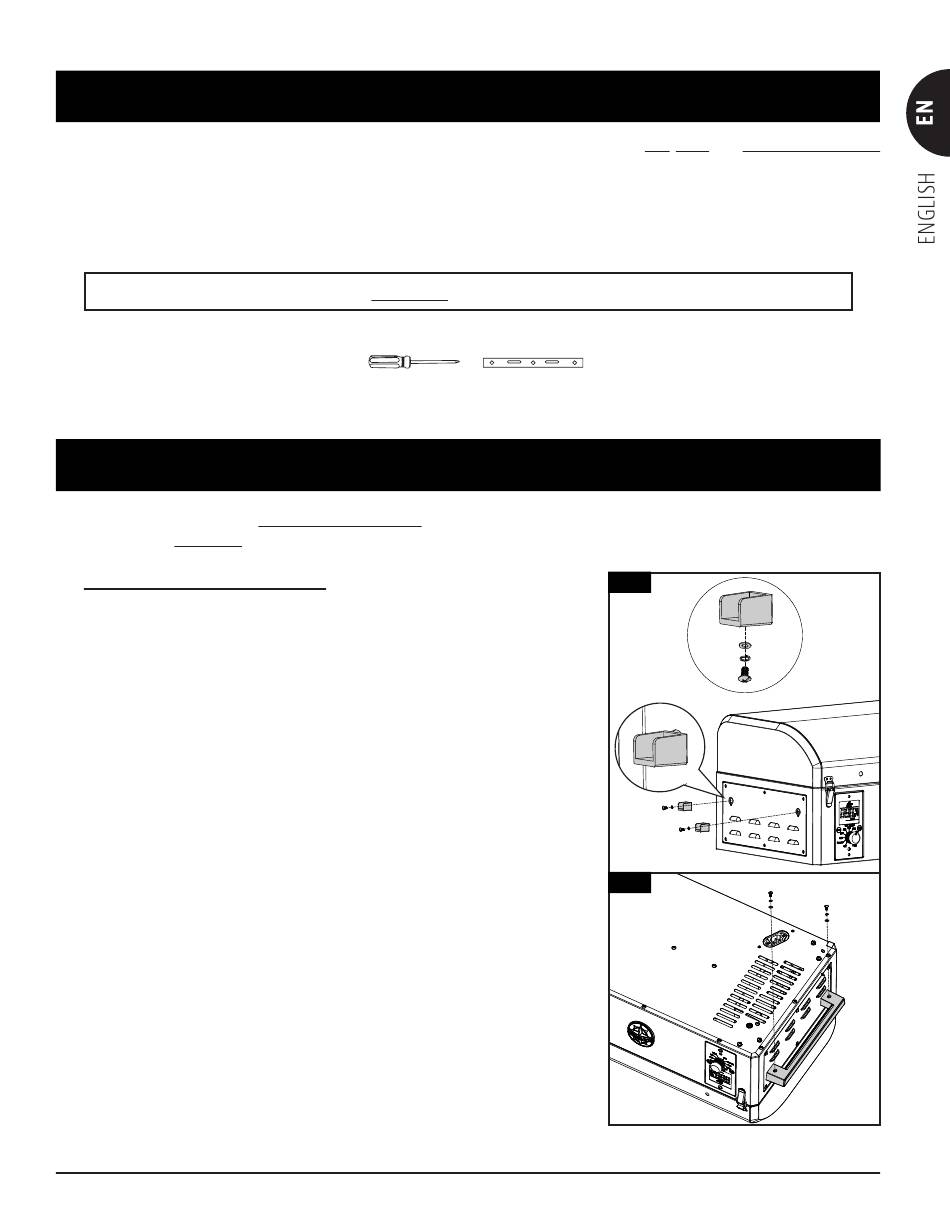

1. INSTALLING THE SIDE HANDLES

Parts Required:
4 x Side Handle Bracket (#7)
2 x Side Handle (#8)
1 x Main Barrel/ Hopper Assembly (#9)
Installation:
• Place a piece of cardboard on the floor to prevent scratching the unit
and parts during assembly. Remove all the parts from inside the lid.
• Remove the pre-installed screws, locking washers and washers from
the four Side Handle Brackets. Set aside.
• Remove the two pre-installed screws from the left side panel of the
unit (on the hopper access panel). Secure two Side Handle Brackets to
the left side panel using the same screws just removed. Repeat same
installation for right side panel of the unit with the two other Side
Handle Brackets. Note illustration 1A.
• Next, carefully flip the unit upside-down. Install each Side Handle
into the Side Handle Brackets using the screws, locking washers, and
washers previously removed from the Side Handle Brackets. Note
illustration 1B.

ASSEMBLY PREPARATION

Tools required for assembly: screwdriver and level. Tools not included.

ASSEMBLY INSTRUCTIONS

1A
7
1B
9
8
7
