6.2 Drilling the piping, condensation hose and cable feed-through.

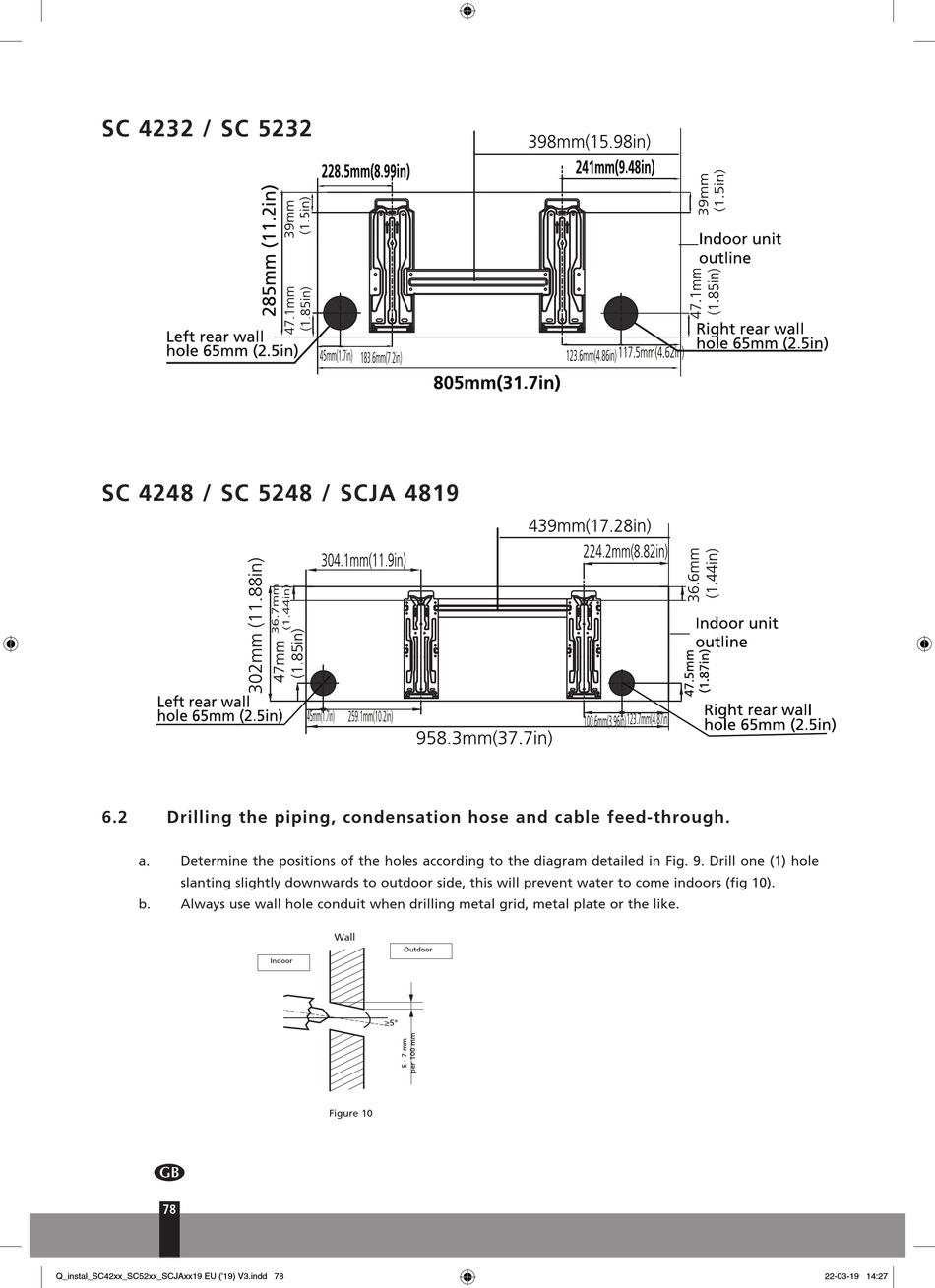

a. Determine the positions of the holes according to the diagram detailed in Fig. 9. Drill one (1) hole
slanting slightly downwards to outdoor side, this will prevent water to come indoors (fig 10).
b. Always use wall hole conduit when drilling metal grid, metal plate or the like.
