Connecting The Electrical Cables For The Interior Unit - Qlima SC42 Serie Installationshandbuch

Y/G
N
L
S
Y/G
2(N)
1(L)
W
Outdoor unit

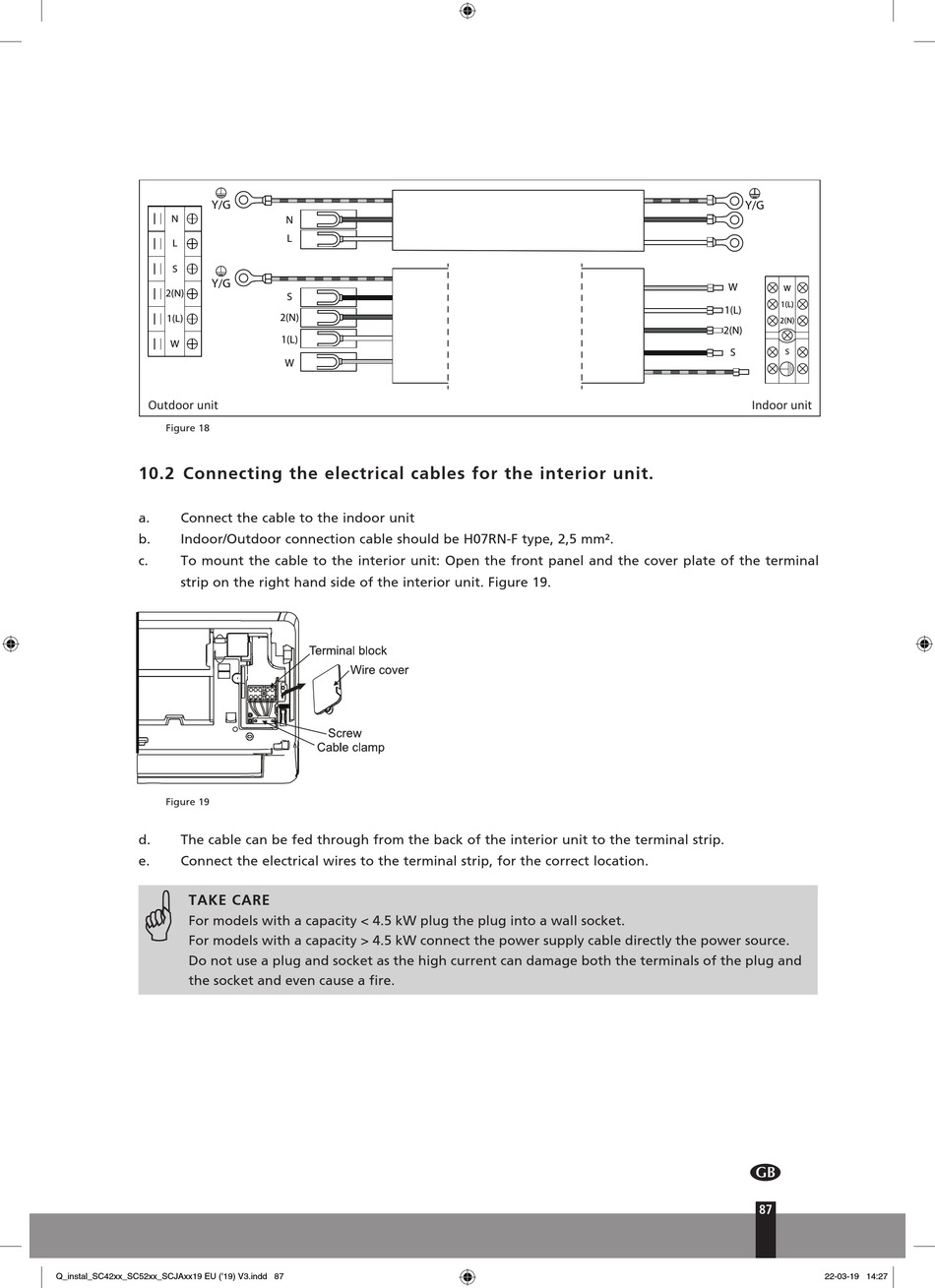

Figure 18
10.2 C onnecting the electrical cables for the interior unit.
a. Connect the cable to the indoor unit
b. Indoor/Outdoor connection cable should be H07RN-F type, 2,5 mm².
c. To mount the cable to the interior unit: Open the front panel and the cover plate of the terminal
strip on the right hand side of the interior unit. Figure 19.
Figure 19
d. The cable can be fed through from the back of the interior unit to the terminal strip.
e. Connect the electrical wires to the terminal strip, for the correct location.
G
TAKE CARE
For models with a capacity < 4.5 kW plug the plug into a wall socket.
For models with a capacity > 4.5 kW connect the power supply cable directly the power source.
Do not use a plug and socket as the high current can damage both the terminals of the plug and
the socket and even cause a fire.
