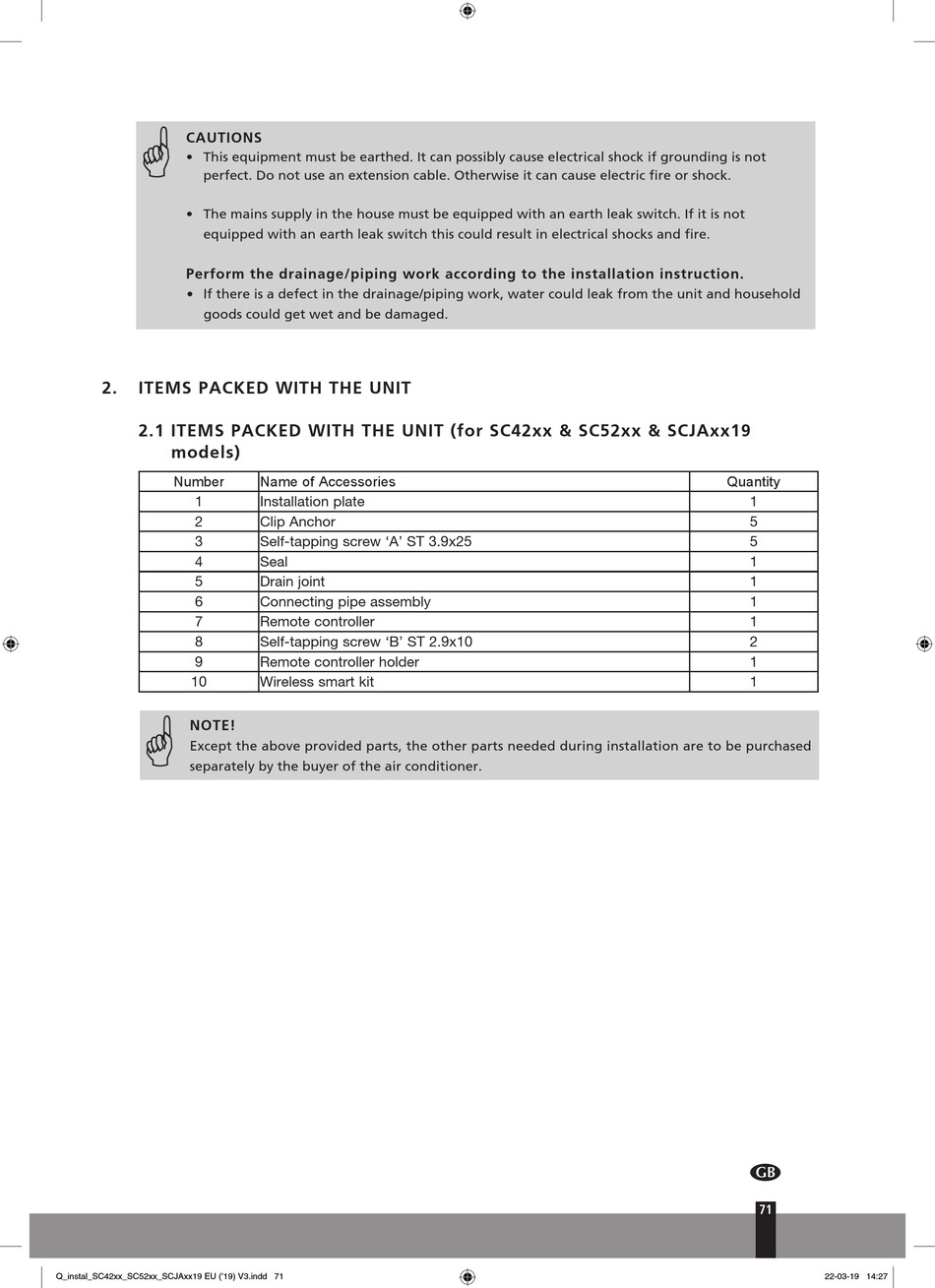

Qlima SC42 Serie Installationshandbuch Seite 71

G
CAUTIONS
• This equipment must be earthed. It can possibly cause electrical shock if grounding is not
perfect. Do not use an extension cable. Otherwise it can cause electric fire or shock.
• The mains supply in the house must be equipped with an earth leak switch. If it is not
equipped with an earth leak switch this could result in electrical shocks and fire.
Perform the drainage/piping work according to the installation instruction.
• If there is a defect in the drainage/piping work, water could leak from the unit and household
goods could get wet and be damaged.
2. ITEMS PACKED WITH THE UNIT
2 .1 I TEMS PACKED WITH THE UNIT (for SC42xx & SC52xx & SCJAxx19
models)
Number
1
2
3
4
5
6
7
8
9
10
G
NOTE!
Except the above provided parts, the other parts needed during installation are to be purchased
separately by the buyer of the air conditioner.
Q_instal_SC42xx_SC52xx_SCJAxx19 EU ('19) V3.indd 71
Name of Accessories
Installation plate
Clip Anchor
Self-tapping screw 'A' ST 3.9x25
Seal
Drain joint
Connecting pipe assembly
Remote controller
Self-tapping screw 'B' ST 2.9x10
Remote controller holder
Wireless smart kit
Quantity
1
5
5
1
1
1
1
2
1
1
4
