Installing the return adapter
1. Screw the coupling nipple (Fig. 2, item 1) into the
adapter (Fig. 2, item 2) with the flat sealing ring
(A10 x 13.5) and tighten it.
2. Insert the o-ring (Fig. 2, item 3) into the slot.
1
2
3
458909-01_Pal

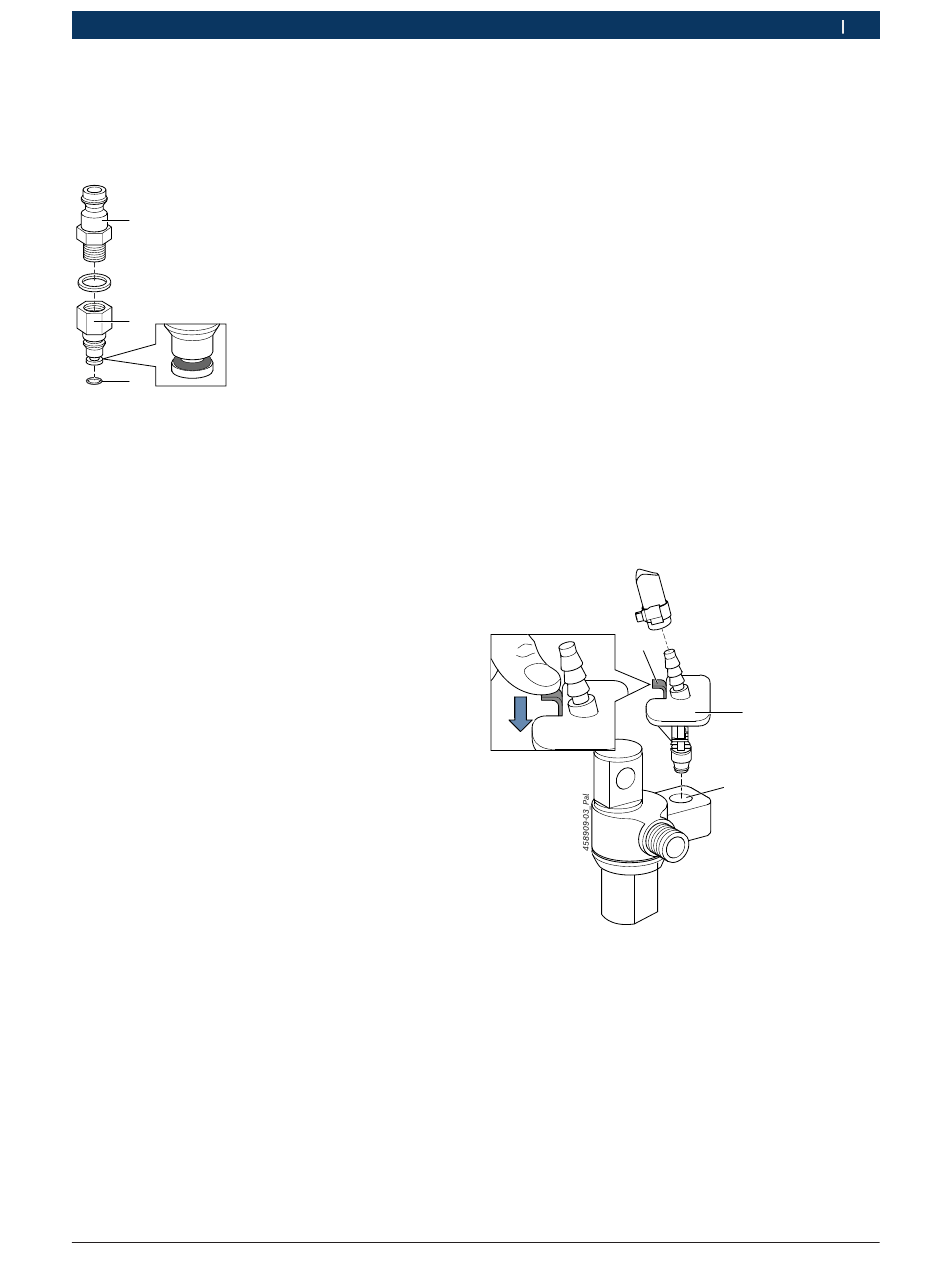

Fig. 2: Installing the return adapter 1 687 016 138
Robert Bosch GmbH
Product description | 1 687 205 016 | 15
3.6.2 Return adapter 1 683 356 137 for Delphi CRI
The return adapter 1 683 356 137 (Fig. 3, item 1)
connects the return line of the Delphi CRI (Fig. 3,
item 2) to the return quantity test connection on
the EPS 200 / EPS 205 using the hose assemblies
1 680 712 249 and 1 680 712 289.
!
Before using the return adapter, check the O-ring
for damage. Change a defective or brittle O-ring.
Detached bits of the O-ring will damage the injec-
tor or the EPS 200 / EPS 205.
i
Secure the return adapter by pressing down the tab
(Fig. 3, item 3). To remove it, pull the tab up and
remove the return adapter from the return connec-
tion.
i
The hose assemblies 1 680 712 249 and
1 680 712 289 are included in the accessory set
1 687 010 399.
i
The included cover caps can be used to keep the
return adapters dust-free during storage.
3
Fig. 3: Return adapter 1 683 356 137
1 Return adapter 1 683 356 137
2 Return connection of the injector
3 Tab
en
1
2
|
