14 | 1 687 205 016 | Product description

3.4

Training

The supplementary equipment set 1 687 205 016
is designed for personnel trained in the use of
EPS 200 / EPS 205 and familiar with injector testing in
diesel workshops. They must have completed a train-
ing course on "Testing and repairing CRIs and piezo
CRIs" at the AA training center. The operating instruc-
tions must be thoroughly read and observed for your
own safety and to prevent damage to the equipment
through improper handling.
3.5

Scope of delivery

Designation
1x return adapter for Delphi injectors
1x return adapter for Delphi injectors
Return adapter parts set for Siemens / VDO
/ Continental with
R 1x adapter
R 1x coupling nipple
R 1x flat sealing ring A10 x 13.5
R 1x O-ring 3.5 x 1.25
1x adapter cable for Denso injectors
1x adapter cable for Denso injectors
1x adapter cable for Delphi injectors
|
1 689 989 314 2021-03-18
3.6
3.6.1
The return adapter 1 687 016 138 (Fig. 1, item 1) con-
nects the return line of the Siemens / VDO / Continen-
tal piezo CRI (Fig. 1, item 2) to the return quantity test
connection on the EPS 200 / EPS 205 using the hose
assembly 1 680 712 289.
!
Before using the return adapter, check the O-ring
for damage. Change a defective or brittle O-ring.
Detached bits of the O-ring will damage the injec-
tor or the EPS 200 / EPS 205.
Order number
i
Secure the return adapter using the locking clamp
1 683 356 137
(Fig. 1, item 3). The locking clamp comes with the
1 683 356 138
injector.
1 687 016 138
i
The hose assembly 1 680 712 289 is included in
the accessory set 1 687 010 399.
1 684 465 800
1 684 465 801
1 684 465 808
3

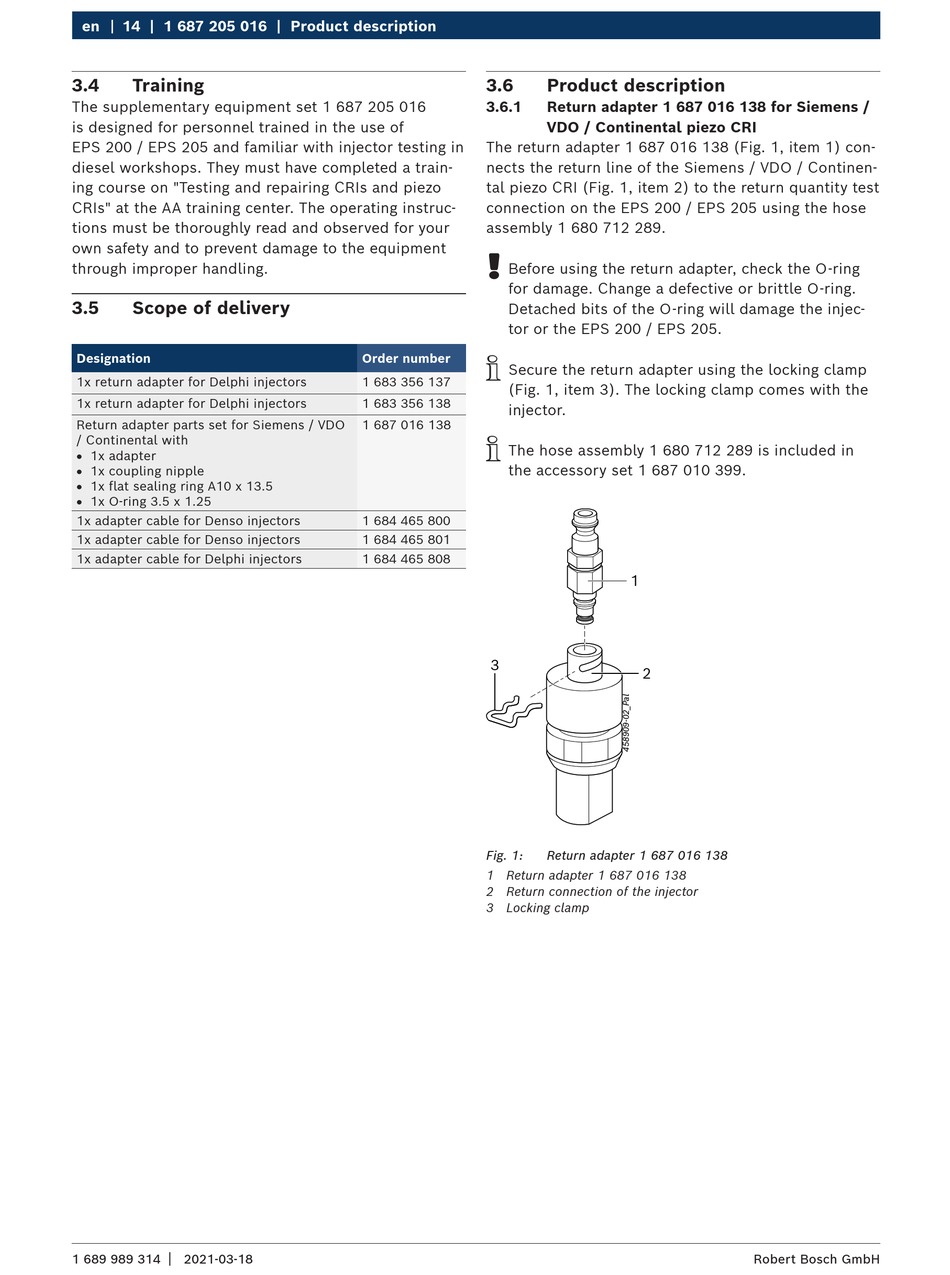

Fig. 1:
1 Return adapter 1 687 016 138
2 Return connection of the injector
3 Locking clamp
Product description
Return adapter 1 687 016 138 for Siemens /
VDO / Continental piezo CRI
1
2
Return adapter 1 687 016 138
Robert Bosch GmbH
