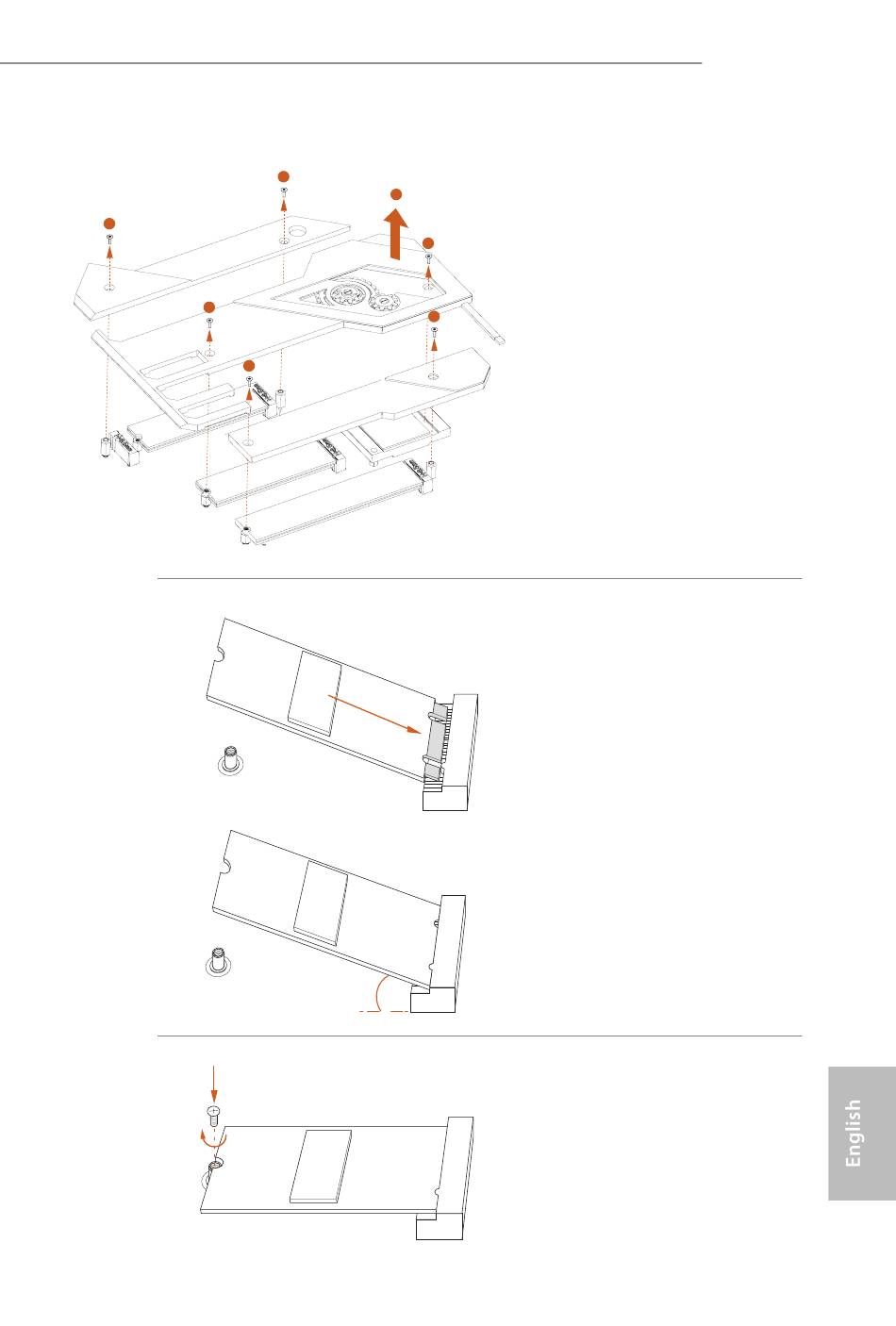

Step 3
1
Before installing a M.2 (NGFF) SSD
2
module, please loosen the screws to
1
remove the M.2 heatsink.
1
*Please remove the protective films
on the bottom side of the M.2
1
heatsink before you install a M.2
1
SSD module.
1
Step 4
Align and gently insert the M.2
(NGFF) SSD module into the M.2
slot. Please be aware that the M.2
(NGFF) SSD module only fits in one
orientation.
A
A
20
o
Step 5
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw
as this might damage the module.
