2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The Ultra M.2 Socket (M2_1) supports type 2280 M.2 PCI Express module up to Gen3 x4 (32
Gb/s).
Installing the M.2_SSD (NGFF) Module
No.
Nut Location
PCB Length
Module Type
38
1
A
8cm
Type2280

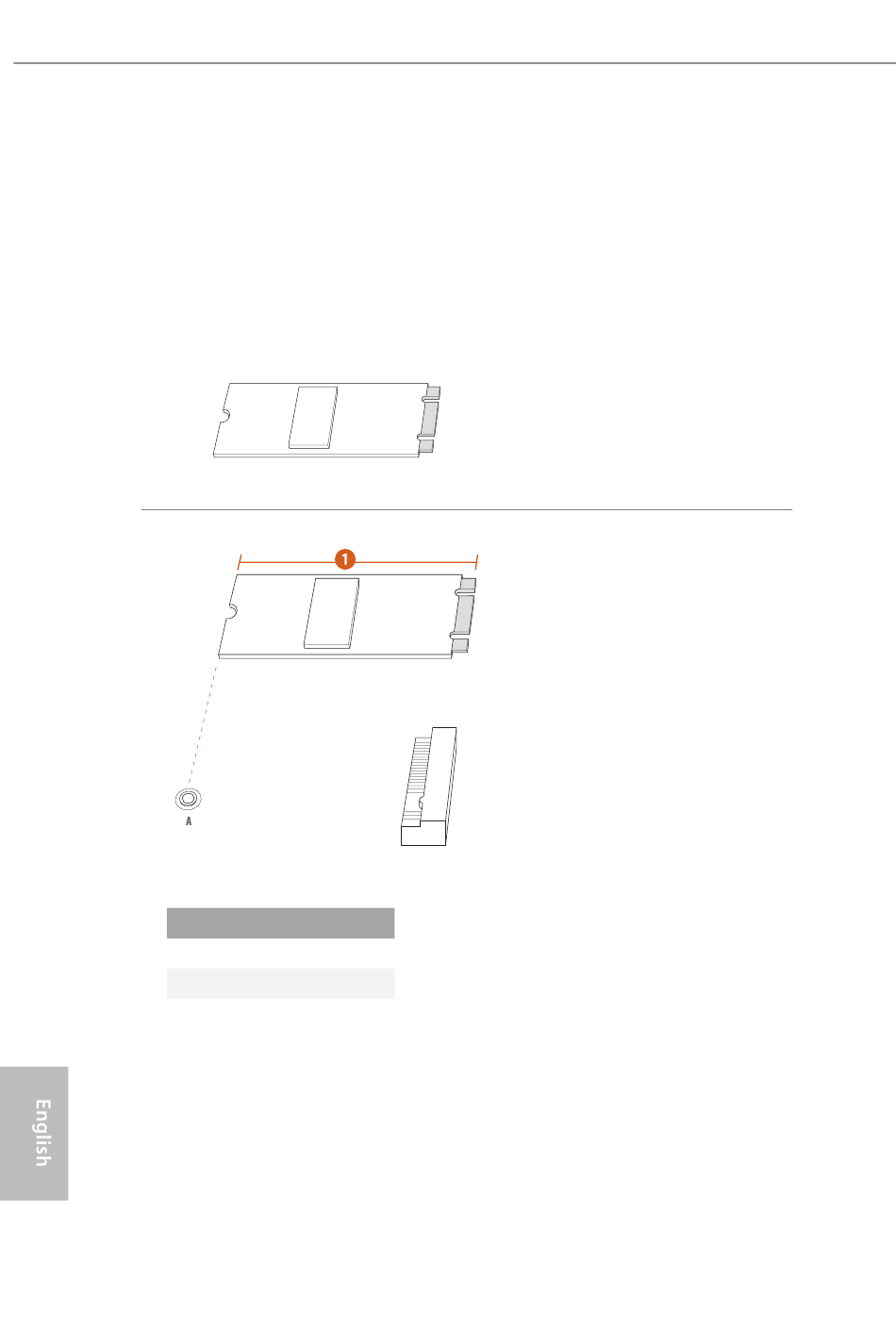

Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
