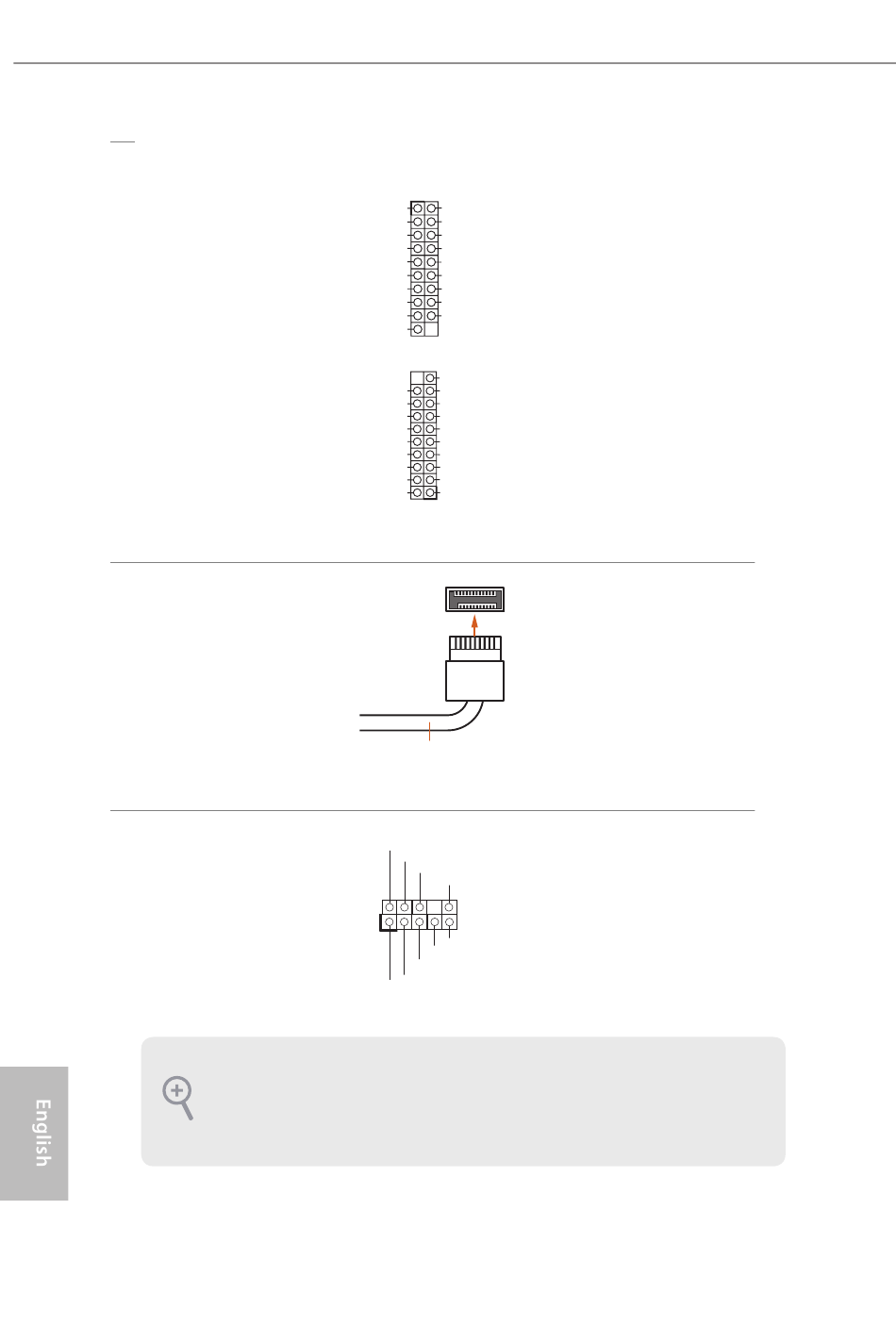

USB 3.2 Gen1 Headers
(19-pin USB3_6_7)
(see p.1, No. 10)
(19-pin USB3_8_9)
(see p.1, No. 9)
Front Panel Type C USB
3.2 Gen2 Header
(20-pin USB31_TC_2)
(see p.1, No. 12)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 34)
High Definition Audio supports Jack Sensing, but the panel wire on the chassis must sup-
port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
26
1
Dummy IntA_PA_D+
IntA_PB_D+ IntA_PA_D-
IntA_PB_D- GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX- GND
GND IntA_PA_SSRX+
IntA_PB_SSRX+ IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus V
Vbus V
Vbus Vbus
Vbus IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PA_SSRX+ GND
IntA_PB_SSTX-
GND
IntA_PA_SSTX-
IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND IntA_PB_D-
IntA_PA_D- IntA_PB_D+
IntA_PA_D+ Dummy
1
USB Type-C Cable
GND
PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
There are two headers on
this motherboard. Each
USB 3.2 Gen1 header can
support two ports.
There is one Front
Panel Type C USB 3.2
Gen2 Header on this
motherboard. This header
is used for connecting a
USB 3.2 Gen2 module for
additional USB 3.2 Gen2
ports.
This header is for
connecting audio devices
to the front audio panel.
