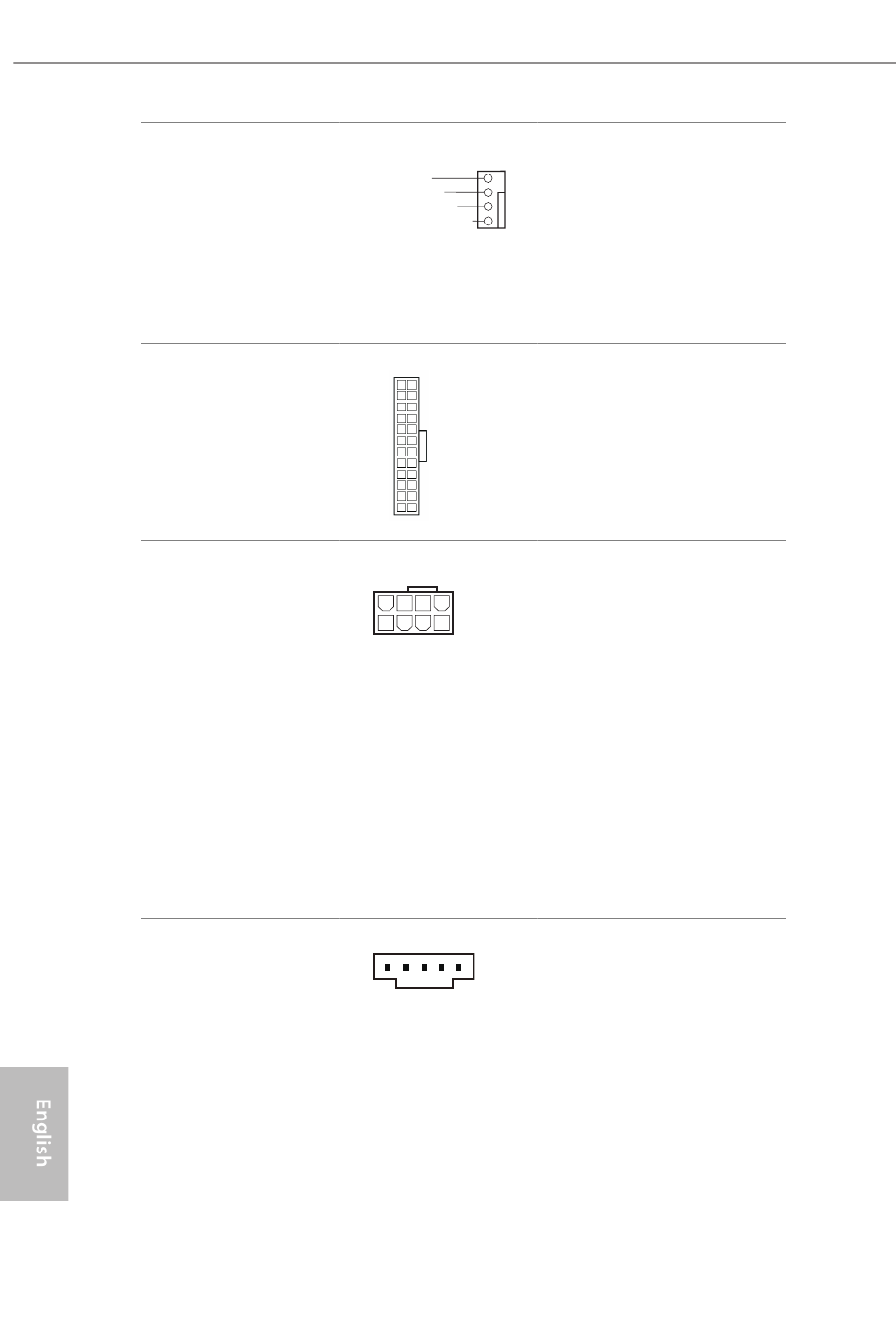

CPU/Water Pump Fan
Connector
(4-pin CPU_FAN2/
WP_3A)
(see p.1, No. 4)
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 8)
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.1, No. 1)
(8-pin ATX12V2)
(see p.1, No. 2)
Thunderbolt AIC
Connectors
(5-pin TB1)
(see p.1, No. 33)
28
FAN_SPEED_CONTROL
CPU_FAN_SPEED
FAN_VOLTAGE
GND
12 24
1 13
8 5
4 1
This motherboard
provides a 4-Pin water
4
3
cooling CPU fan
2
1
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
This motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
This motherboard
provides two 8-pin ATX
12V power connectors. To
use a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics
card. Do not plug the
PCIe power cable to this
connector.
Please connect a Thunderbolt™
add-in card (AIC) to the
Thunderbolt AIC connector via
the GPIO cable.
*Please install the Thunderbolt™
AIC card to PCIE3 (default
slot).
