K-MAR-5200 Instructions for Use

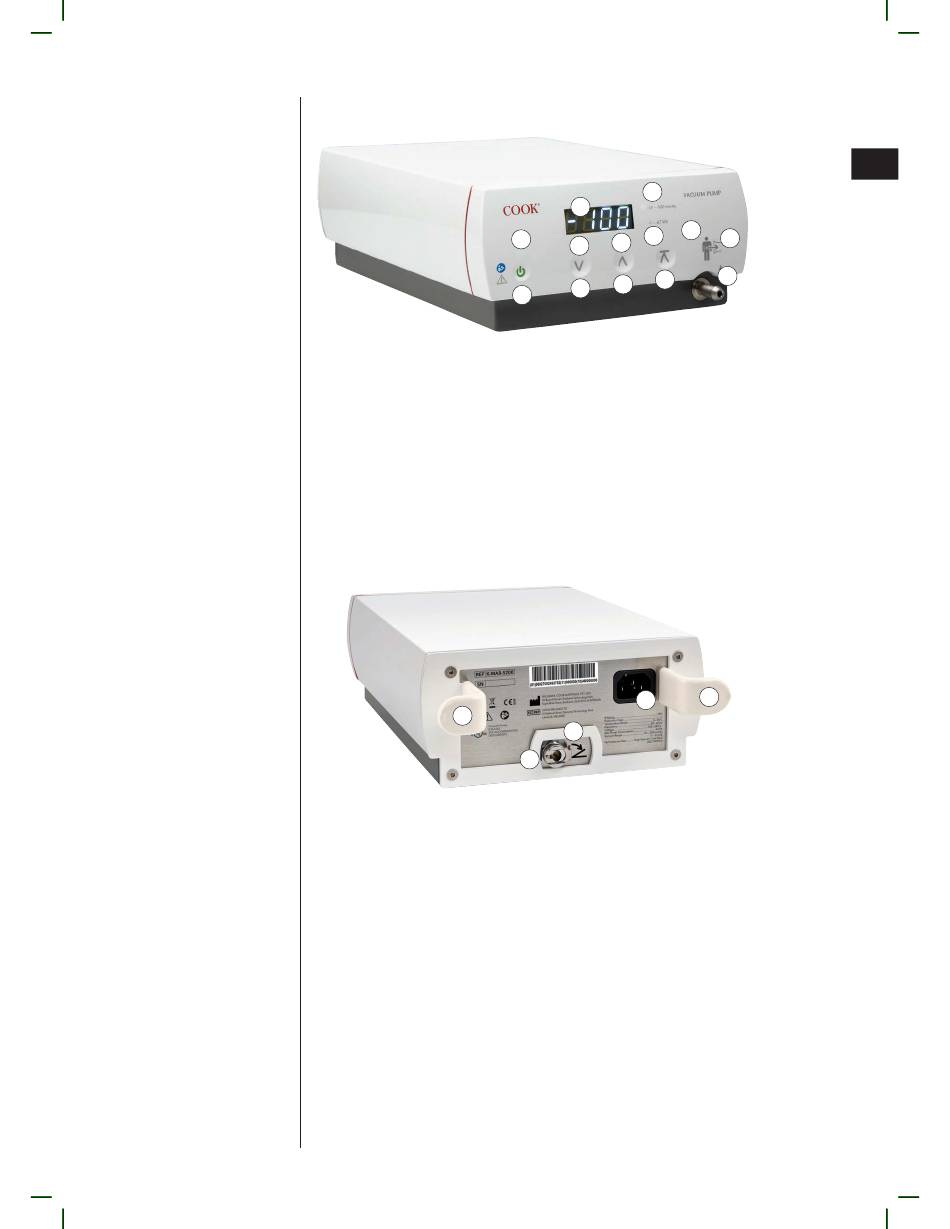

3.3 Front of the Device

1. Standby Indicator Indicates the powered on state, Green = Active, Orange = Standby.
2. Standby Touch-Pad Toggles the device between Active and Standby State.
3. Vacuum Display Displays the measured vacuum.
4. Vacuum Adjust Indicators Indicates Set-Point adjustment.
5. Vacuum Adjust Touch-Pad Decrease, Press to decrease the Vacuum Set-Point.
6. Vacuum Adjust Touch-Pad Increase, Press to increase the Vacuum Set-Point.
Boost Touch-Pad Press to boost the vacuum to -500 mmHg (-67 kPa).
7.
8. Boost Indicator Indicates the Boost Function is active.
9. mmHg Indicator Indicates that the display will show the vacuum in mmHg.
10. kPa Indicator Indicates that the display will show the vacuum in kPa.
11. Patient Tube Connection Barb fitting for connection to the Vacuum Line and Filter.
12. Vacuum Supplied Indicator Indicates that vacuum is being supplied.

3.4 Rear of the Device

1
1. Power Cord Mount Used to hold the Power Cord when the device is not in use.
2. Mains Power Inlet Connect the appropriate Power Cord to this point.
3. Foot Pedal Connection Connect the Foot Pedal to this point.
4. Release Tab Release button for Foot Pedal Connection and disconnection.
1-6
9
3
8
10
1
4
4
7
6
5
2
2
4
3
