K-MAR-5200 Instructions for Use
WARNING: ELECTRIC SHOCK
HAZARD. Internal circuitry is energised
whenever the Vacuum Pump is
connected to mains power irrespective
of whether the device is on or in
standby.

3.10 Activating the Device

• Connect the Power Cord to the Power Inlet. The Standby Indicator should light up.
• The Vacuum Pump will either be in the standby mode or active mode depending on the last state the device was
in when mains power was disconnected.
• If the Vacuum Pump is in standby, press the Standby Touch-Pad to put the device into an active state.

3.11 Vacuum Setting Adjustment

• Press and hold the appropriate Adjust Vacuum Touch-Pad.
• The vacuum will adjust in 1 mmHg or 0.1 kPa steps depending on the Display Units Setting.
• The selected value appears in the Vacuum Display.
• When the desired vacuum is reached release the Touch-Pad.

3.12 Set Display Units

The measurement units that the Vacuum Pump can display are mmHg and kPa. This setting is indicated by either
the mmHg Indicator being lit or the kPa Indicator being lit.
The factory setting is mmHg.
To change this setting:
1. Ensure that the device is in standby mode by using the Standby Touch-Pad.

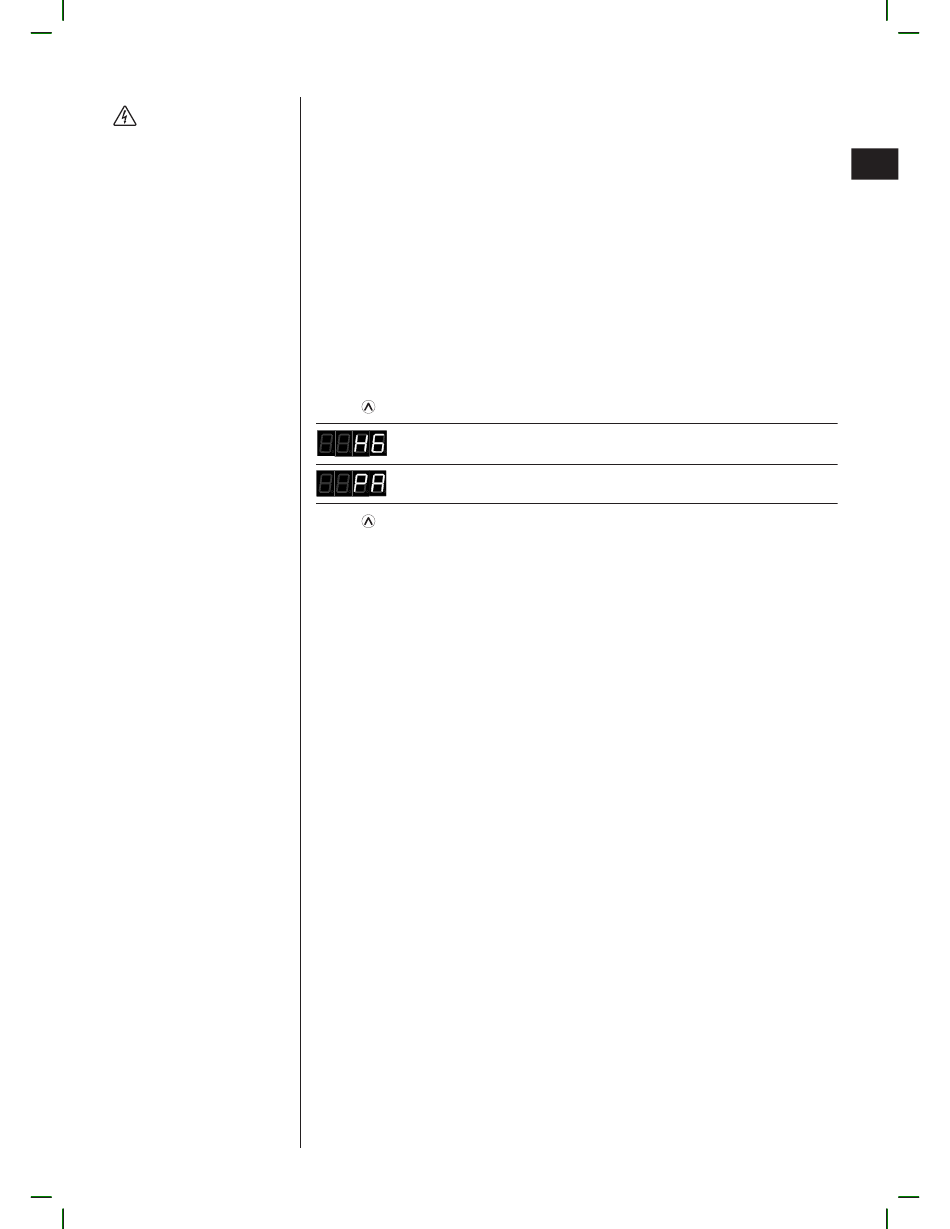

2. Press Adjust Vacuum Touch-Pad Increase once, the Vacuum Display will flash up either:
Indicates mmHg Mode
Indicates kPa Mode
3. Press Adjust Vacuum Touch-Pad Increase again to toggle between mmHg mode and kPa mode.
4. Once the desired setting is achieved, switch the device into active mode.
5. The appropriate indicator should now be lit up.
6. The device should be displaying in the appropriate units.

3.13 Foot Pedal Function

The Vacuum Pump has two Foot Pedal settings, Latching and Non–Latching.
The factory setting is Non–Latching.
To determine the setting of the device depress the Foot Pedal and observe the behaviour of the device.

3.13.1 Non-Latching Foot Pedal Function

• Press and hold the Foot Pedal.
• The vacuum is applied and a chime sounds every few seconds until the Foot Pedal is released.
• Release the Foot Pedal.
• The vacuum is disconnected and the suction stops.

3.13.2 Latching Foot Pedal Function

• Press and release the Foot Pedal.
• The vacuum is applied and a chime sounds every few seconds.
• Press and release the Foot Pedal.
• The vacuum is disconnected and the suction stops.
