1 "CP plus" tab
2 Recirculation air mode can be set, without heating request.
3 Set room temperature value can be preselected.
4 Set water temperature value can be preselected.
5 Power selector switch can be set to electric / mixed operation.
6 Actual room temperature value can be preselected.
7 Click on "Send" to transfer parameters to control unit.

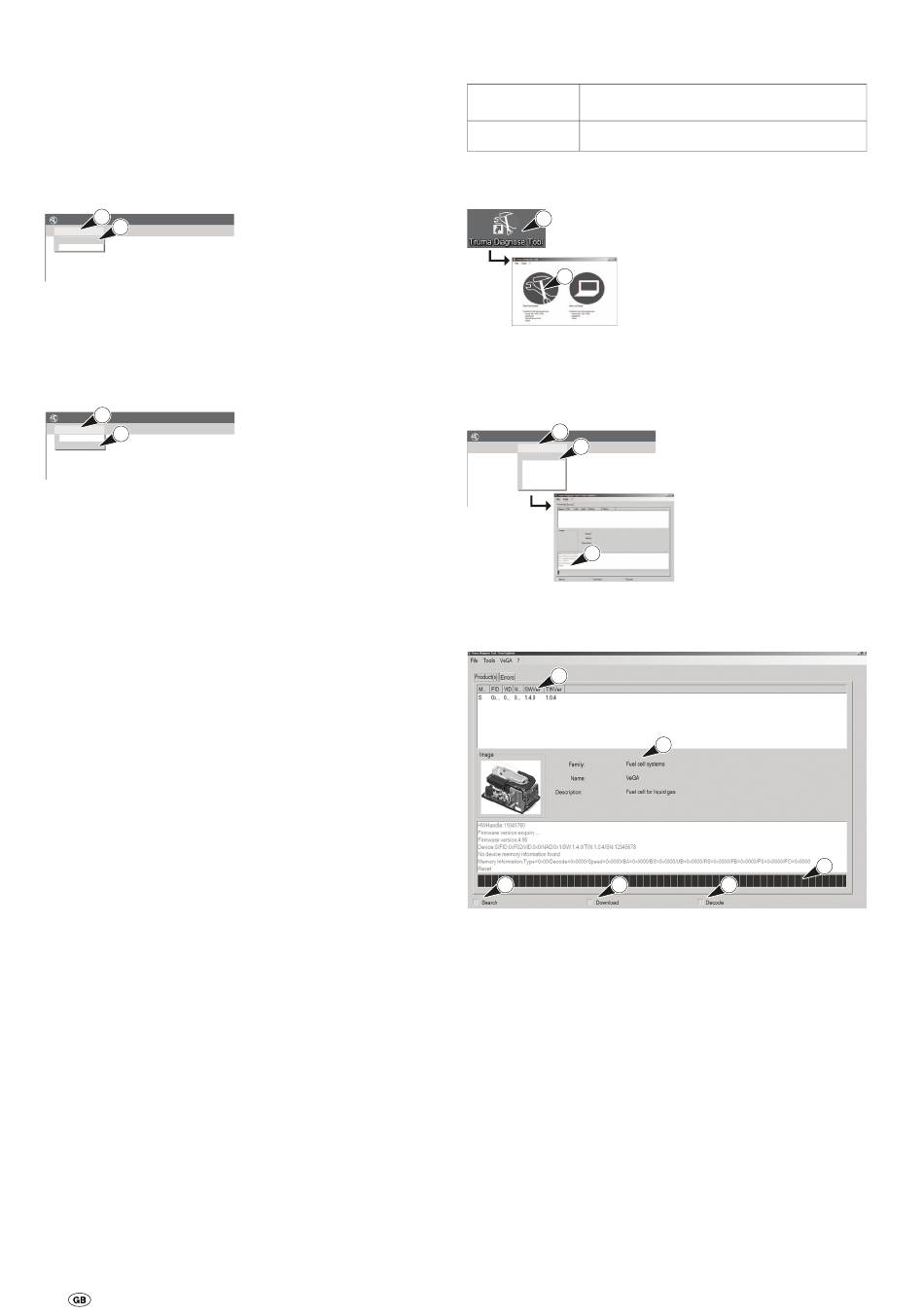

Changing to "Error Explorer"
1
Truma Diagnose Tool / Live Display
2
File
Error Explorer
Exit
Fig. 47

Closing the program

1
Truma Diagnose Tool / Live Display
File
2
Error Explorer
Exit
Fig. 48
26
1 Click on "File".
2 Select "Error Explorer".
– "Live Display" will close.
– "Error Explorer" will
start.
1 Click on "File".
2 Click on "Exit".
– Disconnect the diagnos-
tics cable from the test
object.
– Switch off the device.
"Error Explorer" program – VeGA
Requirements for operation:
Device Version of software in the device
VeGA All

Program start-up

1
2
Fig. 49

Device search

1
Truma Diagnose Tool / Error Explorer
2
File Tools ?
Start
Stop
Properties
More ...
Select language
3
Fig. 50
VeGA error memory readout
6
1 2
Fig. 51
Screen displaying current action
1 Device search
2 Error memory readout
3 Error memory content will be prepared for display.
4 Status bar
5 Device which is connected to the "Diagnose Tool"
6 Information on the device
Field Meaning
Master M(aster) / S(lave)
FID Device code
VID Device type
NAD Network address
SWVer Version of software in the device
TINVer Version of TIN bus
1 Start the program by
double-clicking on the
"Truma Diagnose Tool"
icon on the desktop.
2 Select "Error Explorer"
to start the program.
1 Click on "Tools".
2 Click on "Start".
3 Search results or
information on the
device detected (see
"VeGA error memory
readout")
5
4
3
