Symbols used

Symbol indicates a possible hazard.
Note containing information and tips.
Observe the ESD regulations! Electrostatic charge can
destroy the electronics. Ensure potential equalisation
before touching the electronics.

Safety instructions

– During operation components can conduct voltages which
may pose a risk to life. The accident prevention regulations
in force in the country where the device is used must be
observed.
– The device may only be operated with original software
from Truma.
Claims on the warranty shall not be honoured and liability
shall not be accepted in the following cases:
– If modifications are made to the device (including
accessories)
– If replacement parts and accessories are used which are not
original Truma parts
– If the installation and operating instructions are not followed
– If modifications are made to the software

"Diagnose Tool" interface

Purchased parts package

1 Diagnose Tool interface / hardware
1 CD-ROM incl. software for
– "Error Explorer"
– "Live Display"
1 USB cable
2 Combi / Mover® XT connection cables (RJ12 – RJ12)
1 Mover® connection cable (RJ12 socket – edge connector)
1 RJ12 cable extension coupler
1 USB cable incl. 5 V to 12 V transformer (5 mm barrel con-
nector) for power supply to interface
or
1 cable (incl. 5 mm barrel connector) – for power supply to
interface via control unit

System requirements

Windows XP, Windows 10, 7, 8 (not Windows RT)
Memory required on the hard drive: approx. 40 MB
(approx. 275 MB additional memory will be required on the
hard drive if Microsoft .NET Framework Version 4.0 is not
installed)

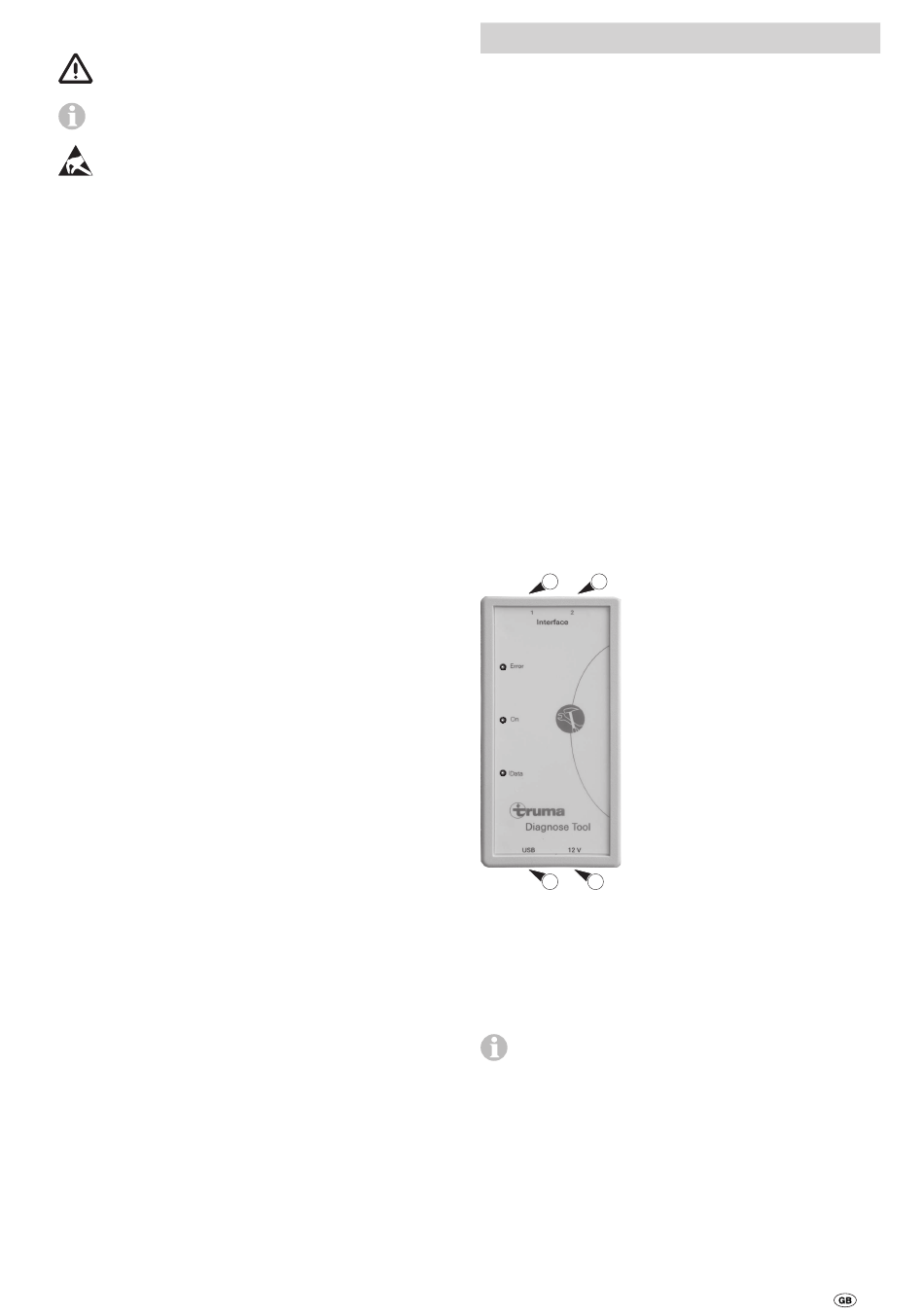

Connections

1
2
4
3
Fig. 1

Software installation

– Place CD-ROM in computer and follow the step-by-step in-
structions on the screen.
The software must be installed on the computer before
the "Diagnose Tool" is connected.
1 RJ12 socket for test object
or
2 RJ12 socket for test object
3 Socket for 5 mm barrel
connector 12 V power
supply ≥ 0.1 A
4 USB for connection to
computer
17
