Mover® XT
The control unit consists of one central unit and 2 or
4 motor units.

Control unit installed in the vehicle

Central unit error memory export
– Remote control must be switched off.
– Control unit of Mover® XT must be installed as instructed
and ready for operation.
– Supply control unit with power (12 V DC).
– Plug the 13-pin or 7-pin caravan plug into the safety socket.
– Connect "Diagnose Tool" to the central unit with cable
(RJ12 – RJ12).
Connection
X1
RJ12
1 2
Interface
Diagnose Tool
USB
USB 12 V
5 V -> 12 V

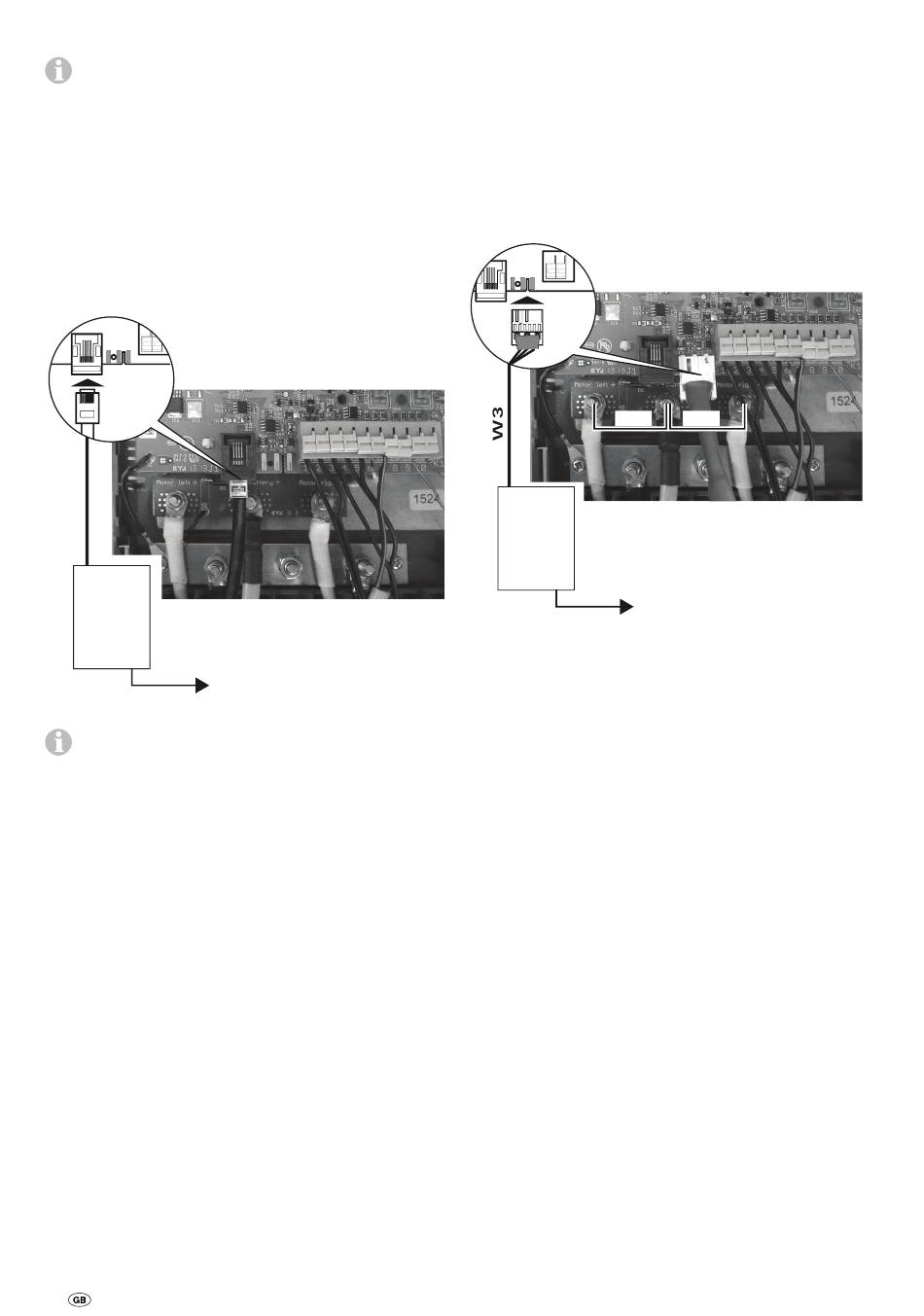

Fig. 11
Motor unit errors are logged in the error memory along
with central unit errors. The motor unit error memory
must be exported for a detailed description of errors.
20
Motor unit error memory export
– Remote control must be switched off.
– Control unit of Mover® XT must be installed as instructed
and ready for operation.
– Remove the 13-pin or 7-pin caravan plug from the safety
socket.
– Supply control unit with power (12 V DC).
– Connect the "Diagnose Tool" to the central unit with the
Mover® adapter cable (W3).
– Establish power supply to the respective motor unit – bridge
(W1 or W2).
Connection
X1
W1
1 2
Interface
Diagnose Tool
USB
USB 12 V
5 V -> 12 V
Fig. 12

Separate control unit export

No provision is made to read out the disconnected control
unit.
