Separate control unit export

– Place control unit on a non-conducting surface.
– Check that the wires are connected to the correct terminals.
Operating the control unit without a sensor and cable
harness can generate new errors (Combi 4 / 6 – no. 61,
Combi D – no. 111).

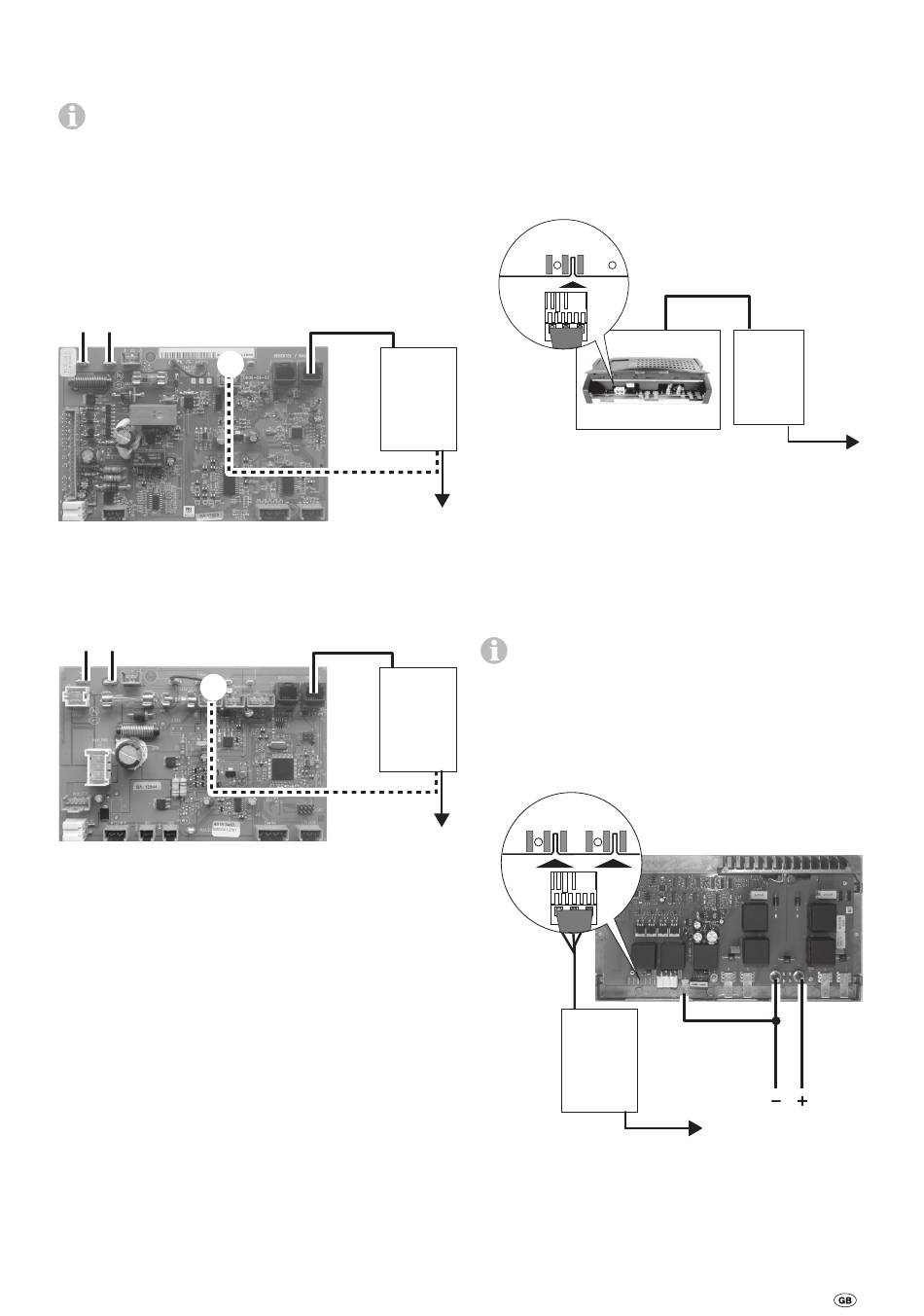

Connection
– Supply control unit with power (12 V DC / ≥ 0.1 A).
– Connect power supply for "Diagnose Tool" (X2 or USB).
Combi (Gas) connection
X2 Connection to clock (clock) – Combi (Gas)
12 V
+ –
X2
Fig. 7
Combi D connection
X2 Connection to clock (time switch) – Combi D
12 V
+ –
X2
Fig. 8
Error memory export
– Start "Truma Diagnose Tool / Error Explorer" program on
the computer.
Mover®

Control unit installed in the vehicle

– Control unit of Mover® must be ready for operation.
– Power supply must be on.
– Plug the 13-pin or 7-pin caravan plug into the safety socket.
– Connect the "Diagnose Tool" to X1 with the Mover® adapter
cable.
Mover® connection
X1
1 2
Interface
Diagnose Tool
USB 12 V
Fig. 9
Error memory export
USB – Start "Truma Diagnose Tool / Error Explorer" program on
5 V -> 12 V
the computer.
Separate control unit export
– Place control unit on a non-conducting surface.
– Check that the wires are connected to the correct terminals.
Operating the control unit without peripheral equipment
can generate new errors.
1 2
Mover® connection
– Supply control unit with power (12 V DC / min. 0.2 A).
Interface
– Simulate the connection of the safety socket with a bridge
(W1).
Diagnose Tool
– Connect the "Diagnose Tool" to X1 or X2 with the Mover®
USB 12 V
adapter cable (W2).
X1
USB
5 V -> 12 V
W2
Fig. 10
Error memory export
– Start "Truma Diagnose Tool / Error Explorer" program on
the computer.
Diagnose Tool
USB
Mover®
X2
1 2
1 2
W1
Interface
Diagnose Tool
USB USB
USB USB 12 V 12 V
5 V -> 12 V
5 V -> 12 V
1 2
Interface
12 V
USB
5 V -> 12 V
12 V
