Error details

Any errors which occur are highlighted in red in the display.
The example shows the Combi (Gas) device.
Truma Diagnose Tool / Live Display
2
File Tools ?
Product(s) Live Display Errors
Errors
5
μC1 0
1
μC2 10
μC3 25
4
3

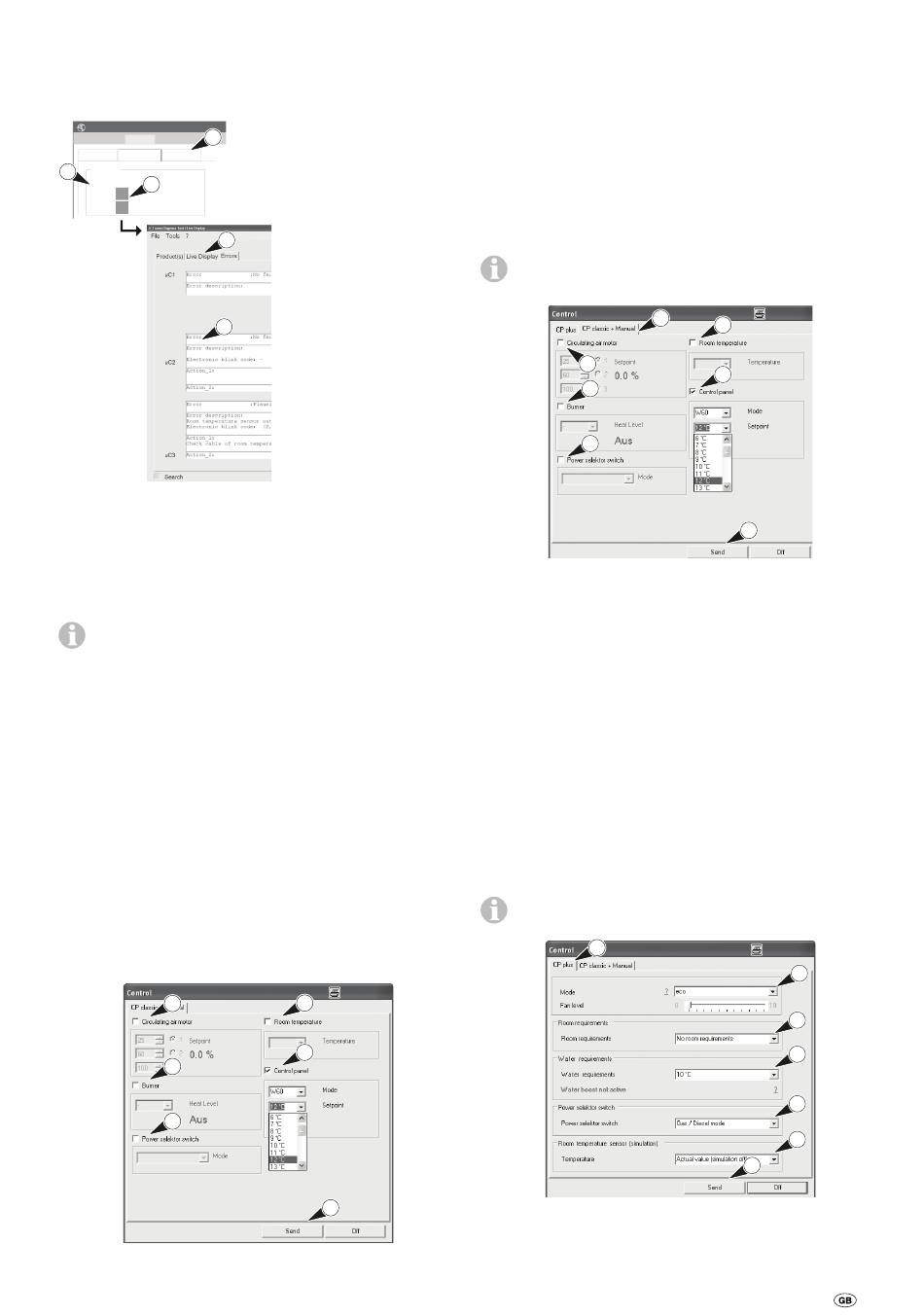

Fig. 43

Operating status setting

Operating parameters can be changed on the device for tests.
Various simulation options can be configured depending on
the device which is connected.
The "Live Display" window is placed in the task bar after
opening the "Control" window. The "Live Display" win-
dow can be restored by clicking on the symbol in the task bar.
The same applies to the "Control" window.

– Analogue control panel simulation

The "Control" screen – Fig. 44 – opens automatically as
follows:
Combi (Gas) Version of software in device 3.0, 4.0
Combi D Version of software in device 4.0, 5.0
The steps below must be followed if the CP classic con-
trol panel and the CP E classic power selector switch are
simulated:
– Close "Live Display".
– Switch on Combi – on CP classic control panel.
– Set room temperature to "5".
– Wait until Combi is running (heating mode).
– Start Live Display.
1
2
3
Fig. 44
1 Click on the field
highlighted in red for
details of the current
error.
or
2 Click on the "Errors" tab
for details of the error.
3 Detailed description of
error
4 Click on "Live Display"
tab to return to
"Live Display" program.
5 The "Combi" screen
includes μC1, μC2 and
μC3
The "Combi D" display
only has μC1.
4
5
6
1 Combi (Gas) only – D.C. motor can be set from 25 to 100 %.
2 Combi (Gas) only – possible burner settings 2, 4, 6 kW
3 Power selector switch can be set to electric / mixed operation.
4 Combi (Gas) only – Actual room temperature value can be
preselected.
5 Control panel – Mode and set room temperature value can
be preselected.
6 Click on "Send" to transfer parameters to control unit.
The "Control" screen – Fig. 45 – will appear in response to a
click on the "CP classic + Manual" tab.
Combi (Gas) Version of software in device ≥5.00
Combi D Version of software in device ≥6.00
Required condition – Control panels must be disconnected.
2
3
4
Fig. 45
1 "CP classic + Manual" tab
2 Combi (Gas) only – D.C. motor can be set from 25 to 100 %.
3 Combi (Gas) only – possible burner settings 2, 4, 6 kW
4 Power selector switch – can be set to electric / mixed
operation.
5 Combi (Gas) only – Actual room temperature value can be
preselected.
6 Control panel – Mode and set room temperature value can
be preselected.
7 Click on "Send" to transfer parameters to control unit.

– Digital control panel simulation

The "Control" screen – Fig. 46 – will appear in response to a
click on the "CP plus" tab.
Combi (Gas) Version of software in device ≥5.00
Combi D Version of software in device ≥6.00
Required condition – Control panels must be disconnected.
1
Fig. 46
1
5
6
7
2
3
4
5
6
7
