VeGA fuel cell system

Electronics integrated in VeGA

Requirements for operation
– The VeGA fuel cell system must be connected and installed
as instructed.
– Disconnect the digital control panel.
– Connect "Diagnose Tool", using the adapter cable and X1
connector where applicable.

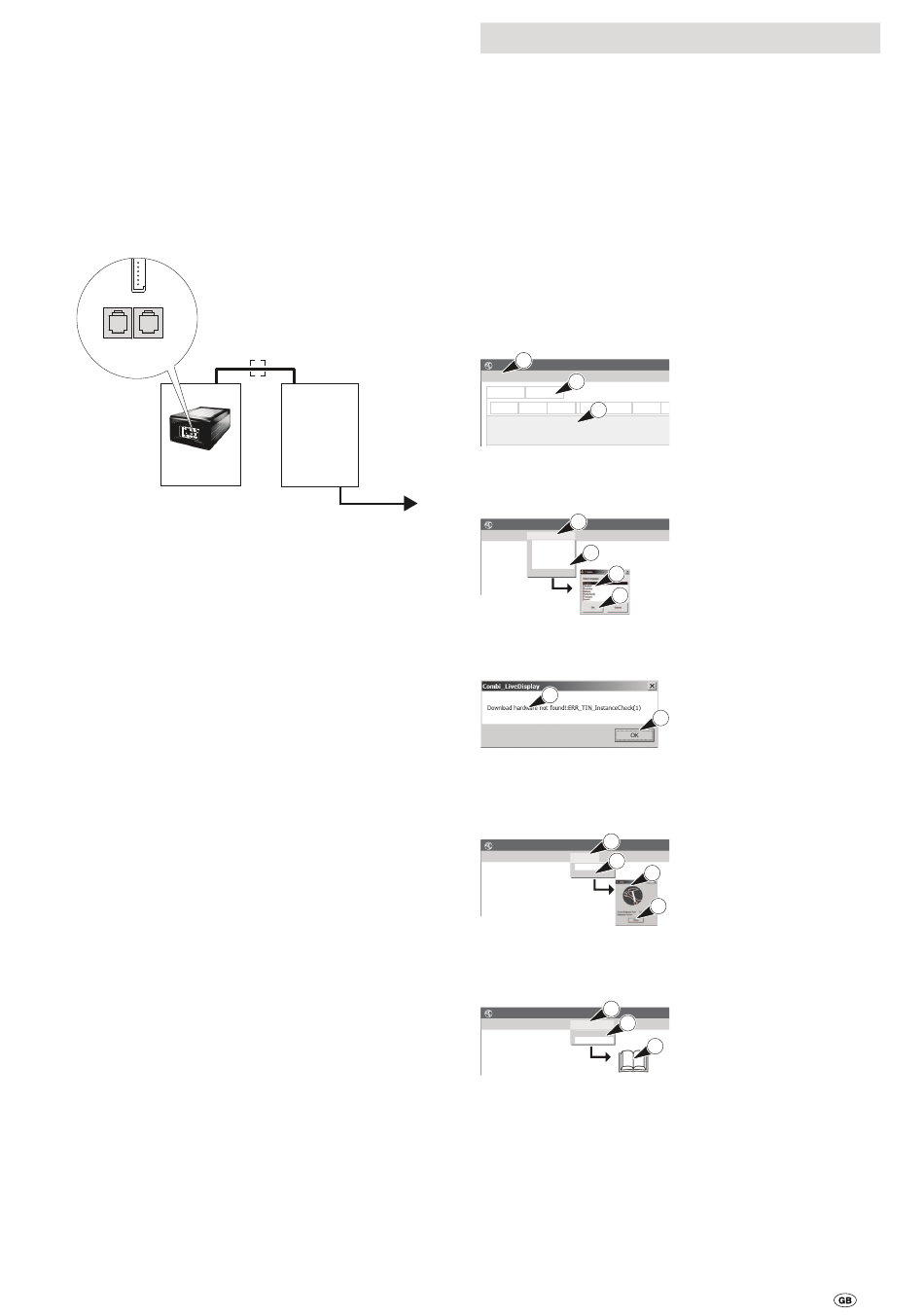

Connection
X1 RJ12 cable extension coupler
VeGA
Fig. 13
Error memory export
– Start "Truma Diagnose Tool / Error Explorer" program on
the computer.

Separate electronics export

It is not possible to read out the disconnected electronics.
X1
1 2
Interface
Diagnose Tool
USB
USB 12 V
5 V -> 12 V

Operating instructions (software)

Intended use

It is possible for error logs to be generated and imported or
for the error memory to be deleted with the "Error Explorer"
program on a TIN-capable device. A locked electronic circuit
can be unlocked if necessary.
Operating states and operating parameters on a Combi (Gas),
Combi D or VeGA can be displayed or changed with the "Live
Display" program.

Workspace

– The programs are operated with the mouse.
– Entries are input using the keyboard.
1
Truma Diagnose Tool / Error Explorer
File Tools ?
2
Product(s) Errors
Master FID VID NAD 3 SWVer TINVer
Fig. 20

Language setting

1
Truma Diagnose Tool / Error Explorer
File Tools ?
Start
2
Stop
Properties
More ...
3
Select language
4
Fig. 21

Warning messages

1
Fig. 22

Info / software version

1
Truma Diagnose Tool / Error Explorer
File Tools ?
2

Help

3
Info
4
Fig. 23
Help
1
Truma Diagnose Tool / Error Explorer
2
File Tools ?
Help
Info
3
Fig. 24
1 Menu bar
2 Tabs
3 Information window
1 Click on "Tools".
2 Click on "Select
language".
3 Click on language.
4 Click "OK" or "Cancel".
1 Warning message
2
2 Acknowledge
1 Click on "?".
2 Click on "Info".
3 Information on software
4 Acknowledge
1 Click on "?".
2 Click on "Help".
3 This file will open (PDF).
