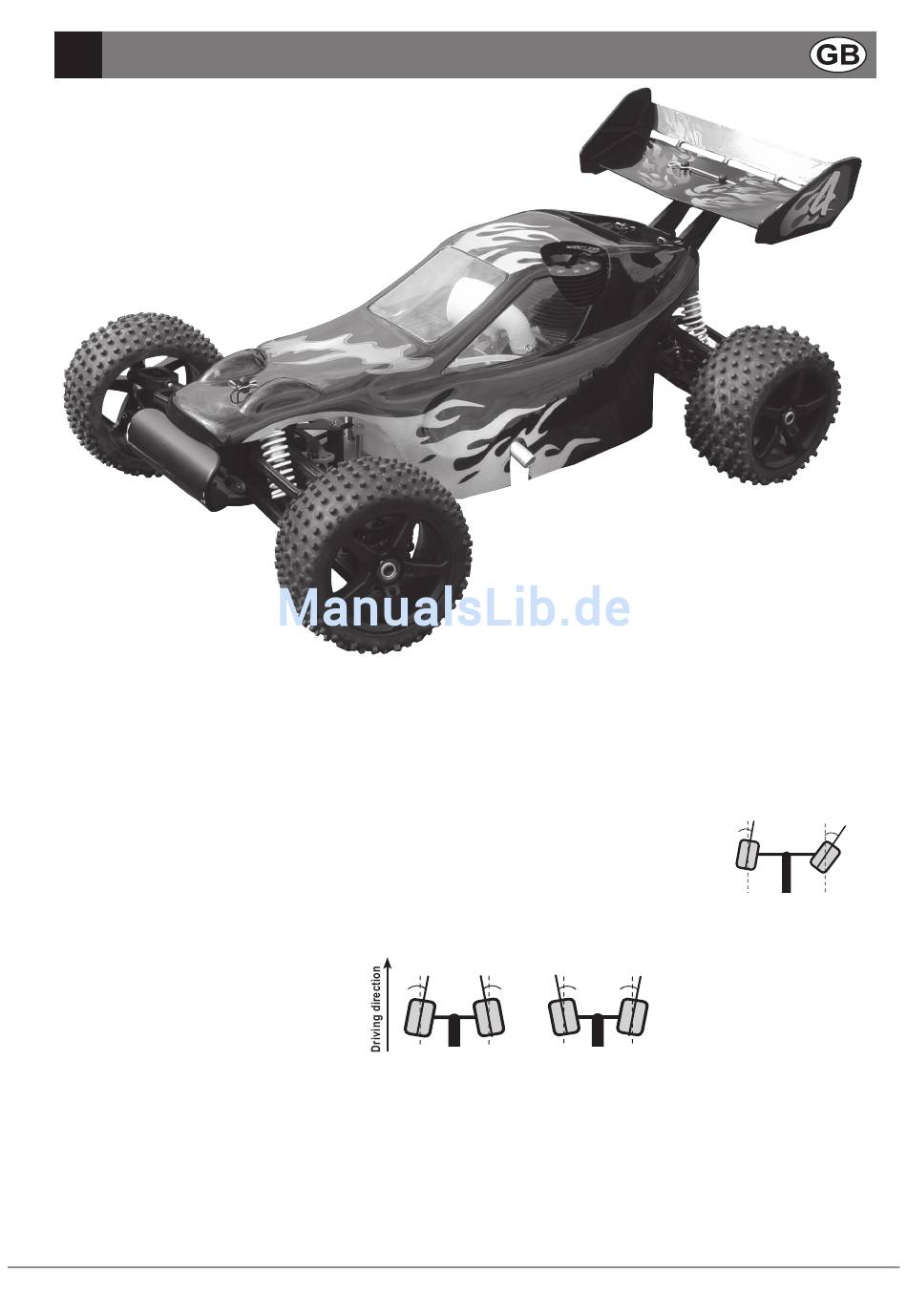

3. Description of the model
b) 4WD Buggy Chassis
2/4 WD
2/4 Wheel Drive driven by  or 4 wheels.
ABC assembly
ABC means "Aluminum", "Brass" and "Chrome". Aluminum with its small thermal expansion and small weight serves as material for pistons, the cylin-
der is made of brass with chrome-plated contact surface
Ackermann effect
In order to set-up progressivity of the full lock on the inner corner wheel (Ackermann angle), the steering is transformable
in the steering arms and also on the steering plate into different directions.
Air filter
The air filter is made of foam and prevents the penetration of dust and dirt particles through the suction hole into the carburettor and in the engine.
Alignment
Position of the wheel level to the driving direction:
a) Toe-in – Wheels point inwards
b) Toe-out – Wheels point outward
Axle leg
This is where the axle turns. The steering levers are located on the front axle legs.
Bumper
Made of impact resistant synthetic material for excellent damping in case of a frontal crash.
Chassis
The "frame" of the vehicle, to be precise, only the bottom support plate.
40
a b
nachspur.eps
vorspur.eps
