The Stadium Buggy Chassis „McFlash" is pre-assembled ready to drive (Ready To Run).
Before the first start, some basic adjustments must be carried out or checked and the necessary
accessories and auxiliaries must be prepared.
Go through the various points of the check list one after the other, and your model is then ready to run.
Tuning measures on the chassis necessitate various tools. The latter are listed below.
4.2
T
OOLS AND AUXILIARIES
T
OOLS
- Flat spanner 5 mm
to set alignment and inclination
- Flat spanner 5.5 mm
to change the shock absorbers (to counter-hold)
- Allen wrench 1.5 mm for the
headless screws at the adjusting rings of the
throttle / brake and steering linkage and the
transverse stabilizer
- Allen key 1.5 mm for the grub screws on the
adjusting rings of the throttle/brake and steering
linkages and the transverse stabilizers (optional)
- Crosstip screwdriver (Ph No 1)
for all other screws on the chassis,
the casings of the differentials and the RC mounting
plate
- Screwdriver for the throttle stop screw and the main
nozzle needle
The instructions specific to position front / back / right / left
always refer to the longitudinal axis of the vehicle
4.3
C
HECK ALIGNMENT AND TOOTH BACKLASH OF DRIVE
The engine transmits its capacity via the pinions on the clutch bell to the main pinion at the center differential.
Both rotary axes, i.e. the crank shaft, engine-sided, and the axis of the drive section to the front and rear axis, must be
aligned so that they are exactly in parallel. This prevents tensions in the drive section, premature wear of the pinions and
bearing journals as well as loss of power.
The parallel alignment of crankshaft and drive section must be checked every time before using the vehicle
and, if necessary, must be readjusted!
When the alignment is in parallel, the pinion on the clutch bell and the main pinion will run smoothly.
If there is too much play, this will destroy the toothed wheels in the long run; too little play destroys the bearing in clutch
and engine.

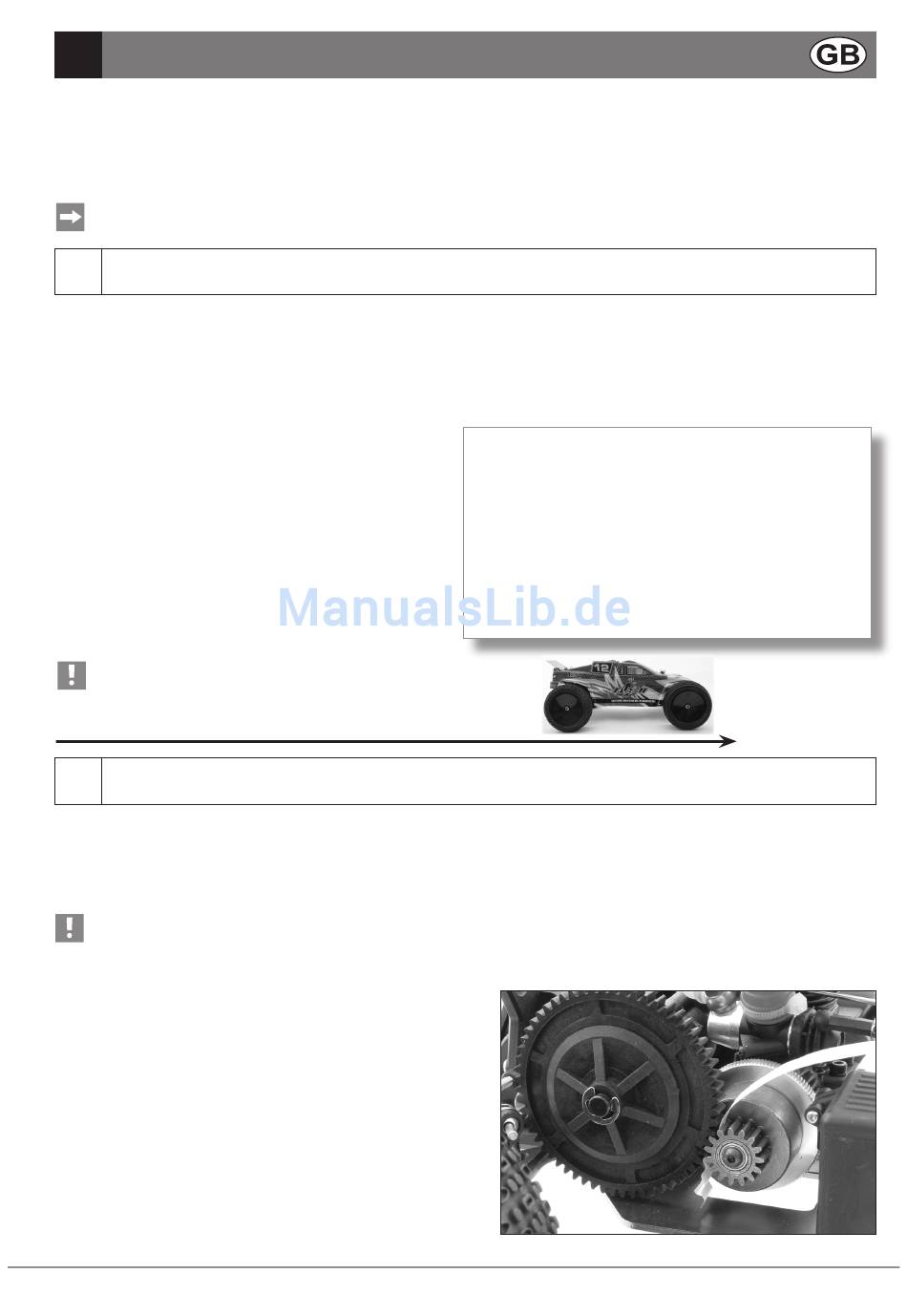

Checking the tooth backlash
- Place thin strips of paper between the pinions on the
clutch bell and the main pinions in the drive section.
- Move toothed wheels by hand;
the paper strips must not rip apart when the wheels
turn!
Readjustment
- Loosen four screws of the engine mount attachment on
the bottom side of the ground plate (chassis)
- Align engine lengthwise and tighten the screws again
- Loosen four screws of the engine mount and align engine
sideways
40
REPARATION
NOTE!
in drive direction "forward"!
,
CHECK LIST FOR PUTTING INTO OPERATION
A
UXILIARIES
- Cable fastener
- Air filter oil
- Low viscosity machine oil for lubrication and
to protect the combustion chamber against corrosive
residues in the engine, after operation („After Run")
C
HECK LIST FOR PUTTING INTO OPERATION
What must be done:
- Check alignment and tooth backlash of drive
- Function control of servos
- Check the range of the remote control transmitter
- Check basic carburettor setting
- Fill in fuel
- Let engine run
Operating Instructions 2WD GP Stadium Buggy Chassis McFlash Item No. 23 45 97
