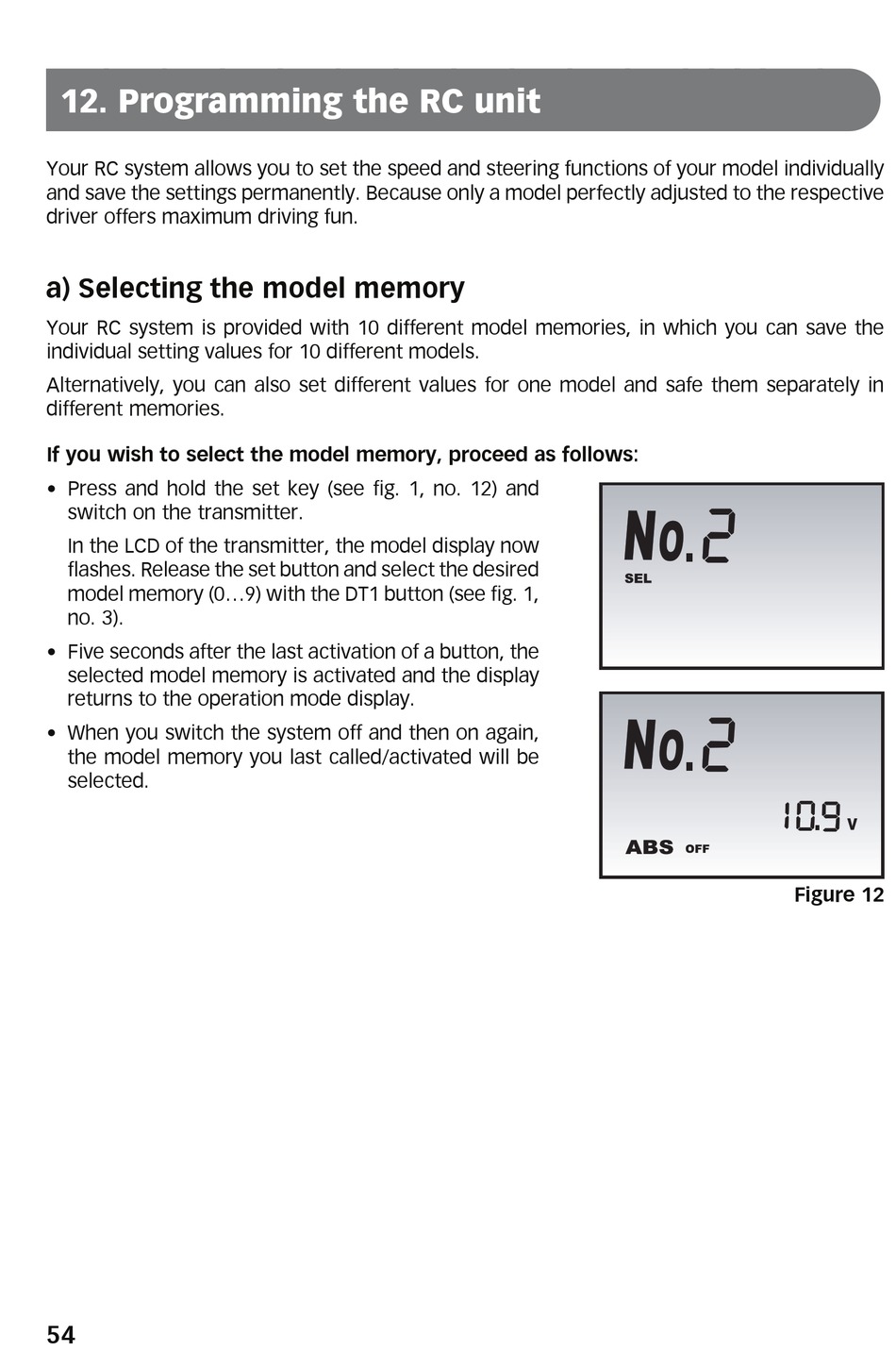

12. Programming the RC unit

Your RC system allows you to set the speed and steering functions of your model individually
and save the settings permanently. Because only a model perfectly adjusted to the respective
driver offers maximum driving fun.

a) Selecting the model memory

Your RC system is provided with 10 different model memories, in which you can save the
individual setting values for 10 different models.
Alternatively, you can also set different values for one model and safe them separately in
different memories.
If you wish to select the model memory, proceed as follows:
• Press and hold the set key (see fig. 1, no. 12) and
switch on the transmitter.
In the LCD of the transmitter, the model display now
flashes. Release the set button and select the desired
model memory (0...9) with the DT1 button (see fig. 1,
no. 3).
• Five seconds after the last activation of a button, the
selected model memory is activated and the display
returns to the operation mode display.
• When you switch the system off and then on again,
the model memory you last called/activated will be
selected.
54
Figure 12
