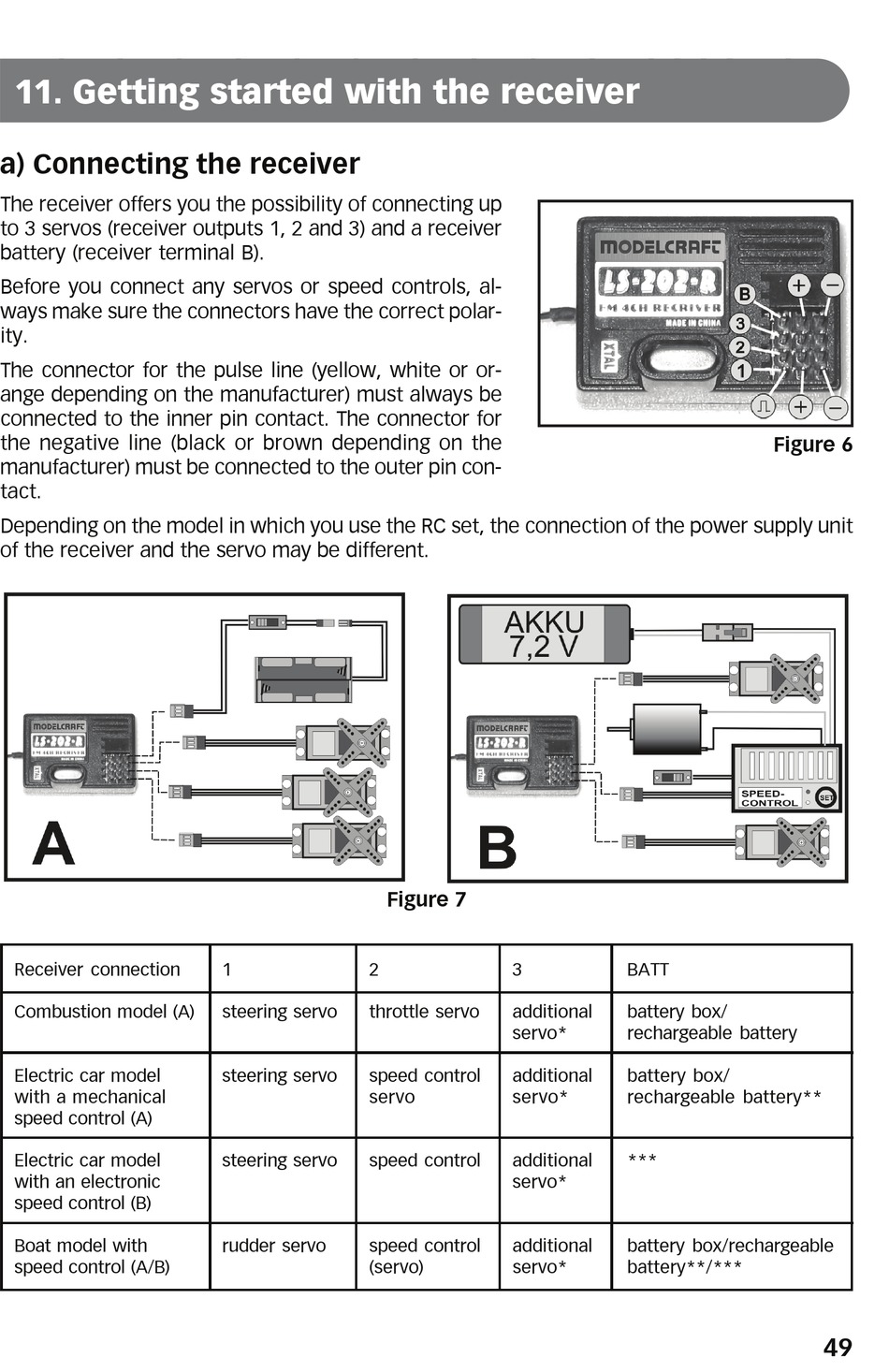

11. Getting started with the receiver

a) Connecting the receiver
The receiver offers you the possibility of connecting up
to 3 servos (receiver outputs 1, 2 and 3) and a receiver
battery (receiver terminal B).
Before you connect any servos or speed controls, al-
ways make sure the connectors have the correct polar-
ity.
The connector for the pulse line (yellow, white or or-
ange depending on the manufacturer) must always be
connected to the inner pin contact. The connector for
the negative line (black or brown depending on the
manufacturer) must be connected to the outer pin con-
tact.
Depending on the model in which you use the RC set, the connection of the power supply unit
of the receiver and the servo may be different.
Receiver connection
Combustion model (A)
Electric car model
with a mechanical
speed control (A)
Electric car model
with an electronic
speed control (B)
Boat model with
speed control (A/B)
Figure 7
1 2
steering servo throttle servo
steering servo speed control
servo
steering servo speed control
rudder servo speed control
(servo)
3 BATT
additional battery box/
servo* rechargeable battery
additional battery box/
servo* rechargeable battery**
additional ***
servo*
additional battery box/rechargeable
servo* battery**/***
Figure 6
