Setting the EPA value for the additional servo

The addition servo has two end positions; by pressing the button on the transmitter you can
switch from one end position to the other. By means of the EPA function you can set precisely
how far the servo lever should turn, i.e. between what end positions the servo lever should
move. In the factory these end positions have been set to 0% and 100%.
• Turn the transmitter on. On the LCD of the transmit-
ter the operation mode display appears.
• Now press the set key (see fig. 1, no. 12) nine times.
On the left side of the display "CH3" for the additional
servo lights up, a minus sign and the 0% default value
– or the one that was last programmed appear.
• To set the EPA value of the additional servo for an
end position, press the DT1 button (see fig. 1, no, 3)
within 5 seconds.
If you push the button to the right, the number in-
creases in 1% steps. This reduces the maximum end
position of the additional servo.
If you push the button to the left, the number reduces
in 1% steps and the angle of the additional servo on
this side is increased.
• If you press the set key (see fig. 1, no. 12) again within
5 seconds after the last setting, the steering rotation
arrow changes from a minus to a plus sign and the
100% default value or the one you last programmed
is displayed.
• To set the EPA value of the additional servo to a dif-
ferent an end position, press the DT1 button (see fig.
1, no, 3) within 5 seconds.
If you push the button to the left, the number reduces
in 1% steps. This reduces the maximum end position
of the additional servo.
If you push the button to the left, the number reduces
in 1% steps and the angle of the additional servo on
this side is increased.
• Five seconds after the last activation of a button, the
value you last set is saved and the display returns to
the operation mode display.
60

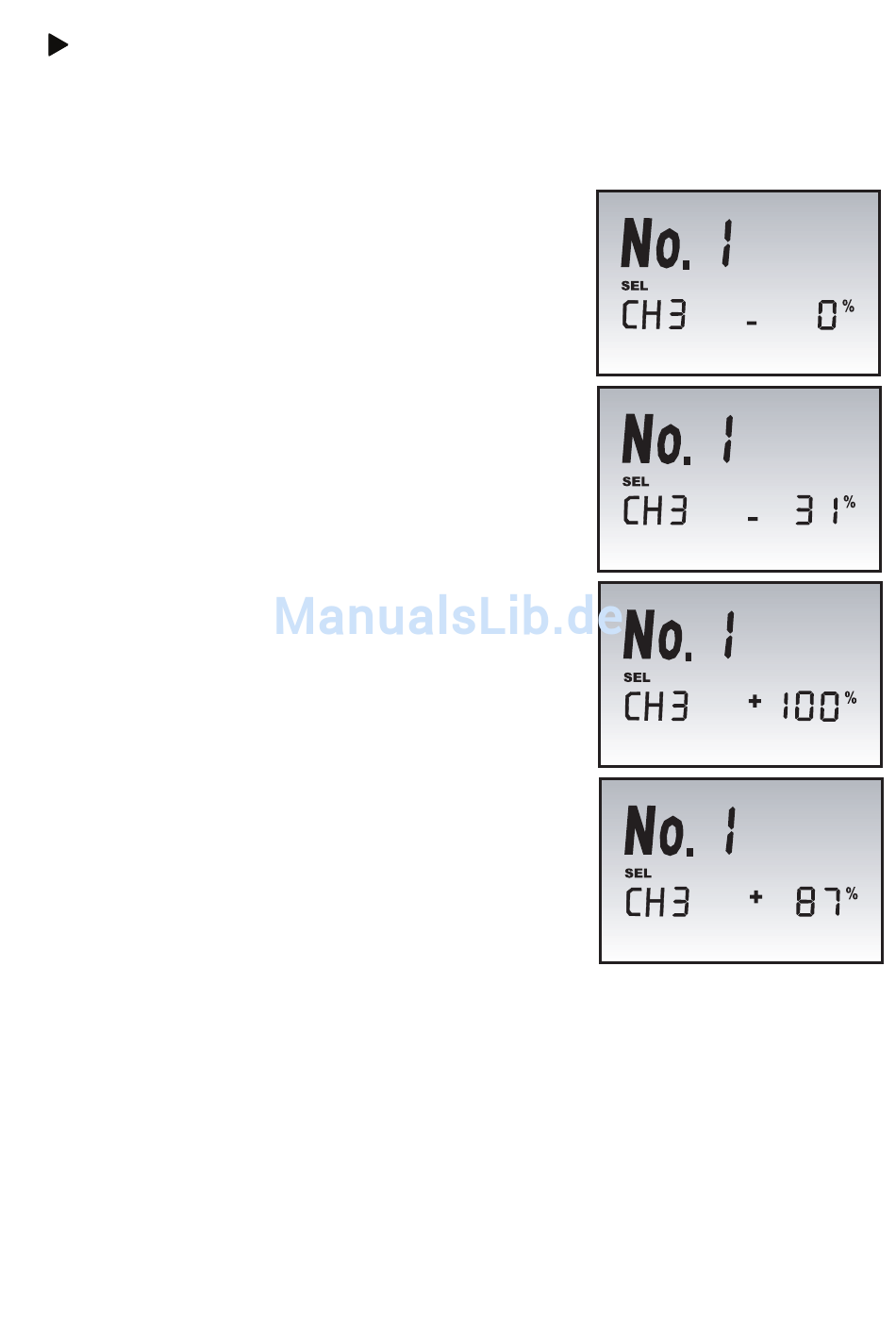

Figure 17
