b) Setting the direction of rotation of the servo (REV)

Depending on the location and the linkage in the model, it may be necessary to change the
rotary direction of a servo and therefore the functional direction of the corresponding controls
on the remote control.
When you turn the steering wheel on the transmitter (see fig. 1, no. 2) towards the left but the
vehicle makes a turn to the right, you must activate the reverse function for channel 1 (CH1).
For this purpose, proceed as follows:
• Switch the transmitter on. In the LCD of the transmit-
ter the operation mode display appears.
• To set the required direction of the steering servo,
press the set key (see fig. 1, no. 12) once.
On the left side of the display "CH1" for the steering
servo lights up; the last direction that was selected is
indicated with an arrow.
• Press the DT1 button within 5 seconds (see fig. 1, no.
3) in any direction.
Every time you press the button, the direction of the
steering servo changes. In the display the direction
arrow will change from "NOR" to "REV" (normal – re-
verse) or from "REV" to "NOR".
• Five seconds after the last activation of a button, the
selected model memory is activated and the display
returns to the operation mode display.
• To set the required direction of the throttle servo,
press the set key (see fig. 1, no. 12) twice.
On the left side of the display "CH2" for the throttle
servo lights up; the last direction that was selected is
indicated with an arrow.
• The procedure for the setting of the direction of the
throttle servo is the same as for the steering servo.

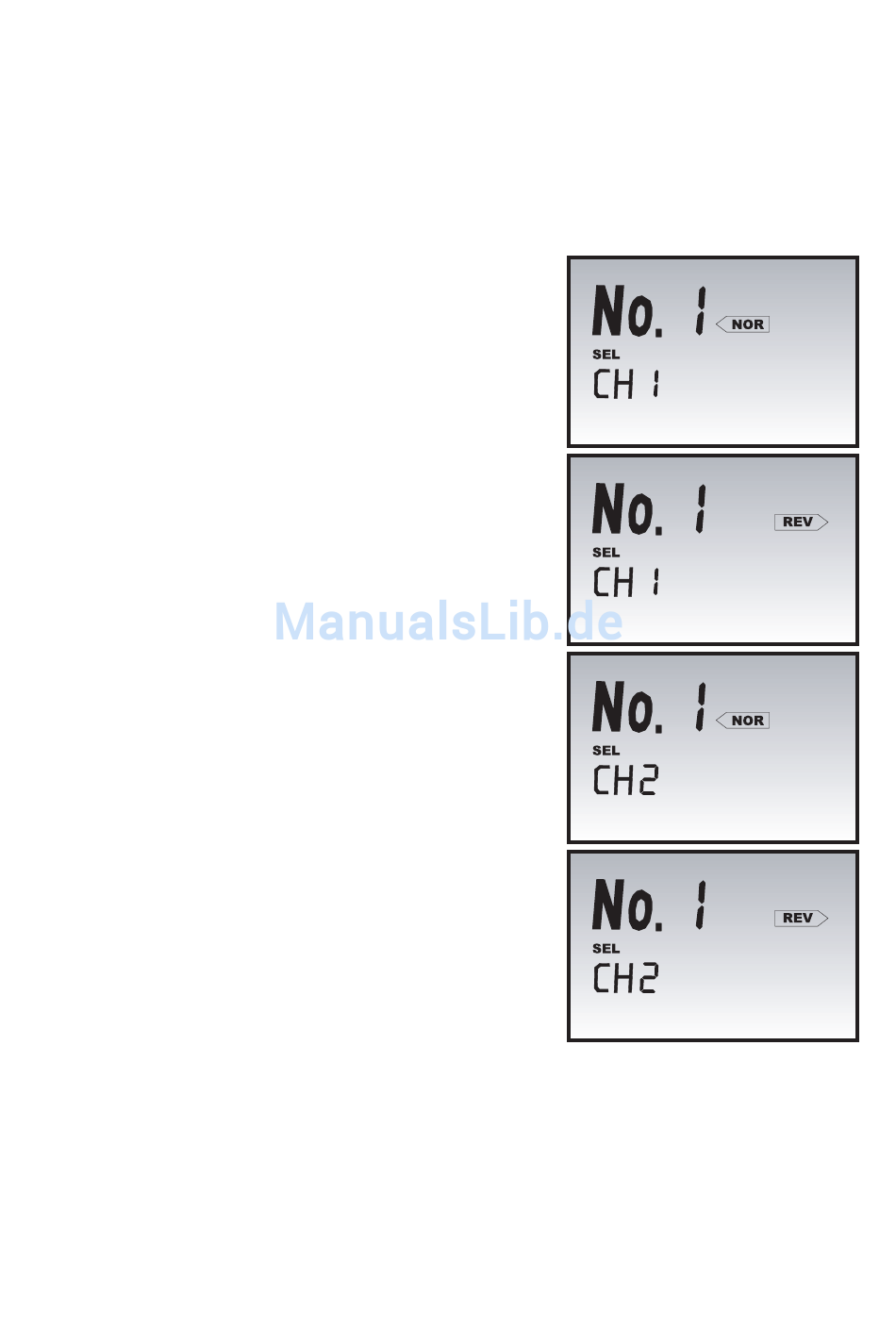

Figure 13
