Function overview

General

The Robacta Drive CMT is designed for the following uses:
-
-
-
In combination with the wire buffer on the hosepack, the integral wire drive motor can
quickly reverse the welding wire.
The external wirefeed means that all wirefeed components can be replaced quickly.
Many different torch neck designs facilitate easy access to the weld.
Overview of
modules

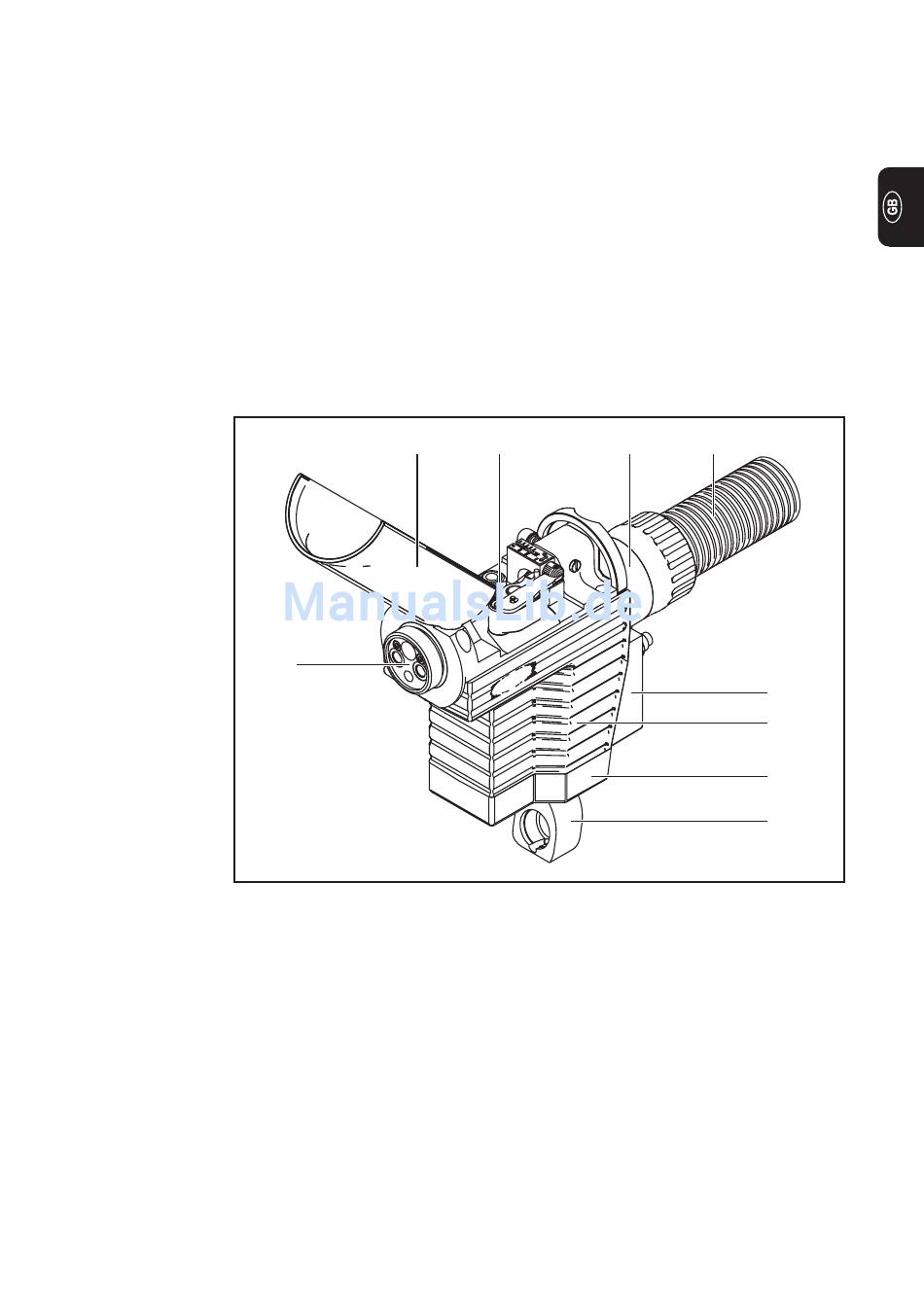

Overview of modules

(1) Torch neck coupling
(2) Cover with hinge
(3) Wirefeed drive
(4) CMT hose coupler
(5) Hosepack with central connection
(6) Electronic box
(7) Motor housing
(8) Base plate
(9) mounting bracket
not shown:
-
General light-gauge sheet applications
Spatter-free MIG brazing of galvanized light-gauge sheets
Joining steel to aluminium.
(2)
(1)
Optional wire-value sensor
(3) (4)
7
(5)
(6)
(7)
(8)
(9)
