Connection of KHS CONTROL-PLUS cable-plug connector
1. Cut off top of cap
cap

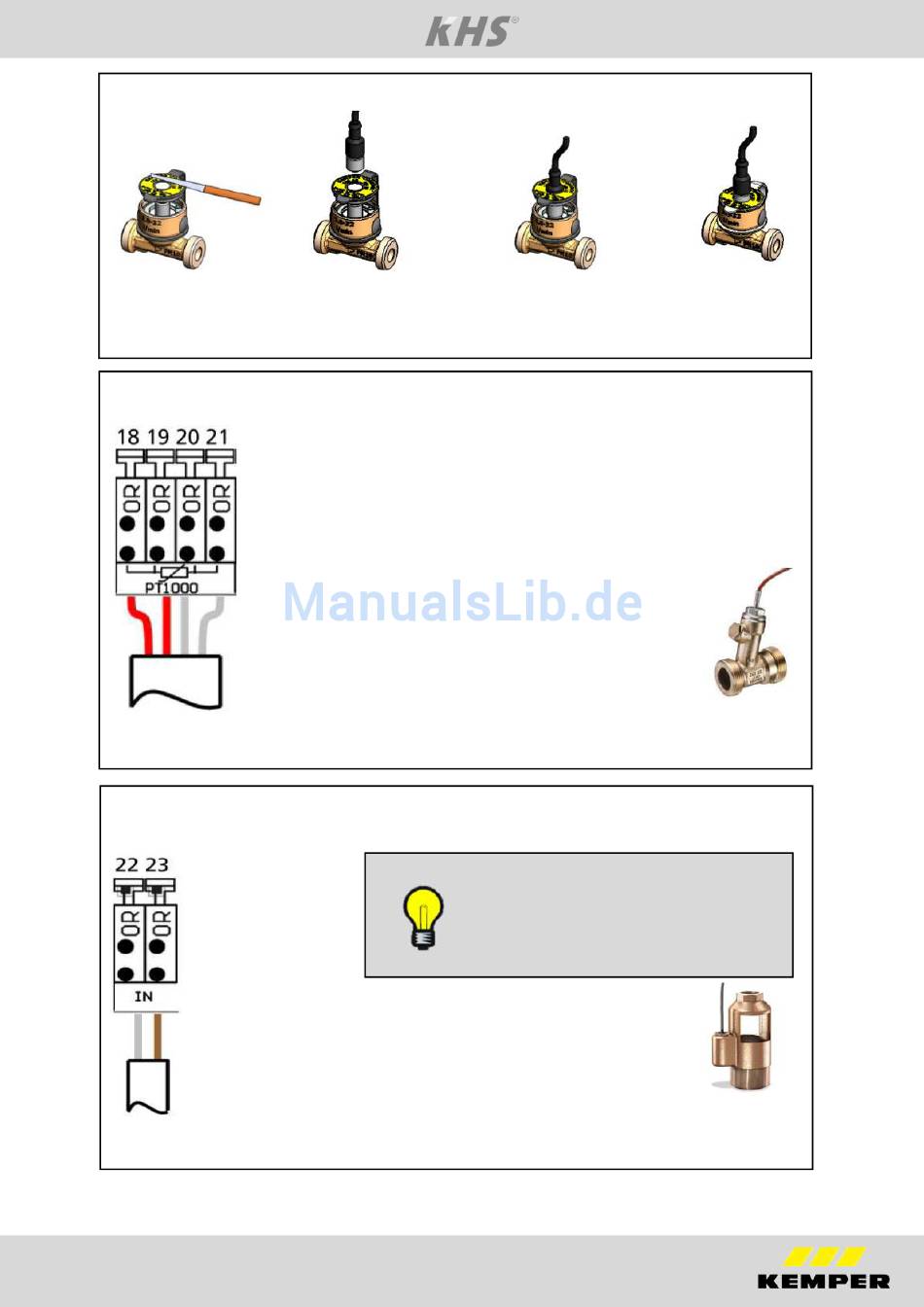

Ill. 6.12: Schematic diagram of the preparation of the sensor top to make cable-
plug connection of the KHS CONTROL-PLUS
6.2.2.7

Connection of KHS Temperature sensor Pt 1000 (Figure 628 0G)

Ill. 6.13: Schematic diagram of connection of KHS Temperature Measurement
Valve Pt 1000
6.2.2.8

Connection of KHS drain with overflow monitor (Figure 688 00)

Ill. 6.14: Schematic diagram of connection of the KHS drain with overflow monitor
Manual KHS Mini System Control MASTER
2. Route cable through
RD = red = 18
RD = red = 19
W = white = 20
W = white = 21
Note:
In the as delivered state, a bridge
strand is plugged between Terminals
22 and 23. It must be removed before
connecting the KHS drain.
W = white = 22
BN = brown = 23
3. Screw cable to sensor
13
4. Put on the
