8.1.3 Detailed overview

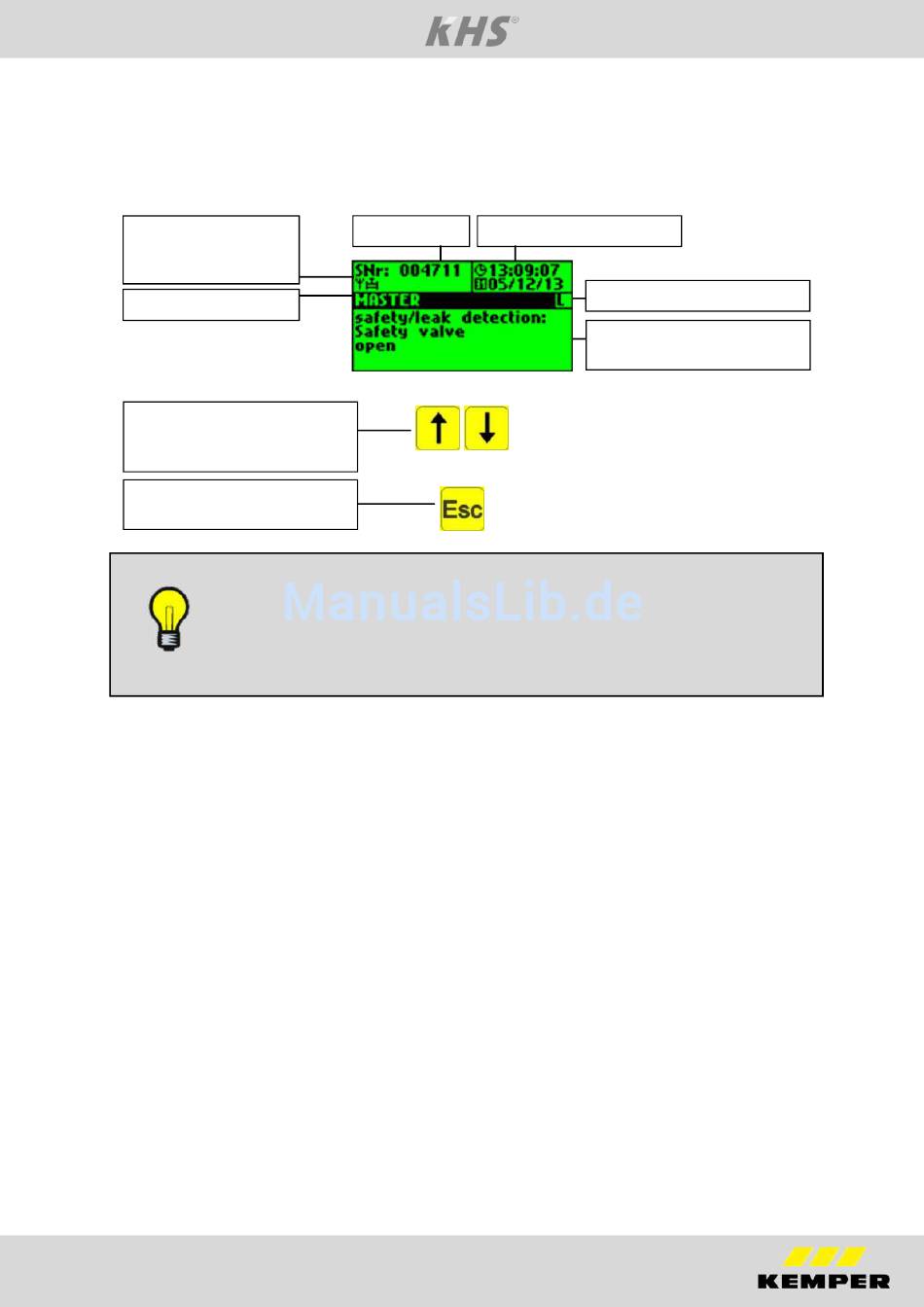

The following illustrations clarify the "Detailed overview" menu interface of the KHS Mini
System Control -MASTER-. The illustrations show the "Detailed overview" based on an
exemplary configuration of a system with one KHS Mini System Control -MASTER- and
two KHS Mini System Controls -SLAVE-.
Serial number of the
controller including
symbols
Name of the
"Scroll back/forwards"
changes between the active
controllers
1x "ESC" returns to the
general plan
Legend symbols
Water exchange activated:
Manual KHS Mini System Control MASTER
Serial number Time and date
Ill. 8.7 Detailed overview
Valve symbol is framed
Time control -> Time symbol flashes
Volume control -> Volume symbol flashes
Temperature control -> Temperature symbol flashes
19
"L" for leakage/protection
Controller-specific detailed
overview
