6.2.2.3
Connection of KHS Isolating valve with spring reset servo-drive
(Figure 686 05 / 686 15 / 696 05)

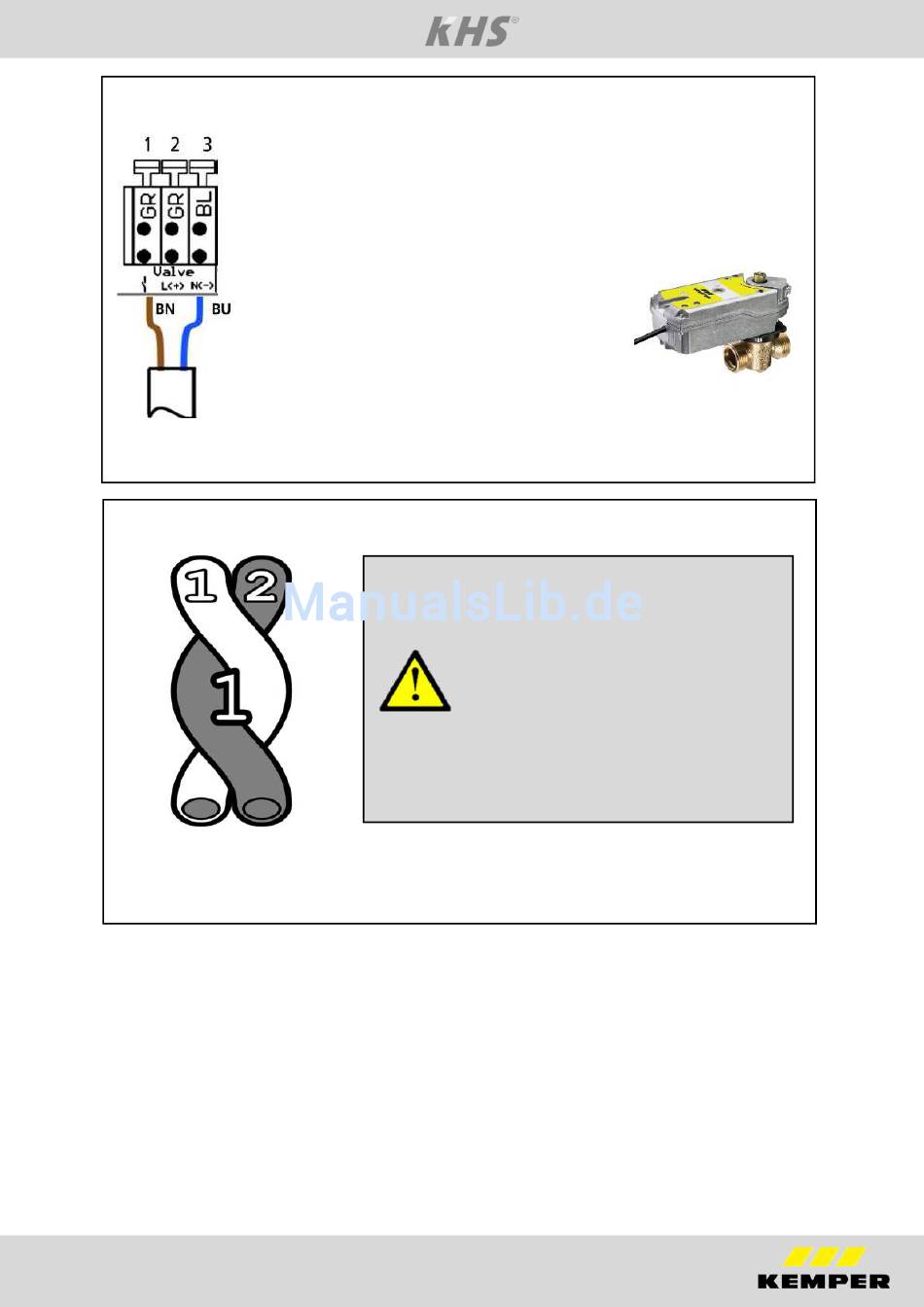

Ill. 6.5: Schematic representation of the connection of the KHS Isolating valve with
spring reset servo-drive
6.2.2.4 CAN bus connection
Ill. 6.6: Schematic diagram of the twisted pair
Manual KHS Mini System Control MASTER
BN = brown = 1
BU = blue = 3
Attention:
Follow the notices and instructions in
Chapter 5. The twisted pair of the CAN
bus cable should be separated and the
shielding removed
necessary to assign
terminals (recommendation: max. 4cm).
The shielding must be properly bundled
with a heat shrink tube or insulating tape
to prevent contact of the individual wires
of the shielding to the other potentials.
10
only as far as
the maximum
