Kemper KHS-Mini MASTER Einbau- Und Bedienungsanleitung Seite 78

Configuration of -SLAVE- 1.1 (safeguard)
In the sample project being used, the KHS Mini System Control -SLAVE 1.1- should act
as a leakage safeguard. The KHS Mini System Control –SLAVE 1.1- should trigger a KHS
Isolating valve with spring reset servo-drive as a safety valve. Additional settings for this

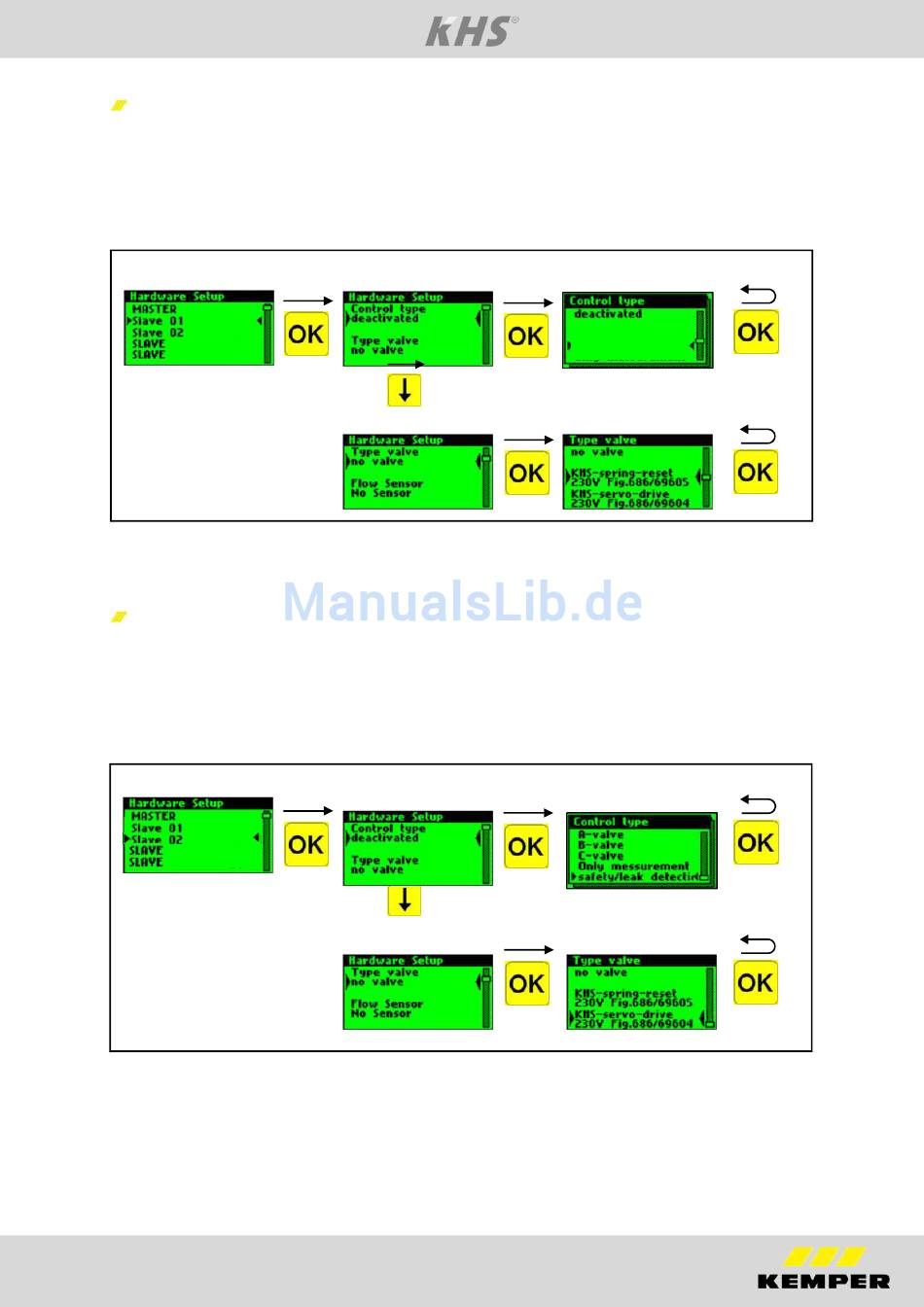

operating mode are explained in Chapter 8.1.4.4. Illustration 8.28 shows the
configuration of a safety device.
Device selection
03
04
Ill. 8.28 Configuration of safeguard
Configuration of -SLAVE- 1.2 (C-valve)
The KHS Mini System Control -SLAVE- 1.2 in this sample project should trigger a C-valve
in the form of a KHS Isolating valve with spring reset servo drive. Furthermore a KHS-
CONTROL-Plus should be evaluated. Additional settings for this operating mode are
explained in Chapter 8.1.4.4. Illustration 8.29 shows the configuration of a C-valve.
Device selection
03
04
Ill. 8.29 Configuration of a safeguard
Manual KHS Mini System Control MASTER
Control type
Valve
Control type
Valve
27
C-valve
safety/leak detection
deactivated
C-valve
safety/leak detection
