6.2.2 Detailed illustration of the terminals for cable entry
Note:
The following illustrations apply to the KHS Mini System Control
-MASTER- and the KHS Mini System Control -SLAVE-. Please note the
preceding warning notices.
6.2.2.1 Power supply connection

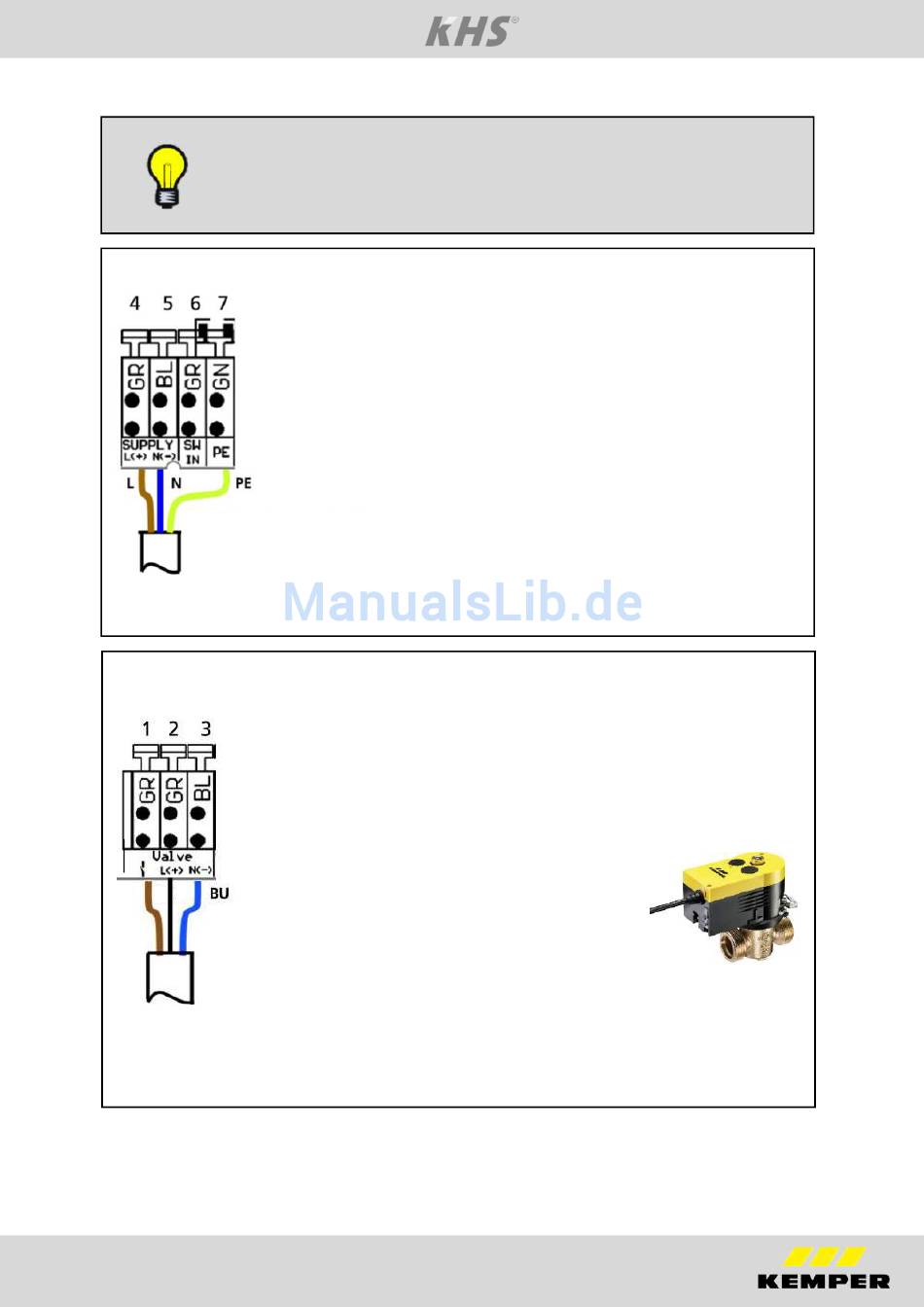

Ill. 6.3: Schematic representation of the power supply connection
6.2.2.2 Connection of KHS Isolating valve with servo-drive
(Figure 686 04 / 696 04)
BN BK
Ill. 6.4: Schematic representation of the connection of the KHS Isolating valve
Manual KHS Mini System Control MASTER
Power supply: 230 V +/- 15% AC 50/60Hz
Connection: Terminals, L, N, PE
Line fuse max. 16A
BN = brown = L
BU = blue = N
GR = green = PE
BN = brown = 1
BK = black = 2
BU = blue = 3
