8.1.4.2

CAN BUS setup

Use the "CAN BUS setup" to add "SLAVE System Controls" that are connected to the -
MASTER 2.0- through the CAN bus system to the CAN BUS network.
The following configuration steps are discussed based on the sample project from
Illustration 8.1 (Page 16). For an overview of the system commissioning, Illustration 8.22
is presented.

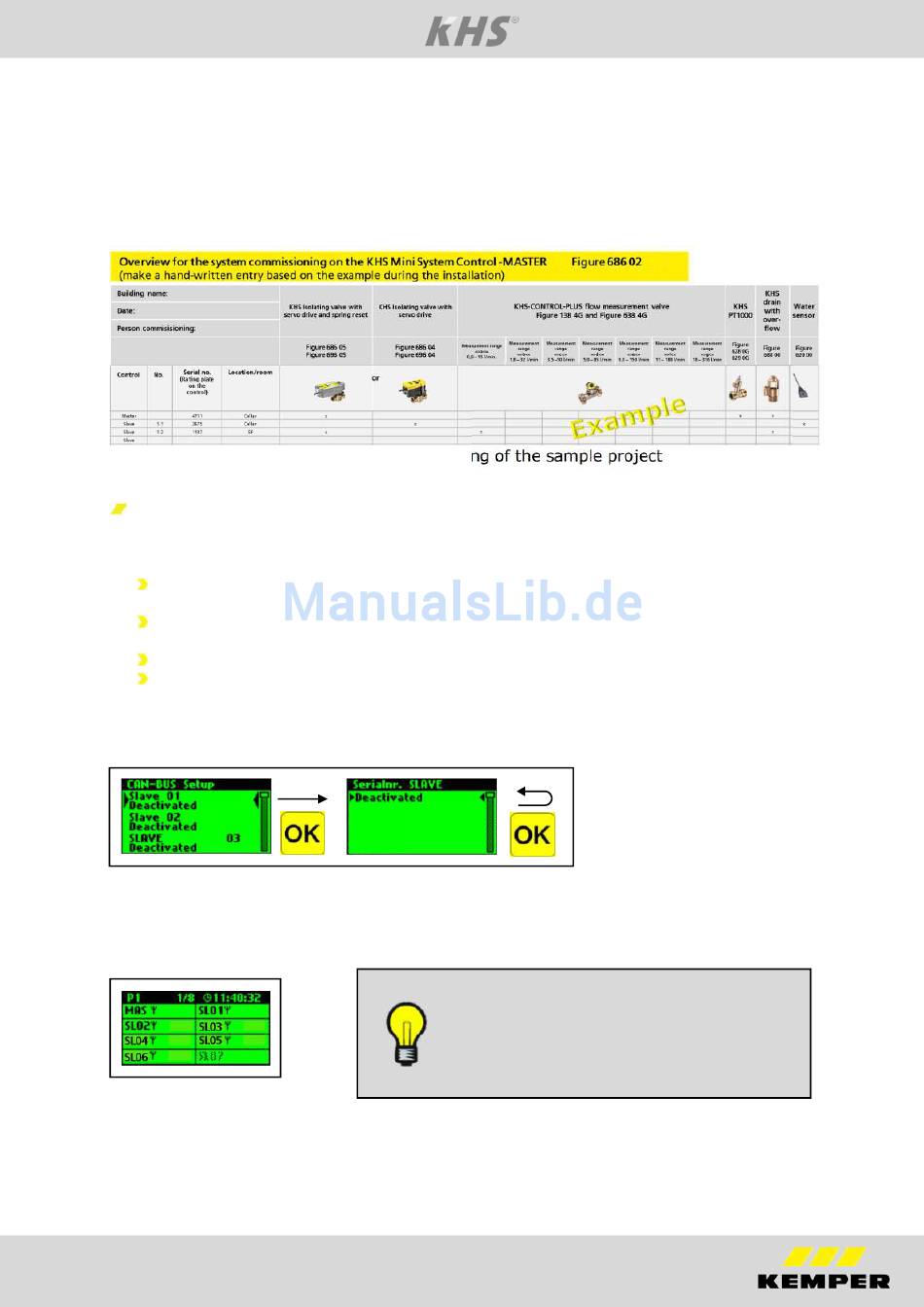

Ill. 8.22 Overview for the system commissioning of the sample project
Adding devices
Before you can configure the KHS Mini System Controls, you have to add them to the
system.
To add a KHS Mini System control, the desired position has to be specified in the
"CAN-BUS Setup" submenu with "OK".
Subsequently, the serial numbers of all connected KHS Mini System Controls
-SLAVES- are shown.
Press the "↑" and "↓" buttons and confirm with "OK" to add the desired control.
The "CAN-BUS Setup" submenu then reopens.
Based on this scheme, all connected KHS Mini System Control -SLAVE- are added to the
-MASTER-.
Ill. 8.23 Adding devices
When all the devices have been added, they are displayed in the main view as shown in
Illustration 8.23.
Ill. 8.24 General plan
Manual KHS Mini System Control MASTER
001206
001187
001185
001278
Note:
Check to see if the antenna icon can
always be seen or if the LEDs glow green
on all KHS Mini System Controls. Only
then has
established.
24
-
a proper connection been
