8.

Configuration

The KHS Mini System Control -MASTER- can be configured through the internal menu
driven operation or through a web server. Furthermore, the saved configurations can be
uploaded through a USB interface to the KHS Mini System Control -MASTER-.
The sample project shown below shows the basic controller types of the KHS Mini System
Control -MASTER-. The individual configuration facilities of the KHS Mini System Control
-MASTER- is elucidated using exemplary configurations of the sample project in the
following chapters (Ill 8.1 and 8.2).
After all units, as described in Chapter 6, have been mounted and electrically connected,
the actual configuration of the individual KHS Mini System Controls starts.
The sample project has one KHS Mini System Control -MASTER- and two KHS Mini
System Controls -SLAVE-. The system controls shown in Illustration 8.1 are intended to
secure the cold-water line against stagnation and leaks in a fictitious building.
Consumers
Sensor cable
230V cable
CAN bus cable
GF
Valve
cellar
Cellar

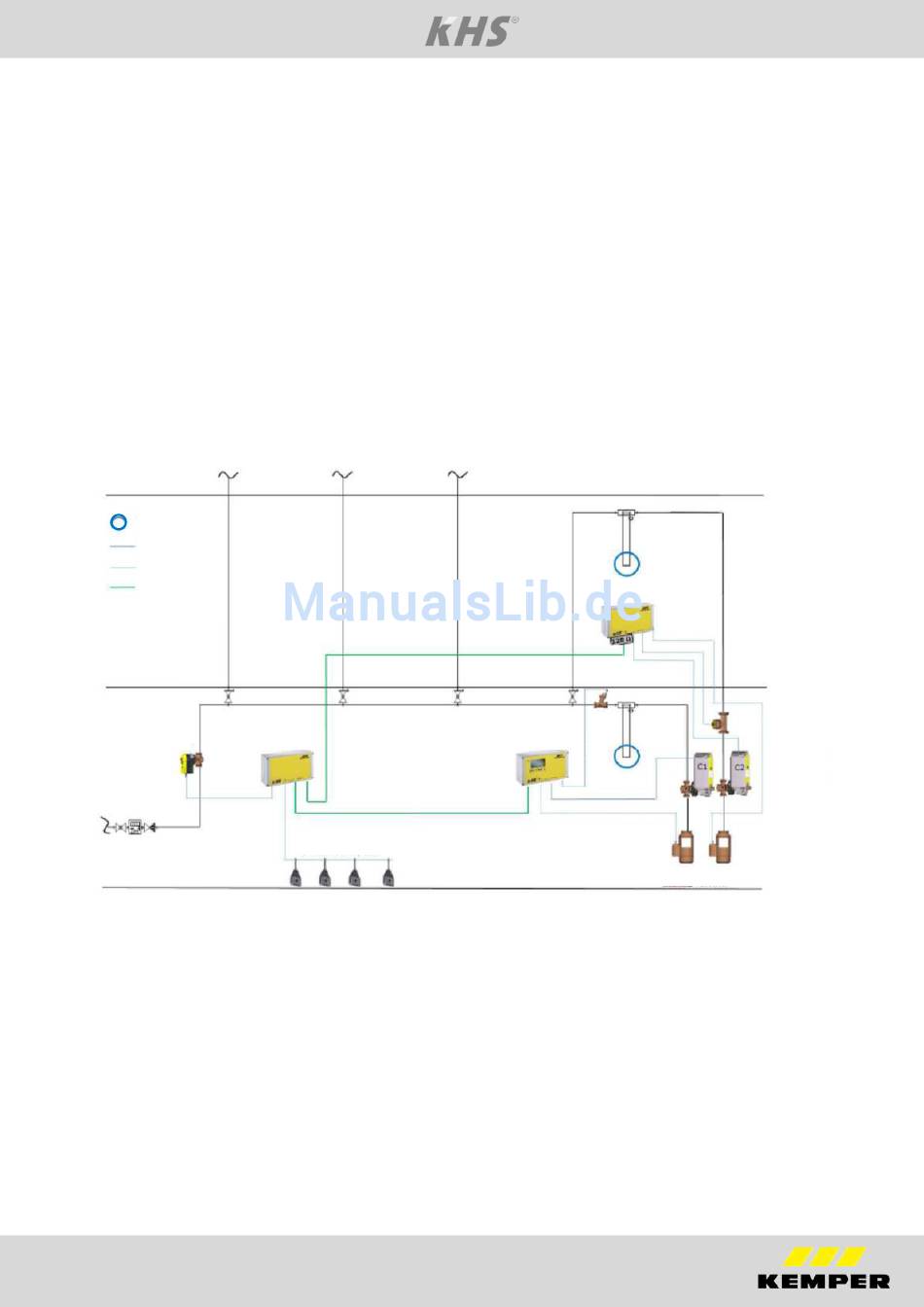

Ill. 8.1 Sample project
Manual KHS Mini System Control MASTER
SLAVE 1.1
Water sensor 1-4; Cellar
SLAVE 1.2
MASTER
16
Volume flow sensor 1;
Cellar
Valve C1;
Cellar
Valve C2;
Cellar,
Drain + overflow
monitor 1-2; Cellar
