6.2

Electrical installation KHS Mini System Control

The following chapter explains the electrical installation. The electrical connections are
made through screwless-type terminals.
6.2.1 Terminal description -MASTER- and -SLAVE-
Illustration: Control board with terminals
1. Flushing valve switching output 230
2. Flushing valve voltage output 230 V (only on 68604)
3. Flushing valve N _______________________________________
4. Power supply - LI 230V__________________________________
5. Power supply – N ______________________________________
6. External input 230 V (Function only with -MASTER-)
7. Grounded conductor PE
8. CAN-Bus HIGH 1 ______________________________________
9. CAN-Bus LOW 1_______________________________________
10. CAN-Bus GND 1 ______________________________________
11. CAN-Bus HIGH 2 _____________________________________
12. CAN-Bus LOW 2______________________________________
13. CAN-Bus GND 2 ______________________________________
14 Flow measurement valve - Voltage output 5V
15 Flow measurement valve - Flow input
16 Flow measurement valve - no function
17. Flow measurement valve GND
18. Pt 1000 Input 1 _______________________________________
19. Pt 1000 Input 2 _______________________________________
20. Pt 1000 Input 3 _______________________________________
21. Pt 1000 Input 4 _______________________________________
22. Drain floating switch (strands interchangeable)
23. Drain floating switch (strands interchangeable)
[Terminals 22 and 23 can also be used to connect
the water sensor]
PC-interface
__________________________
(only for –MASTER-:
jack plug, no clamp)
24. Alarm relay voltage input external
25. External monitor voltage error
26. External monitor voltage operation

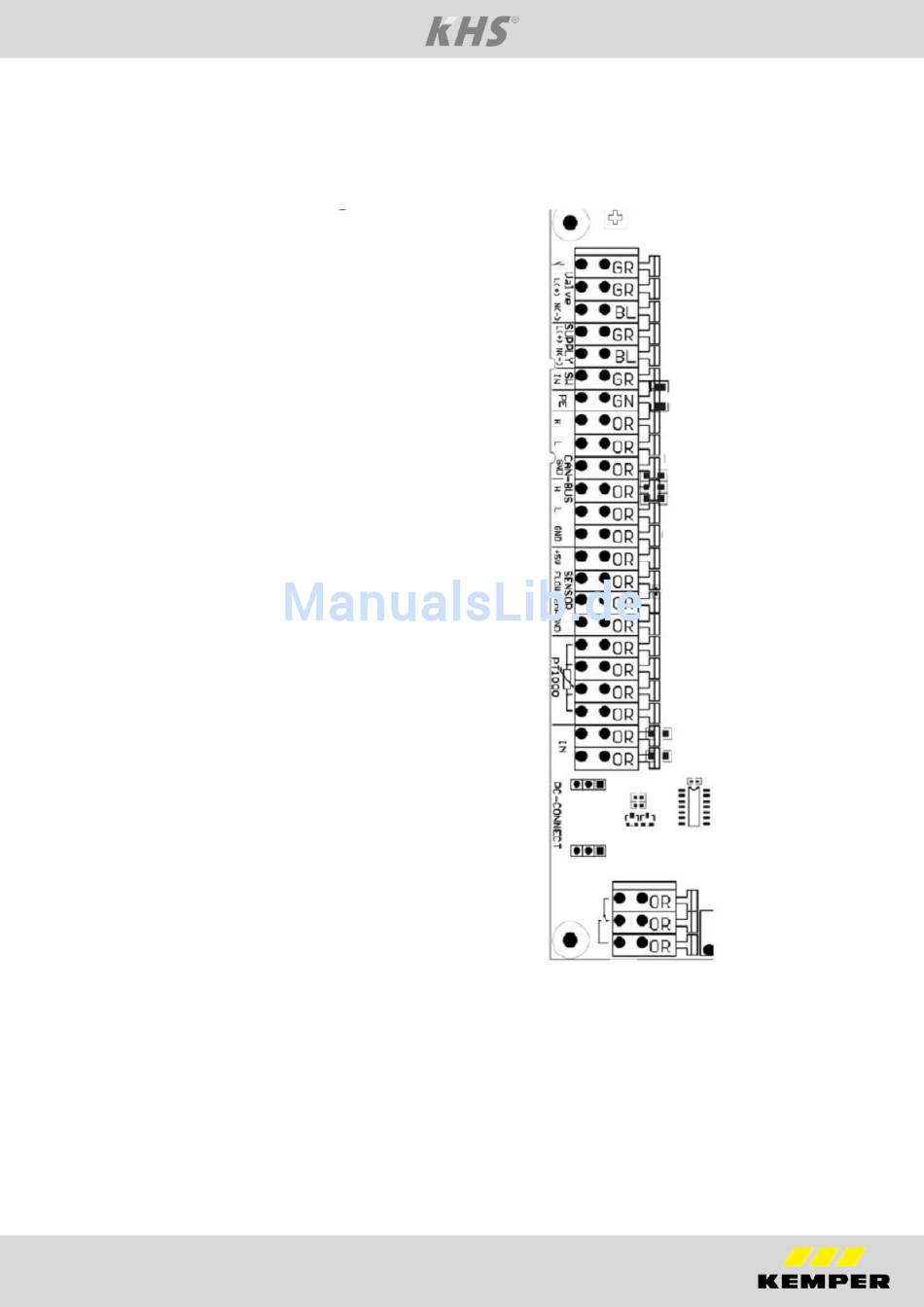

Ill. 6.2 Cut-out view of the -MASTER- and -SLAVE- controller board with terminals
Manual KHS Mini System Control MASTER
________________________
___________
___________
_________________________________
________________
______________________
_____________________
___________________________
______________
________________________
___________________________
________________________
8
