8.1.2 General plan

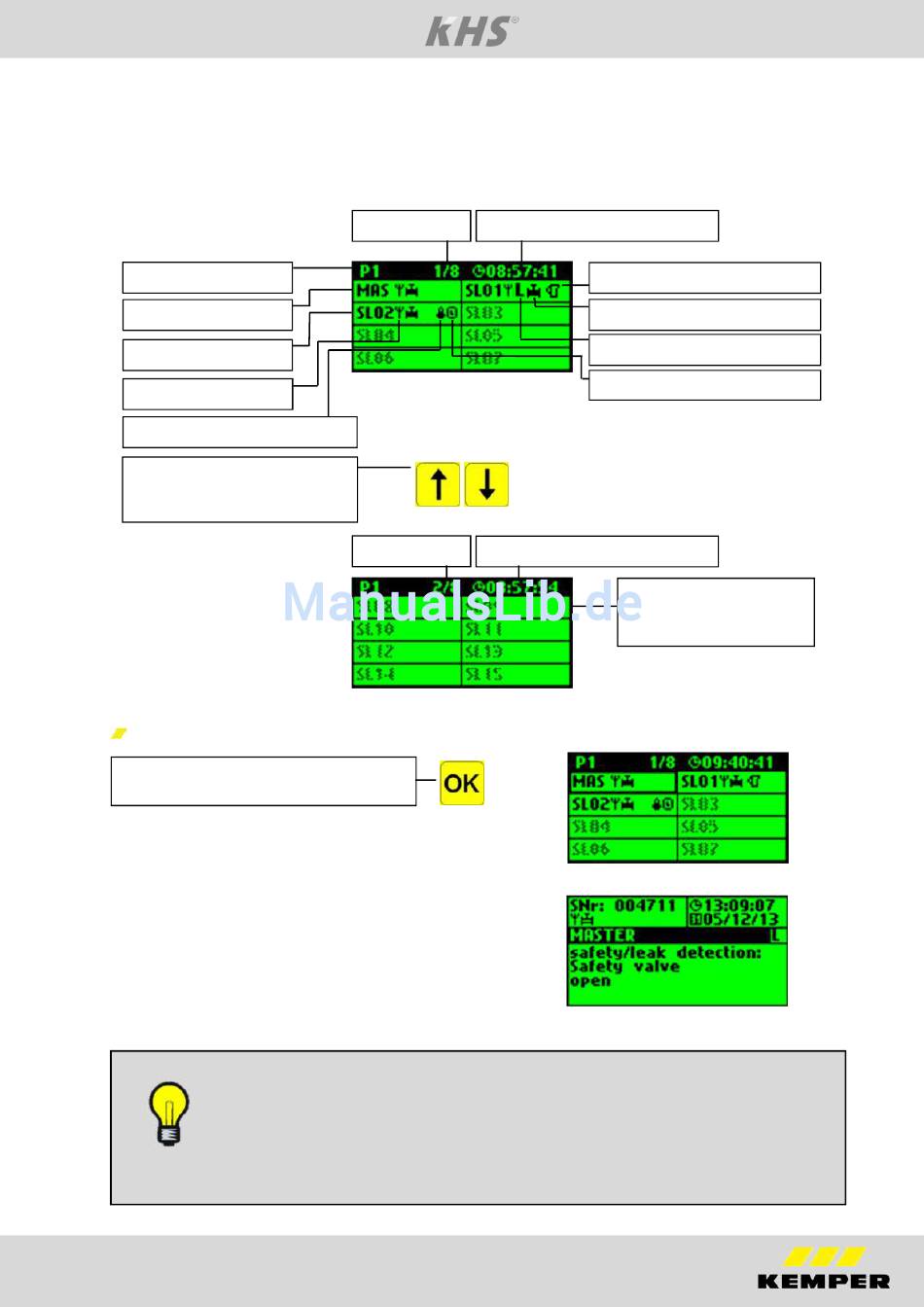

The following illustrations explain the "General plan" menu interface of the KHS Mini
System Control -MASTER-. The illustrations show the "General plan" based on an
exemplary configuration of a system with one KHS Mini System Control -MASTER- and
two KHS Mini System Controls -SLAVE-.
Program 1 activated
Master
Slave
CAN-BUS activated
Temperature sensor applied
"Scroll back/forwards"
changes between Sheets 1 to 8
Changes from "General plan" into "Detailed overview"
1x "OK" Selects control (frame*)
2x "OK" Changes into detailed
*: A frame appears around the entry of the first
controller (see Ill 8.5 upper left) on the selected
sheet (1 to 8). Pressing the OK button again
opens the "Detailed overview" (see Ill. 8.6) of
the selected control. Optionally, press the ↑ or ↓
button to select another active controller. It is
indicated again through a flashing frame. If you
now press the OK button, the detailed overview
of another controller appears.
Legend symbols
Water exchange activated:
Manual KHS Mini System Control MASTER
Sheet 1 of 8 Time (changes with date)
Ill. 8.3 General plan 1/8
Sheet 2 of 8 Time (changes with date)
Ill. 8.4 General plan 2/8
Valve symbol is framed
Time control -> Time symbol flashes
Volume control -> Volume symbol flashes
Temperature control -> Temperature symbol flashes
18
Volume flow sensor applied
Flushing valve applied
"L" Leakage
Time control activated
Empty slave slots (up to
62 system controls -
SLAVE- possible)
Ill. 8.5 Controller selection
Ill. 8.6 Detailed overview
