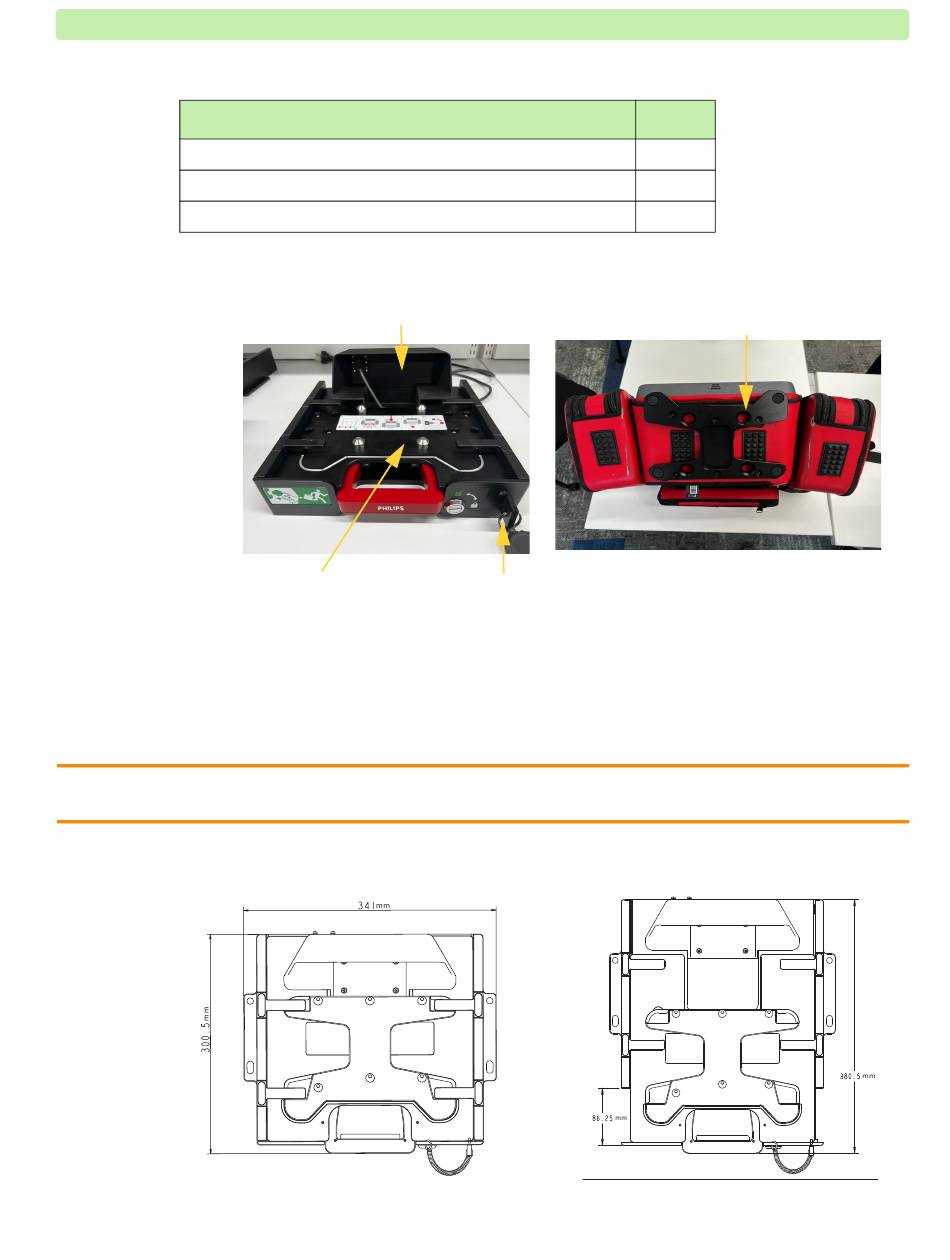

Installing The Docking Station To An Ambulance Shelf - Philips Heartstart Intrepid Nachtrag

Table 4
Docking station adapter
T-shape key
Hex screwdriver
Figure 1
Docking station base

Installing the Docking Station to an Ambulance Shelf

Reserve adequate space on the ambulance shelf before installing the docking station. Ensure there is
enough depth on the shelf when the docking station is fully extended. Drill pilot holes in the ambulance
shelf if necessary. See
the mounting screw holes.
CAUTION: The docking station must be installed by an equipment technician. Connect and verify that the
docking station is connected to a protective ground.
Figure 2
Docking Station Part List (Continued)
Description
Docking Station Overview
Docking station back cover
Figure 2 for the dimensions of the docking station and
Docking Station Dimensions
HeartStart Intrepid Instructions for Use Addendum
Quantity
1
1
1
T-shape key
Docking station adapter
Figure 3 for the positions of
Ambulance shelf edge
3
