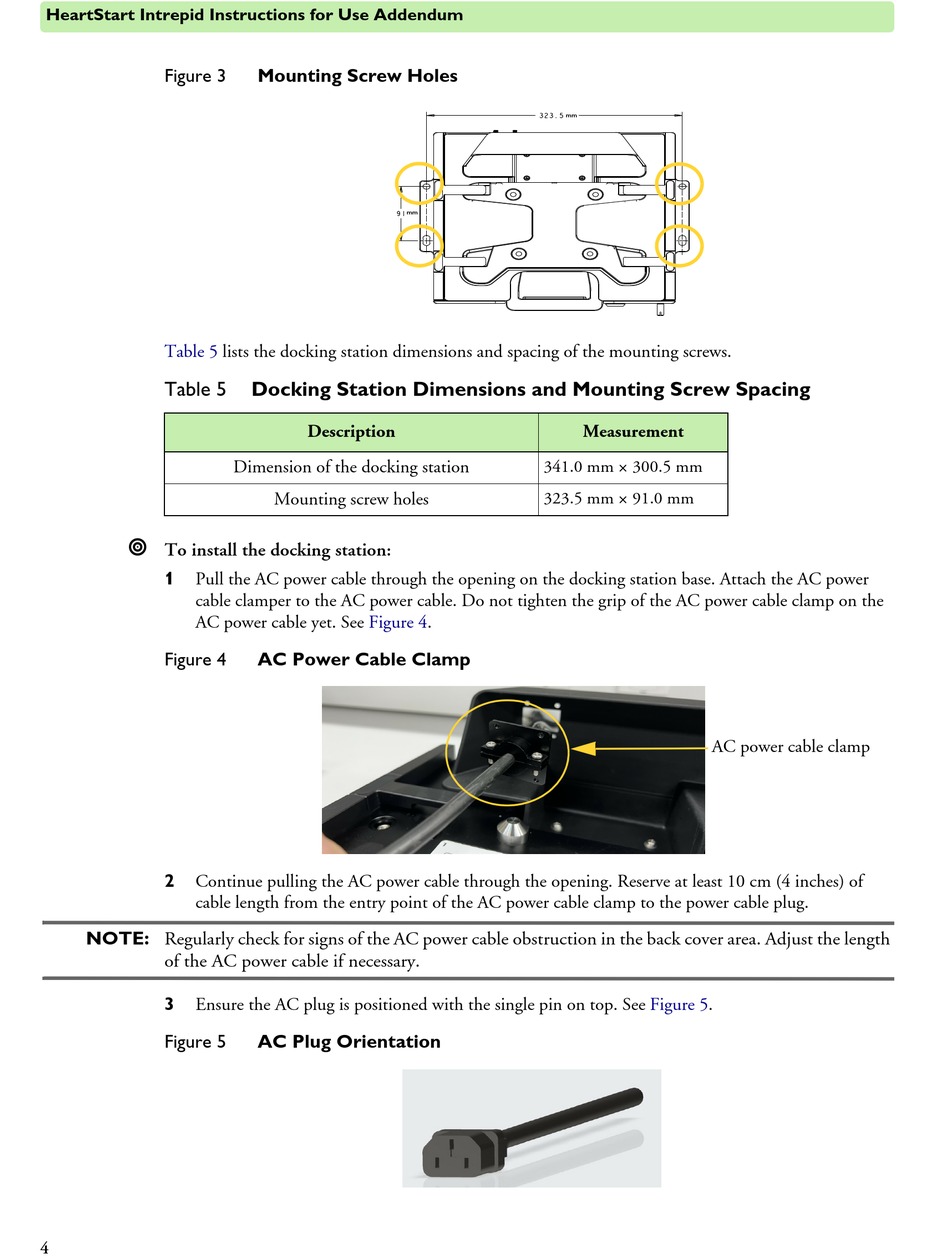

HeartStart Intrepid Instructions for Use Addendum
Figure 3
Table 5
Table 5

To install the docking station:
1 Pull the AC power cable through the opening on the docking station base. Attach the AC power
cable clamper to the AC power cable. Do not tighten the grip of the AC power cable clamp on the
AC power cable yet. See
Figure 4
2 Continue pulling the AC power cable through the opening. Reserve at least 10 cm (4 inches) of
cable length from the entry point of the AC power cable clamp to the power cable plug.
NOTE: Regularly check for signs of the AC power cable obstruction in the back cover area. Adjust the length
of the AC power cable if necessary.
3 Ensure the AC plug is positioned with the single pin on top. See
Figure 5
4
Mounting Screw Holes
lists the docking station dimensions and spacing of the mounting screws.
Docking Station Dimensions and Mounting Screw Spacing
Description
Dimension of the docking station
Mounting screw holes
Figure
AC Power Cable Clamp
AC Plug Orientation
Measurement
341.0 mm
323.5 mm
4.
×
300.5 mm
×
91.0 mm
AC power cable clamp
Figure 5.
