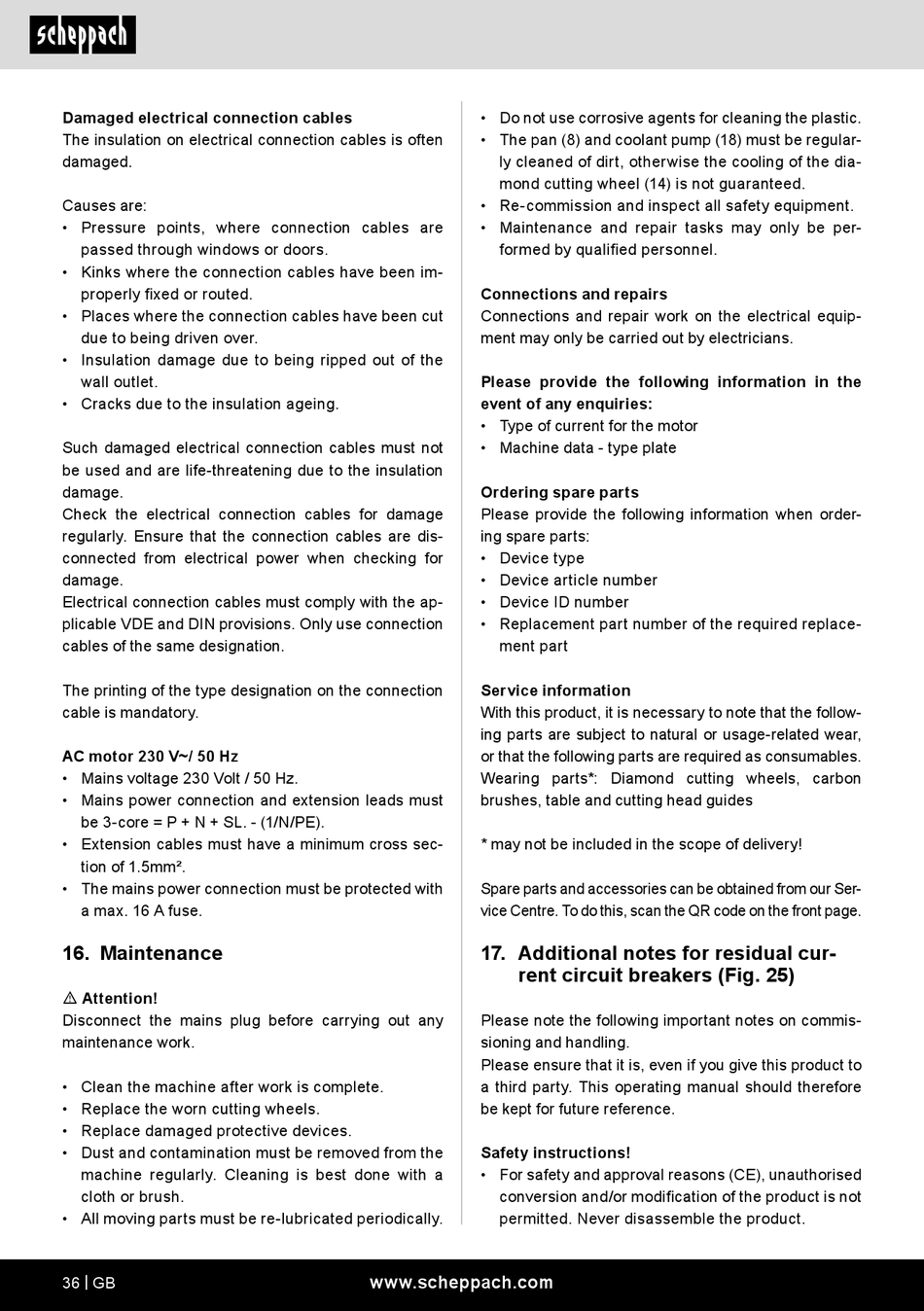

Damaged electrical connection cables
The insulation on electrical connection cables is often
damaged.
Causes are:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cables have been im-
properly fixed or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables of the same designation.
The printing of the type designation on the connection
cable is mandatory.
AC motor 230 V~/ 50 Hz
• Mains voltage 230 Volt / 50 Hz.
• Mains power connection and extension leads must
be 3-core = P + N + SL. - (1/N/PE).
• Extension cables must have a minimum cross sec-
tion of 1.5mm².
• The mains power connection must be protected with
a max. 16 A fuse.
16. Maintenance
m Attention!
Disconnect the mains plug before carrying out any
maintenance work.
• Clean the machine after work is complete.
• Replace the worn cutting wheels.
• Replace damaged protective devices.
• Dust and contamination must be removed from the
machine regularly. Cleaning is best done with a
cloth or brush.
• All moving parts must be re-lubricated periodically.
36 | GB
• Do not use corrosive agents for cleaning the plastic.
• The pan (8) and coolant pump (18) must be regular-
ly cleaned of dirt, otherwise the cooling of the dia-
mond cutting wheel (14) is not guaranteed.
• Re-commission and inspect all safety equipment.
• Maintenance and repair tasks may only be per-
formed by qualified personnel.
Connections and repairs
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the
event of any enquiries:
• Type of current for the motor
• Machine data - type plate
Ordering spare parts
Please provide the following information when order-
ing spare parts:
• Device type
• Device article number
• Device ID number
• Replacement part number of the required replace-
ment part
Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consumables.
Wearing parts*: Diamond cutting wheels, carbon
brushes, table and cutting head guides
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from our Ser-
vice Centre. To do this, scan the QR code on the front page.
17. Additional notes for residual cur-
rent circuit breakers (Fig. 25)
Please note the following important notes on commis-
sioning and handling.
Please ensure that it is, even if you give this product to
a third party. This operating manual should therefore
be kept for future reference.
Safety instructions!
• For safety and approval reasons (CE), unauthorised
conversion and/or modification of the product is not
permitted. Never disassemble the product.
