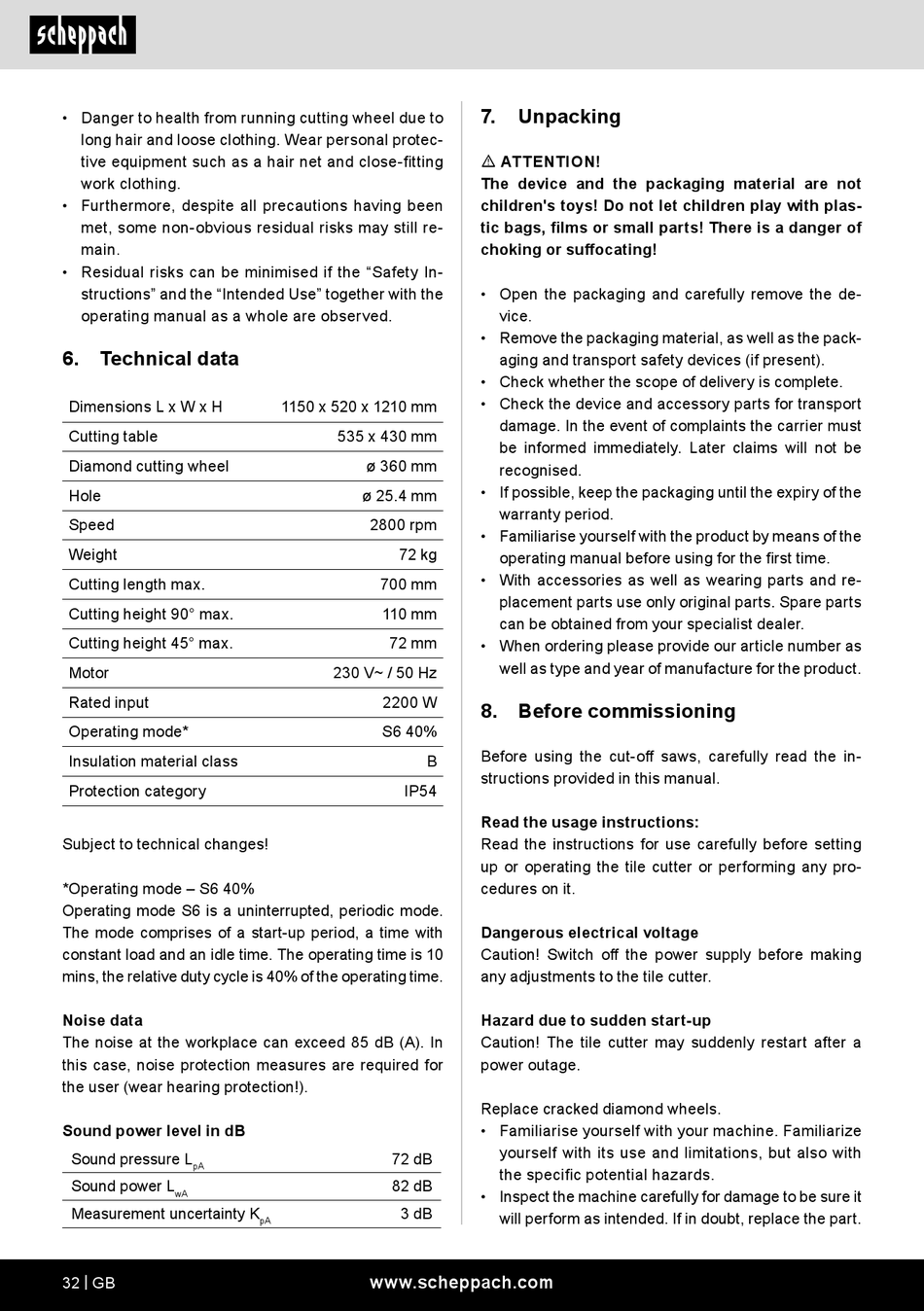

Scheppach HSM3500 Originalbetriebsanleitung Seite 32

• Danger to health from running cutting wheel due to
long hair and loose clothing. Wear personal protec-
tive equipment such as a hair net and close-fitting
work clothing.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Safety In-
structions" and the "Intended Use" together with the
operating manual as a whole are observed.
6. Technical data
Dimensions L x W x H
Cutting table
Diamond cutting wheel
Hole
Speed
Weight
Cutting length max.
Cutting height 90° max.
Cutting height 45° max.
Motor
Rated input
Operating mode*
Insulation material class
Protection category
Subject to technical changes!
*Operating mode – S6 40%
Operating mode S6 is a uninterrupted, periodic mode.
The mode comprises of a start-up period, a time with
constant load and an idle time. The operating time is 10
mins, the relative duty cycle is 40% of the operating time.
Noise data
The noise at the workplace can exceed 85 dB (A). In
this case, noise protection measures are required for
the user (wear hearing protection!).
Sound power level in dB
Sound pressure L
pA
Sound power L
wA
Measurement uncertainty K
32 | GB
1150 x 520 x 1210 mm
535 x 430 mm
ø 360 mm
ø 25.4 mm
2800 rpm
72 kg
700 mm
110 mm
72 mm
230 V~ / 50 Hz
2200 W
S6 40%
B
IP54
72 dB
82 dB
3 dB
pA
www.scheppach.com
7. Unpacking
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
8. Before commissioning
Before using the cut-off saws, carefully read the in-
structions provided in this manual.
Read the usage instructions:
Read the instructions for use carefully before setting
up or operating the tile cutter or performing any pro-
cedures on it.
Dangerous electrical voltage
Caution! Switch off the power supply before making
any adjustments to the tile cutter.
Hazard due to sudden start-up
Caution! The tile cutter may suddenly restart after a
power outage.
Replace cracked diamond wheels.
• Familiarise yourself with your machine. Familiarize
yourself with its use and limitations, but also with
the specific potential hazards.
• Inspect the machine carefully for damage to be sure it
will perform as intended. If in doubt, replace the part.
