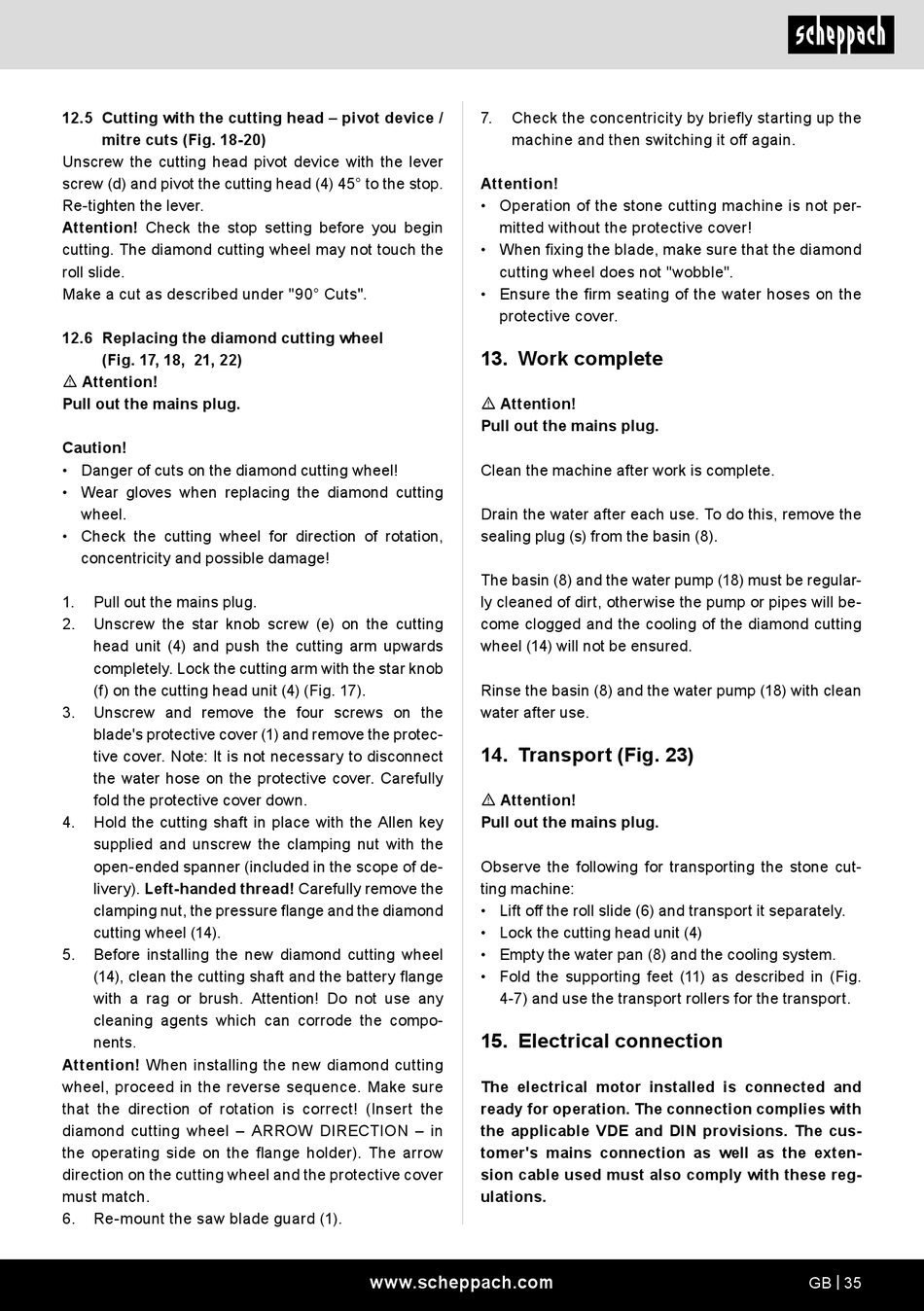

Scheppach HSM3500 Originalbetriebsanleitung Seite 35

12.5 Cutting with the cutting head – pivot device /
mitre cuts (Fig. 18-20)
Unscrew the cutting head pivot device with the lever
screw (d) and pivot the cutting head (4) 45° to the stop.
Re-tighten the lever.
Attention! Check the stop setting before you begin
cutting. The diamond cutting wheel may not touch the
roll slide.
Make a cut as described under "90° Cuts".
12.6 Replacing the diamond cutting wheel
(Fig. 17, 18, 21, 22)
m Attention!
Pull out the mains plug.
Caution!
• Danger of cuts on the diamond cutting wheel!
• Wear gloves when replacing the diamond cutting
wheel.
• Check the cutting wheel for direction of rotation,
concentricity and possible damage!
1. Pull out the mains plug.
2. Unscrew the star knob screw (e) on the cutting
head unit (4) and push the cutting arm upwards
completely. Lock the cutting arm with the star knob
(f) on the cutting head unit (4) (Fig. 17).
3. Unscrew and remove the four screws on the
blade's protective cover (1) and remove the protec-
tive cover. Note: It is not necessary to disconnect
the water hose on the protective cover. Carefully
fold the protective cover down.
4. Hold the cutting shaft in place with the Allen key
supplied and unscrew the clamping nut with the
open-ended spanner (included in the scope of de-
livery). Left-handed thread! Carefully remove the
clamping nut, the pressure flange and the diamond
cutting wheel (14).
5. Before installing the new diamond cutting wheel
(14), clean the cutting shaft and the battery flange
with a rag or brush. Attention! Do not use any
cleaning agents which can corrode the compo-
nents.
Attention! When installing the new diamond cutting
wheel, proceed in the reverse sequence. Make sure
that the direction of rotation is correct! (Insert the
diamond cutting wheel – ARROW DIRECTION – in
the operating side on the flange holder). The arrow
direction on the cutting wheel and the protective cover
must match.
6. Re-mount the saw blade guard (1).
7. Check the concentricity by briefly starting up the
machine and then switching it off again.
Attention!
• Operation of the stone cutting machine is not per-
mitted without the protective cover!
• When fixing the blade, make sure that the diamond
cutting wheel does not "wobble".
• Ensure the firm seating of the water hoses on the
protective cover.
13. Work complete
m Attention!
Pull out the mains plug.
Clean the machine after work is complete.
Drain the water after each use. To do this, remove the
sealing plug (s) from the basin (8).
The basin (8) and the water pump (18) must be regular-
ly cleaned of dirt, otherwise the pump or pipes will be-
come clogged and the cooling of the diamond cutting
wheel (14) will not be ensured.
Rinse the basin (8) and the water pump (18) with clean
water after use.
14. Transport (Fig. 23)
m Attention!
Pull out the mains plug.
Observe the following for transporting the stone cut-
ting machine:
• Lift off the roll slide (6) and transport it separately.
• Lock the cutting head unit (4)
• Empty the water pan (8) and the cooling system.
• Fold the supporting feet (11) as described in (Fig.
4-7) and use the transport rollers for the transport.
15. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The cus-
tomer's mains connection as well as the exten-
sion cable used must also comply with these reg-
ulations.
