7.4.4 Installing the drain pan
If desired, the drain pan included in the scope of delivery can be connected to
the machine and wastewater connection.

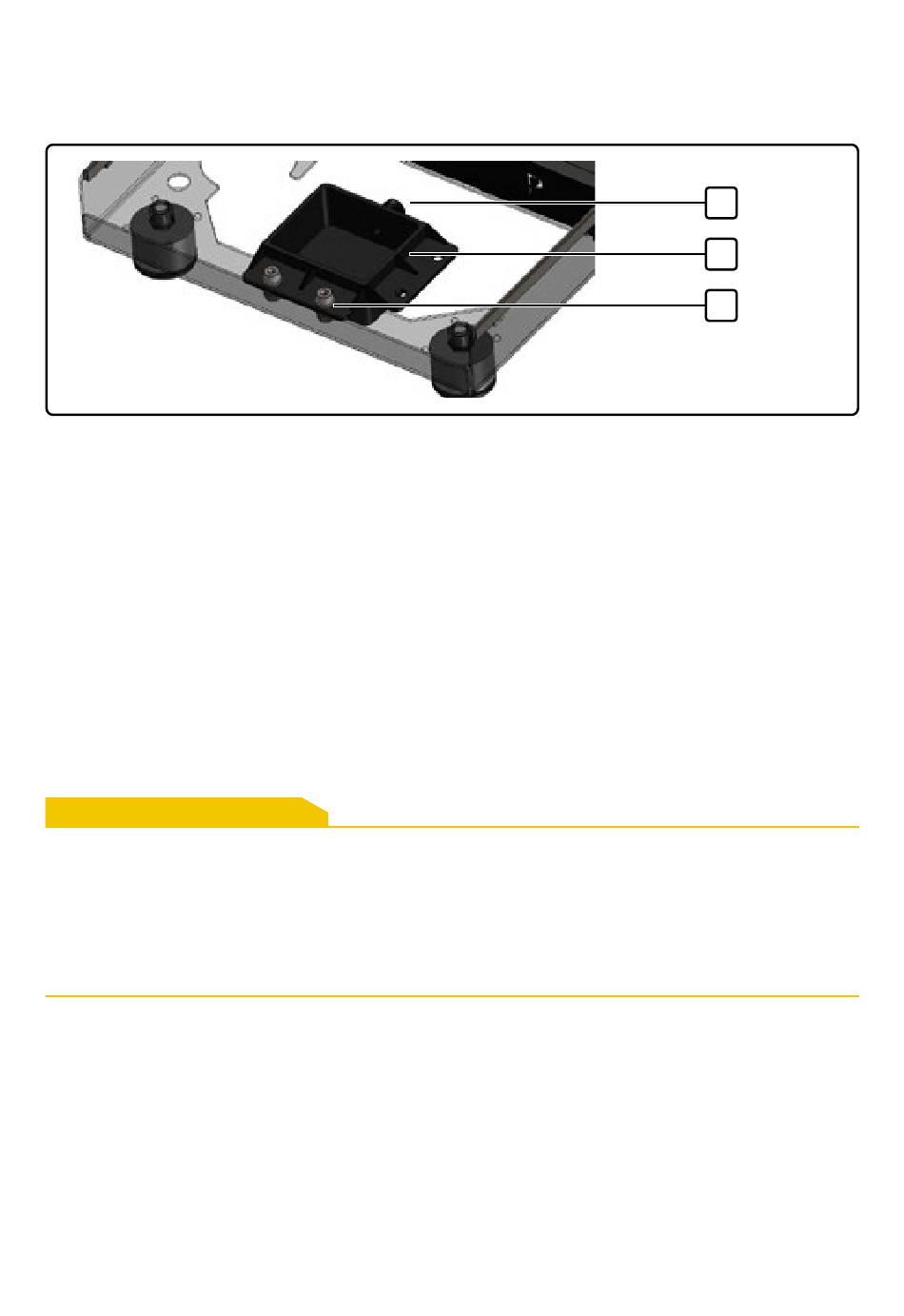

Fig. 5
Drain pan, installed
1 Connection for wastewater hose
2 Drain pan
1. Fasten the drain pan (2, Fig. 5) to the drip tray holder.
2. Connect the wastewater hose to the connection (1, Fig. 5) and secure
with the hose clamp.
3. Connect the threaded connection to the other end of the hose.
4. Connect the wastewater hose to the wastewater connection.
7.5 Installing the accessories

CAUTION
Risk of injury due to sharp edges
The edges of the drip tray, grid, and cup raiser are sharp and may cause
injuries.
• Always be careful when touching the edges.
• Avoid pressing too hard on them.
