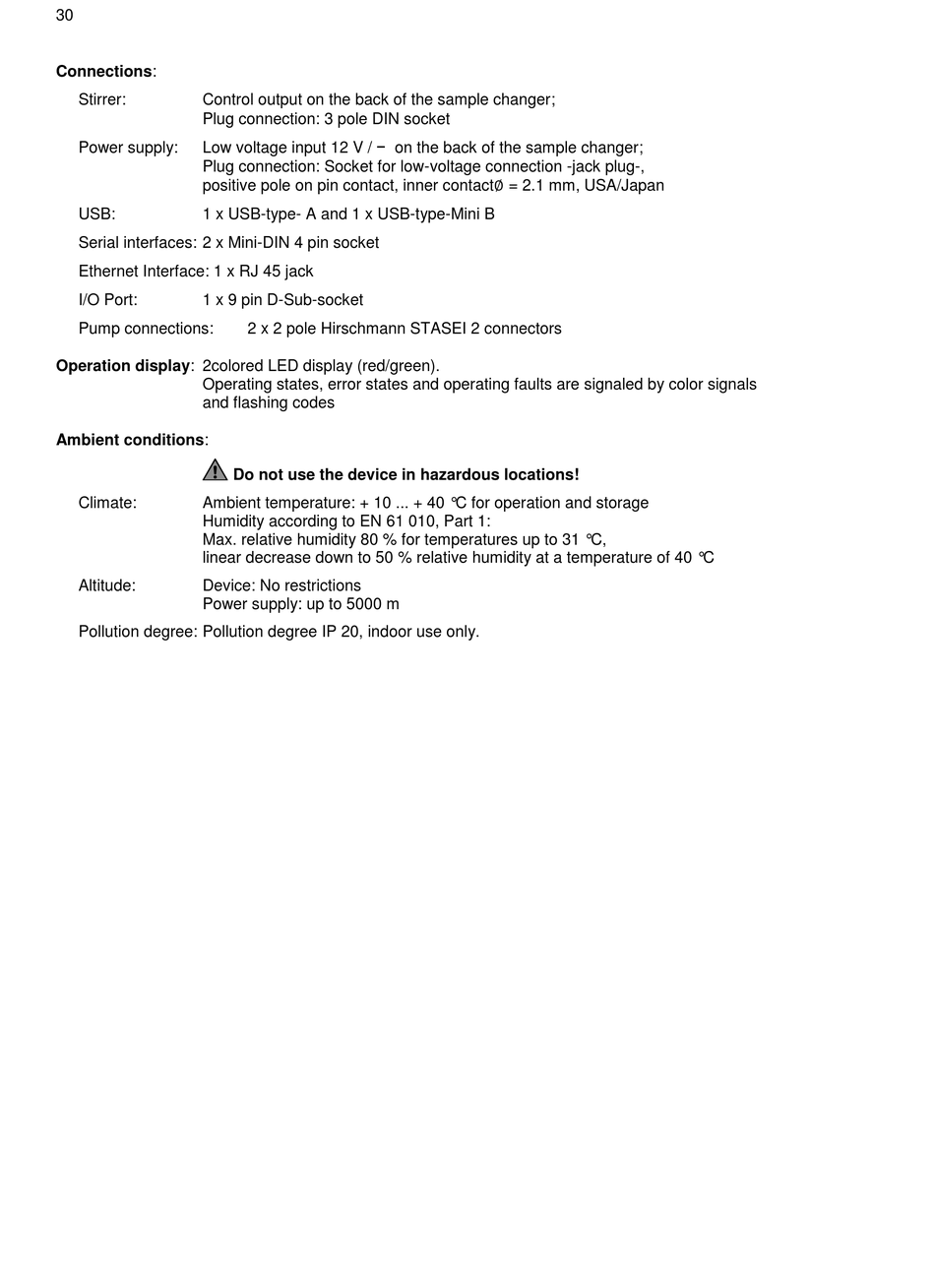

30
Connections:
Stirrer:
Control output on the back of the sample changer;
Plug connection: 3 pole DIN socket
Low voltage input 12 V / − on the back of the sample changer;
Power supply:
Plug connection: Socket for low-voltage connection -jack plug-,
positive pole on pin contact, inner contact∅ = 2.1 mm, USA/Japan
USB:
1 x USB-type- A and 1 x USB-type-Mini B
Serial interfaces: 2 x Mini-DIN 4 pin socket
Ethernet Interface: 1 x RJ 45 jack
I/O Port:
1 x 9 pin D-Sub-socket
Pump connections:
Operation display: 2colored LED display (red/green).
Operating states, error states and operating faults are signaled by color signals
and flashing codes
Ambient conditions:
Climate:
Ambient temperature: + 10 ... + 40 °C for operation and storage
Humidity according to EN 61 010, Part 1:
Max. relative humidity 80 % for temperatures up to 31 °C,
linear decrease down to 50 % relative humidity at a temperature of 40 °C
Altitude:
Device: No restrictions
Power supply: up to 5000 m
Pollution degree: Pollution degree IP 20, indoor use only.
2 x 2 pole Hirschmann STASEI 2 connectors
Do not use the device in hazardous locations!
