Functional description

1 2

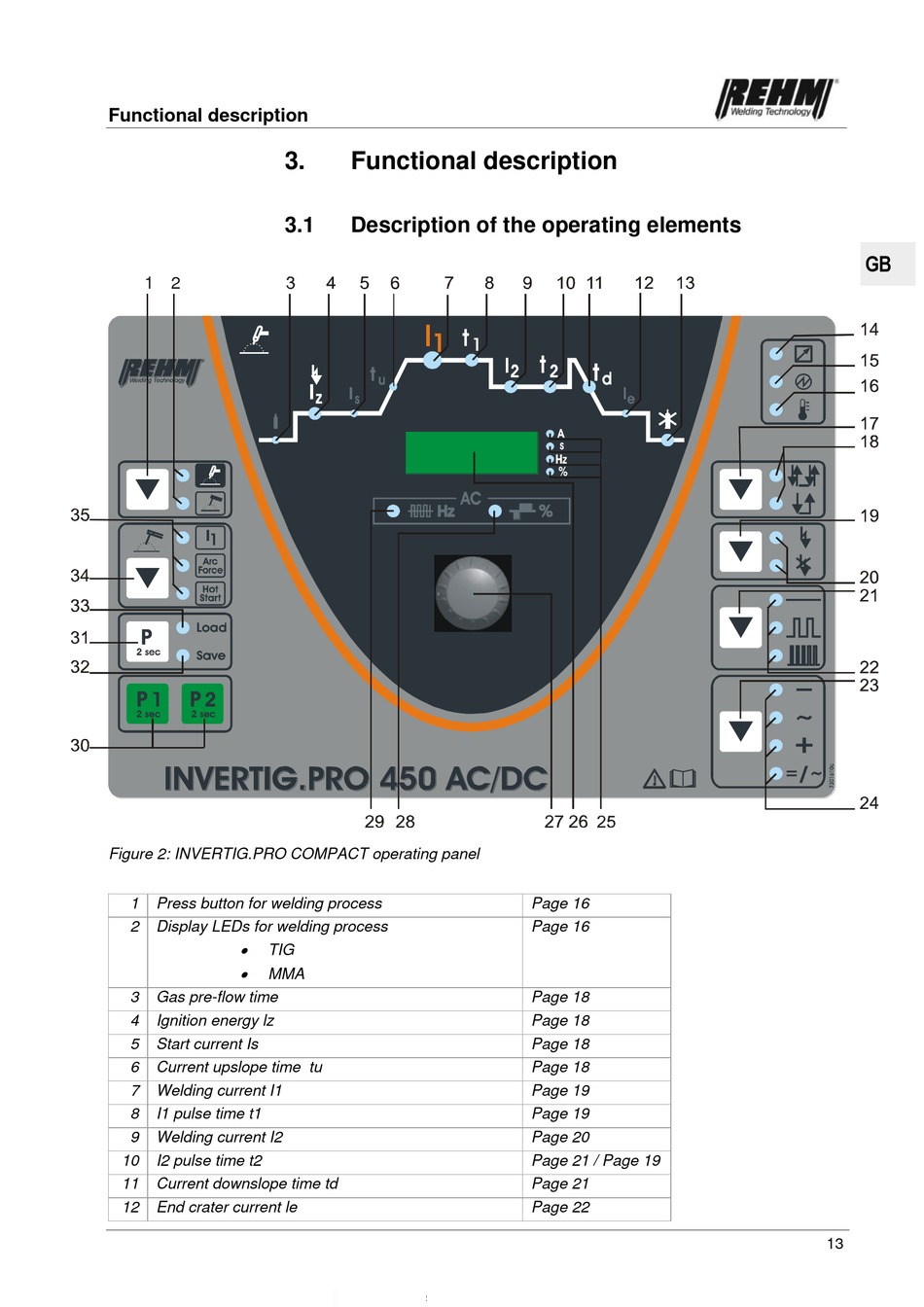

Figure 2: INVERTIG.PRO COMPACT operating panel
1 Press button for welding process
2 Display LEDs for welding process

TIG

MMA
3 Gas pre-flow time
4 Ignition energy lz
5 Start current Is
6 Current upslope time tu
7 Welding current I1
8 I1 pulse time t1
9 Welding current I2
10 I2 pulse time t2
11 Current downslope time td
12 End crater current le
3. Functional description
3.1

Description of the operating elements

Page 16
Page 16
Page 18
Page 18
Page 18
Page 18
Page 19
Page 19
Page 20
Page 21 / Page 19
Page 21
Page 22
