ASSEMBLY MANUAL

CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

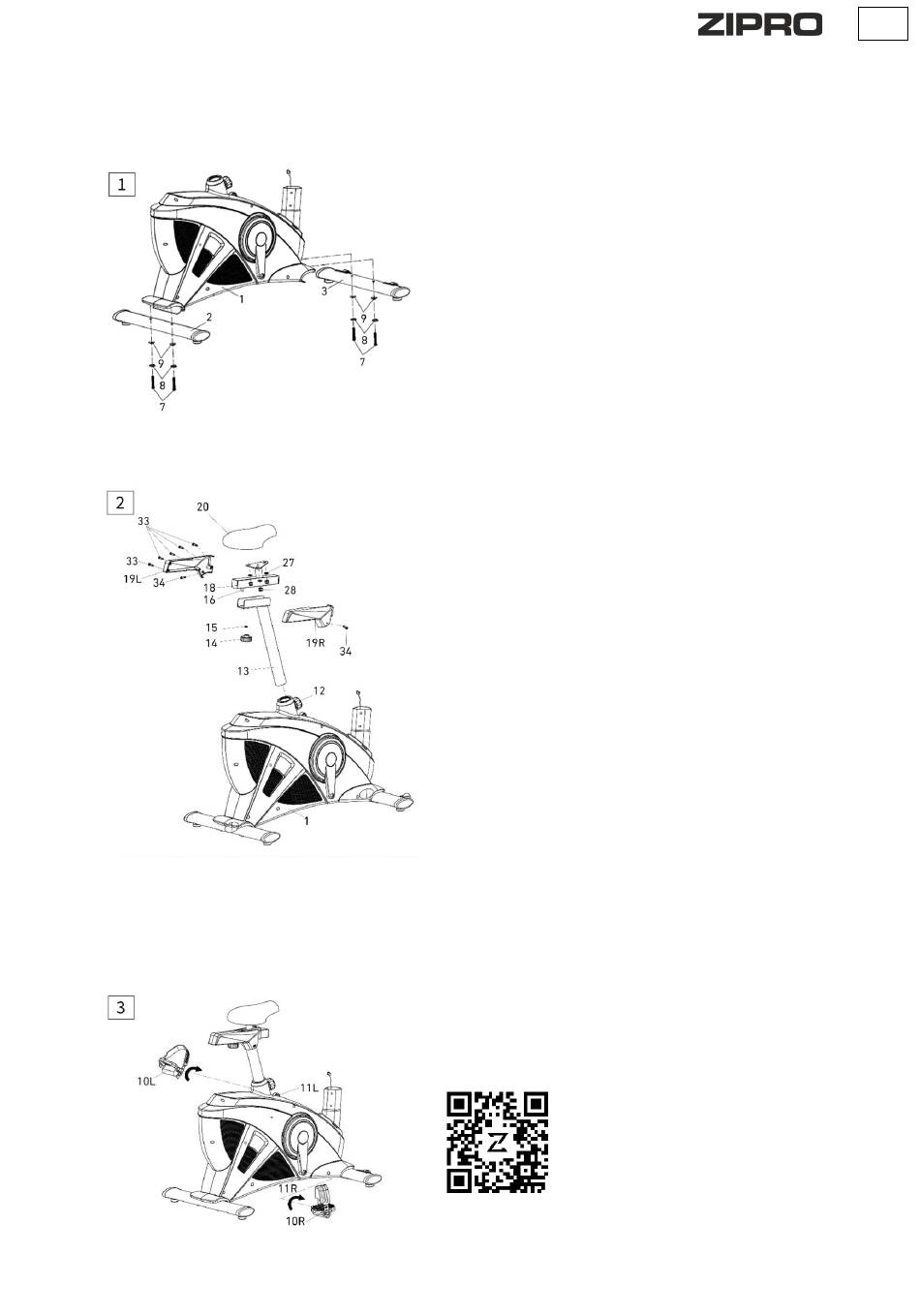

STEP 1.
Fix the rear (2) and front base (3) to the main frame (1) using hexagonal bolt
(7), curved washers (8), and hexagonal bolt nuts (9).
ATTENTION! Remove any plastic or cardboard safety inserts before assembly.
CAUTION! The front base has handling wheels.
STEP 2.
Fix the saddle (20) to the saddle guide (18) using locknuts (28) and flat washers
(27). Fix the guide (18) with the saddle (20) to the saddle post (13).
Set the saddle to the right position and lock it with the horizontal adjustment
knob (14), washer (15) and U-bracket for horizontal saddle positioning (16).
Slide the post (13) with the saddle (18) into the rear part of the main frame.
Position the saddle at the desired height and lock it with the vertical
adjustment knob (12).
Using the cross-head bolts (33 and 34), screw the left and right saddle cover
(19L/R) to the saddle post (13).
CAUTION! Do not exceed the maximum and minimum height when adjusting
saddle height.
CAUTION! Before using the device, make sure the saddle is stable in the guide.
STEP 3.
Screw the right and left pedal (10L/R) to the crank (11L/R). Screw the right
pedal bolt (10R) on clockwise. Screw the left pedal bolt (10L)
counterclockwise.
CAUTION! The right pedal is marked 'R' and the left pedal is marked 'L'.
See how to complete this step.
Scan the QR code and watch the video.
