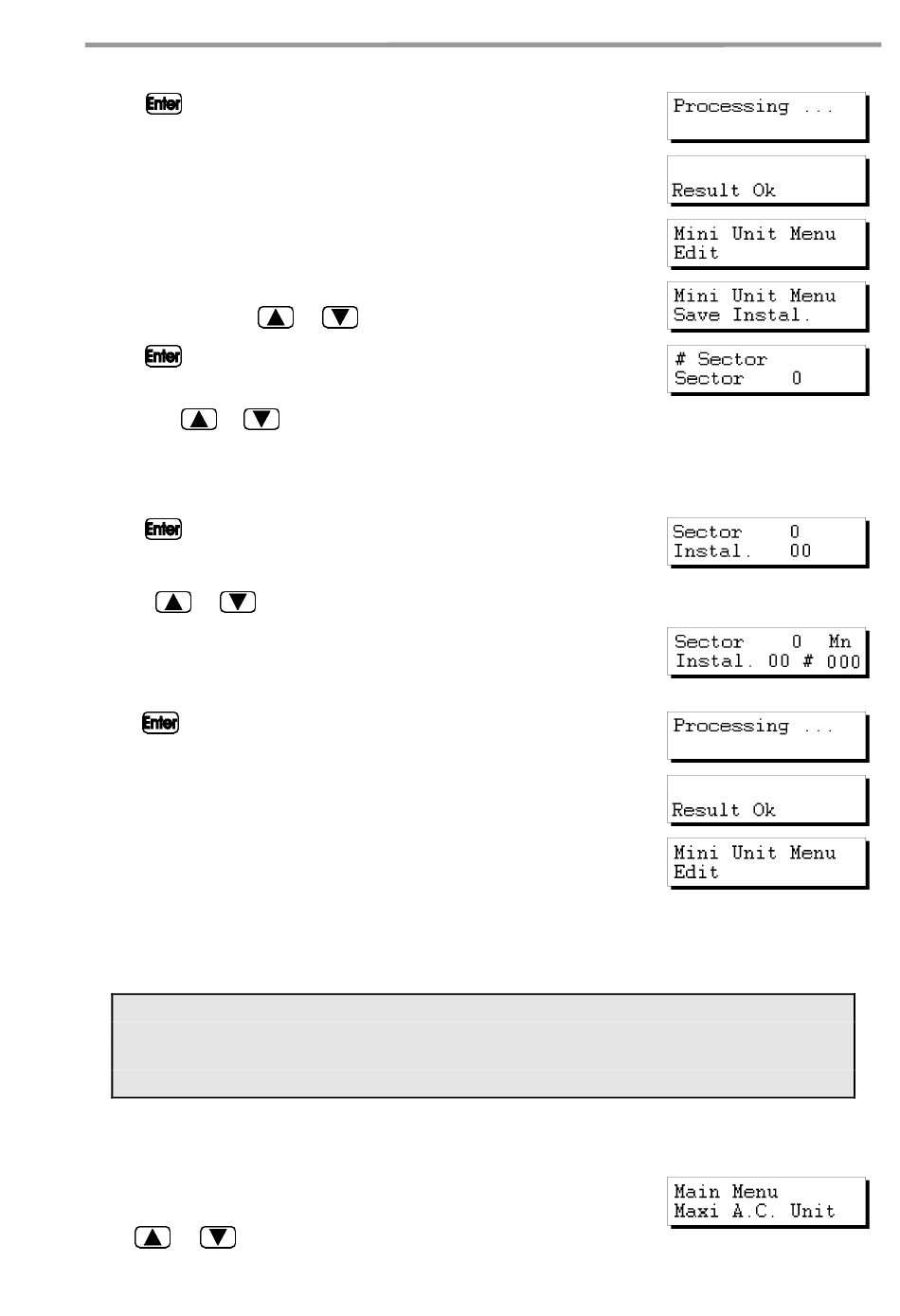

Press . The following message will appear:
Followed by:
The programmer will then return to the menu:
In order to save a copy of the installation in the memory
cartridge, use the
Press . The following message will appear:
Using the or
to be saved. If another installation is already saved in this sector, the Portable
Programmer will indicate this on the screen by means of the abbreviations Rc if it
is a receiver installation, Mn if it is a Mini-A.C., or Mx if it is a Maxi-A.C..
Press to access the screen that enables the selection
of the installation number where the installation being con-
figured is to be stored. This number can be selected by us-
ing the or
If the number is already occupied, it will be accompanied by the
symbol #. In this case, you must decide whether to overwrite the
previously stored installation or select a different number.
Press . The following message will appear momentarily:
Followed by:
The Programmer will automatically return to the Mini Unit
Menu/Edit.
Switch off the power supply of the Portable Programmer, remove the memory card
and insert it correctly in the receiver (remembering that this must be switched off).
The installation is complete.
It is very important to note down the installation number and the sector of
the memory cartridge where it has been stored, together with the position
number and the code of each transmitter, in order subsequently to be able
to maintain the installation efficiently.

• Installing a Maxi-A.C. Unit

If the type of receiver element to be used is a Maxi-A.C.
Unit, select the Maxi A.C. Unit Menu using the direction
keys or .
or keys to locate the menu:
keys, select the number of the sector where the installation is
keys.
33
Creating installations
