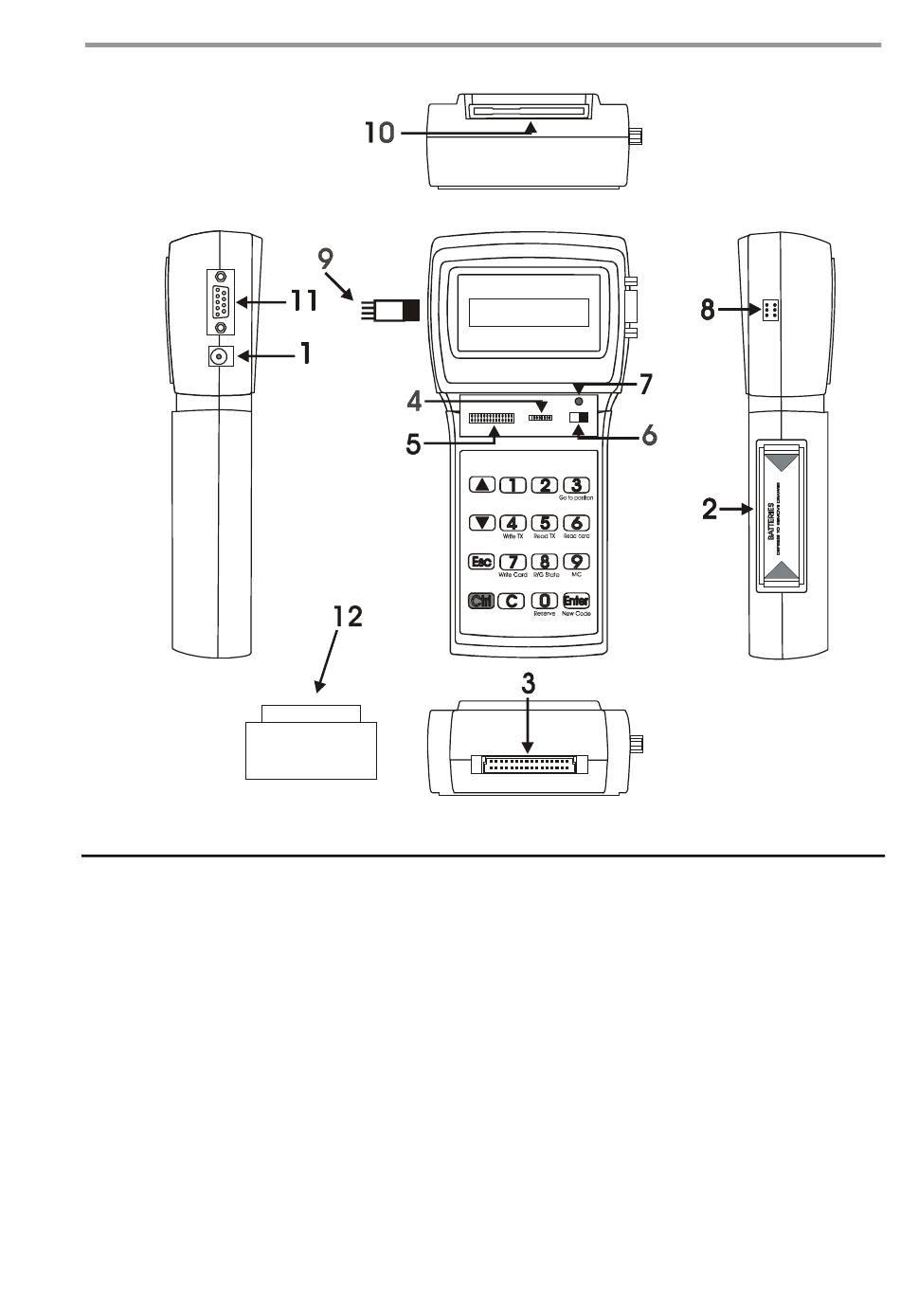

1.2 Descriptive diagram MANAGER+DCS

1. External power supply 9V –DC (the interior pin is the negative)
2. Battery housing 4 x 1.5V
3. Installation memory cartridge connector
4. Receiver and Mini-A.C. memory card connection
5. Maxi-A.C. memory card connection
6. Power switch
7. Low power indicator LED
8. Transmitter connection
9. Transmitter connection adapter
10. Smartcard connection
11. RS-232 connection to PC
12. Portable Programmer memory cartridge
