1.3 Descriptive diagram of the Proximity Key Interface
The proximity system allows the transmission of data between the MANAGER+DCS
Interface and the proximity key to take place with no physical contact: simply place
the key some 4 cm. from the Interface zone indicated with a serigraph.
Each proximity key has a personal code, which can be reprogrammed by using a
Portable Programmer MANAGER+DCS. The key is highly attractive, very small and
can be carried as a key ring. In addition, it is very inexpensive to maintain and does
not use batteries.
1.3.1

Technical characteristics

General Data
Reading system
Working distance
Housing
Technical Data
Power supply
Idle/working consumption
Oscillation frequency
Working temperature range
(*) Owing to the Interface's high consumption, we recommend that if extensive work
is needed with it, connect the MANAGER+DCS to the mains supply so as to avoid
shortening battery life.
1.3.2

Diagram connection

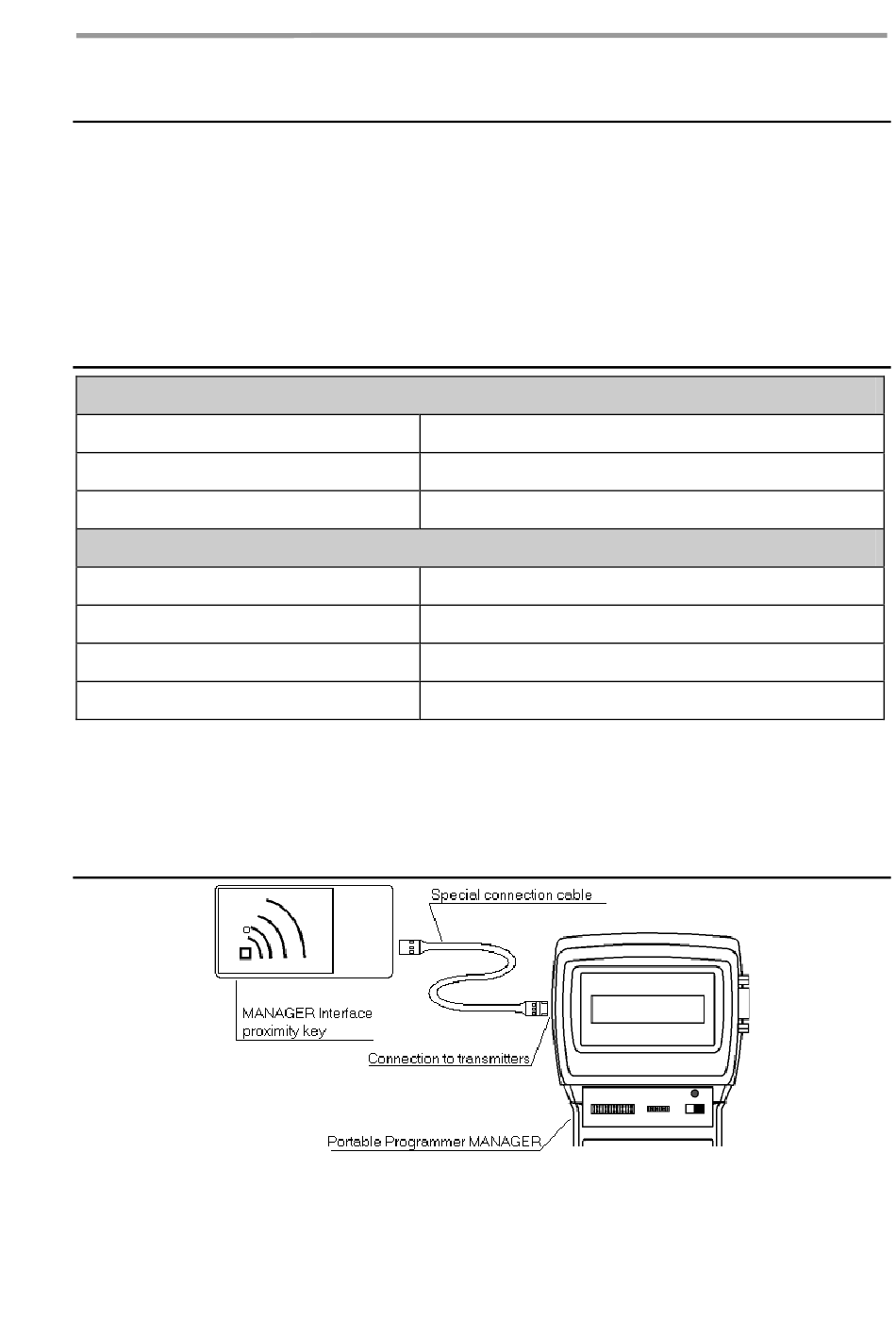

Insert one end of the special connection cable in the connection slot of the
MANAGER+DCS Proximity Key Interface, and the other in the connection for transmitters
of the Portable Programmer MANAGER+DCS (see figure page 6, no. 8 of the
MANAGER+DCS manual).
By proximity
4 cm.
Plastic
Via the Portable Programmer MANAGER+DCS(*)
12 / 53 mA
125 Khz
-20 ºC to + 55 ºC
