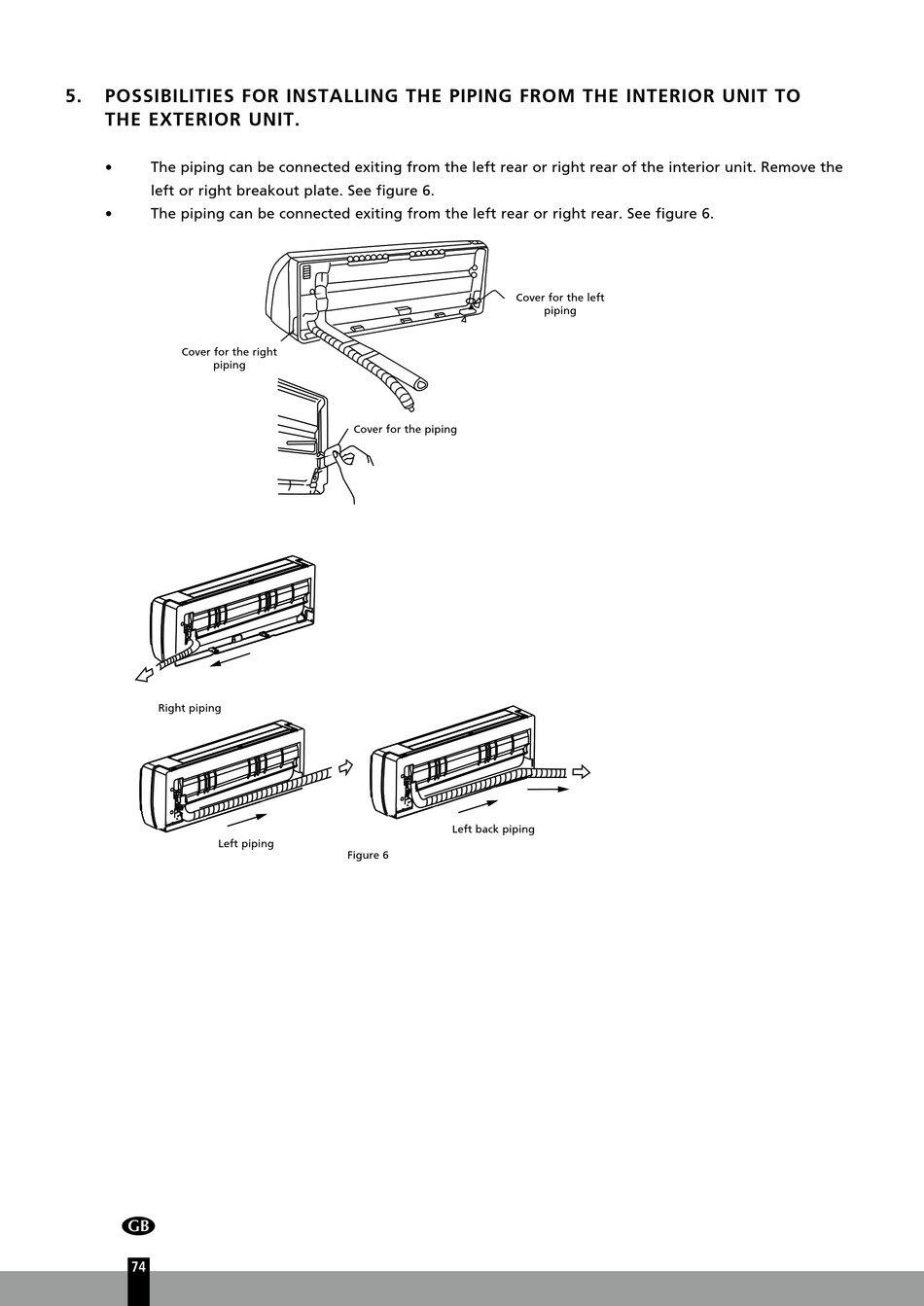

5. POSSIBILITIES FOR INSTALLING THE PIPING FROM THE INTERIOR UNIT TO
THE EXTERIOR UNIT.
• The piping can be connected exiting from the left rear or right rear of the interior unit. Remove the
left or right breakout plate. See figure 6.
• The piping can be connected exiting from the left rear or right rear. See figure 6.
Cover for the right
piping
Right piping
Left piping
4
74 74
Cover for the left
Cover for the piping
Left back piping
Figure 6
piping
